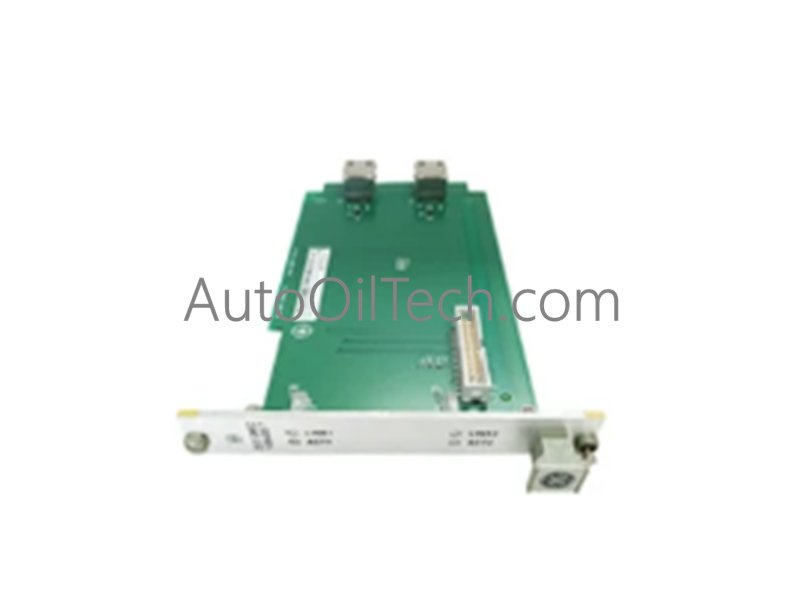

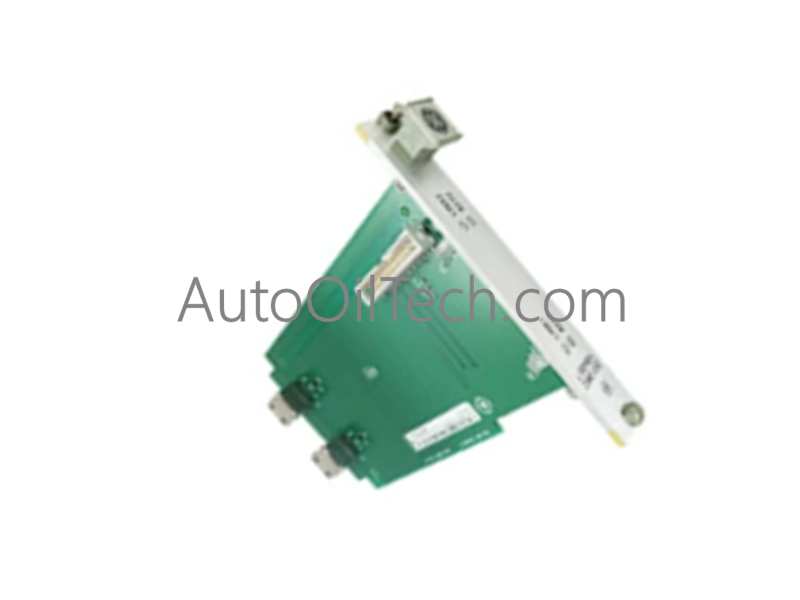

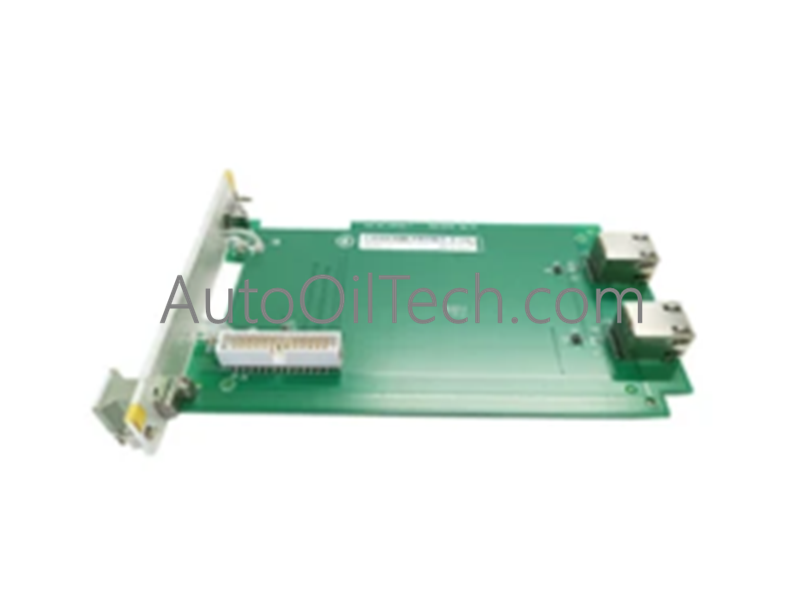

Configured for digital signal control and communication in industrial environments, the GE D20 EM Emodule (D20 EMEmodule Digital I/O Module) provides direct physical and electrical execution across D20 series rack assemblies.
Hardware Specifications
Parameter
Specification
Model
D20 EME
Brand
GE
Origin
USA / Global Manufacturing Plants
Weight
300 g
Dimensions
110 mm x 60 mm x 35 mm
Operating Temp
-25 deg C to +55 deg C
Power Consumption
Powered via system backplane and external loops
Digital Inputs
16 channels (dry contact, 24 VDC input level)
Digital Outputs
16 channels (dry contact, 24 VDC output level, 2 A maximum current)
Communication Interface
10BASE-T Ethernet supporting Modbus RTU protocol
Environmental Range
5% to 95% RH non-condensing; Storage Temp: -40 deg C to +70 deg C
Firmware Flash Compatibility and Deterministic Networks
Operating within industrial control rack assemblies, the module maintains deterministic network communication velocities across 10BASE-T Ethernet links. Firmware flash compatibility and hardware revision alignment ensure that Modbus RTU protocol commands execute without packet loss or interface latency. Internal signal isolation circuitry protects control logic from external transients while maintaining high-speed digital state tracking across all 16 input and output channels.
Frequently Asked Questions
Q: What channel capacities are supported for digital inputs and outputs on the D20 EMEmodule?
A: The module supports 16 digital input channels and 16 digital output channels, both utilizing dry contact configurations at 24 VDC.
Q: What network interface and communication protocol does the hardware utilize?
A: It utilizes a 10BASE-T Ethernet communication interface supporting the Modbus RTU protocol for straightforward system integration.
Q: What is the maximum current rating for the digital output circuits?
A: The digital outputs are rated for a maximum current of 2 A per circuit.
Field Installation Guidelines
Ensure external power supplies are completely de-energized before connecting field wiring to the digital input and output terminals. Mount the module securely onto a standard DIN-rail or flat panel surface, maintaining adequate spacing for thermal dissipation within the operating temperature range of -25 deg C to +55 deg C. Verify proper shielding and termination of the 10BASE-T Ethernet cable to prevent electromagnetic interference in harsh industrial installations.
