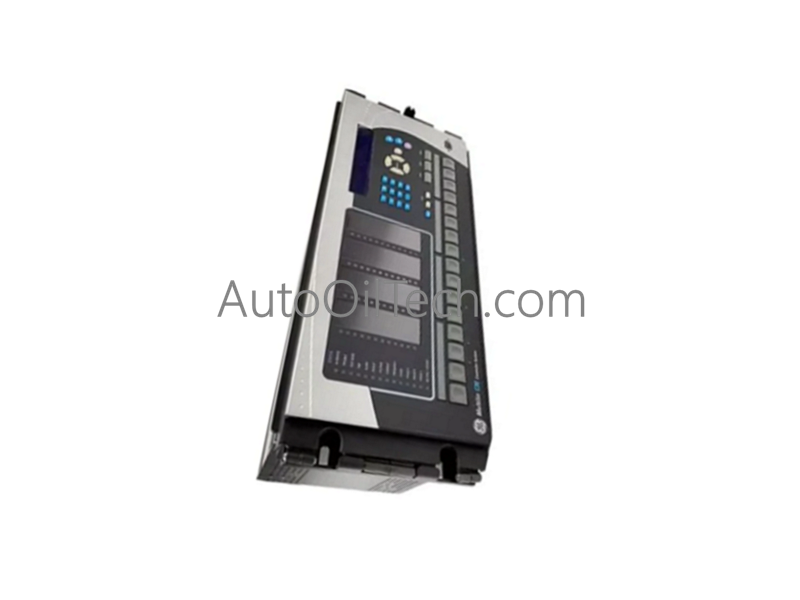

GE C30-K03-HKH-F6D-H6D-M67-P6C-U5F-W6T Automation Controller Modules

The GE C30-K03-HKH-F6D-H6D-M67-P6C-U5F-W6T, also cataloged as the C30 Substation Automation Controller, operates as a dedicated hardware component for comprehensive protection and advanced control logic within GE Multilin UR Series platforms. It interfaces terminal telemetry across power networks natively at the protective relay tier to maintain real-time substation monitoring parallel to master processing bus execution cycles.

Hardware Specifications

Industrial Control & Drive Processing Architecture

• Profinet / EtherNet/IP Deterministic Networks and Substation Protocols: The C30 controller features multi-protocol network capabilities, running high-speed communications across IEC 61850, DNP3, and Ethernet/IP structures simultaneously. It processes Goose messages and real-time network packets within dedicated sub-millisecond task windows, matching command registration across utility automation nodes.
• I/O Density Scaling and Modular Slot Assignment: The chassis uses modular architecture to accommodate distinct analog and digital I/O expansion modules. Field instrumentation lines are grouped into separate slots, allowing density scaling that coordinates status flags from external breakers, transformers, and switchgear directly into the internal control matrix.
• Firmware Flash Compatibility and Core Protection Retention: Internal non-volatile flash memory contains the operating system and user-defined logic equations for overcurrent and differential safety calculations. Protective settings and firmware flash compatibility frameworks ensure execution registers remain steady during network updates, safeguarding critical tripping matrices from data loss.

Frequently Asked Questions

Q: What specific hardware behaviors manifest if the auxiliary supply voltage drops below the 90 VDC or 90 VAC threshold?

A: The internal power supply monitoring module asserts an undervoltage alarm register bit and alters the status LED matrix. If the voltage drops past the minimum operational cutoff, the unit initiates an orderly shutdown sequence, forcing all protective output contacts to their fail-safe de-energized positions while preserving fault logs in flash memory.

Q: Can the internal communication or I/O modules be removed from the UR chassis while the main station power supply is live?

A: No. The UR series internal module backplane does not accommodate hot-swapping or active live extraction. Pulling a component while the chassis is powered can generate transient voltage arcs across the internal pin fields, risking severe damage to the core processing unit and interrupting parallel automation tracking.
