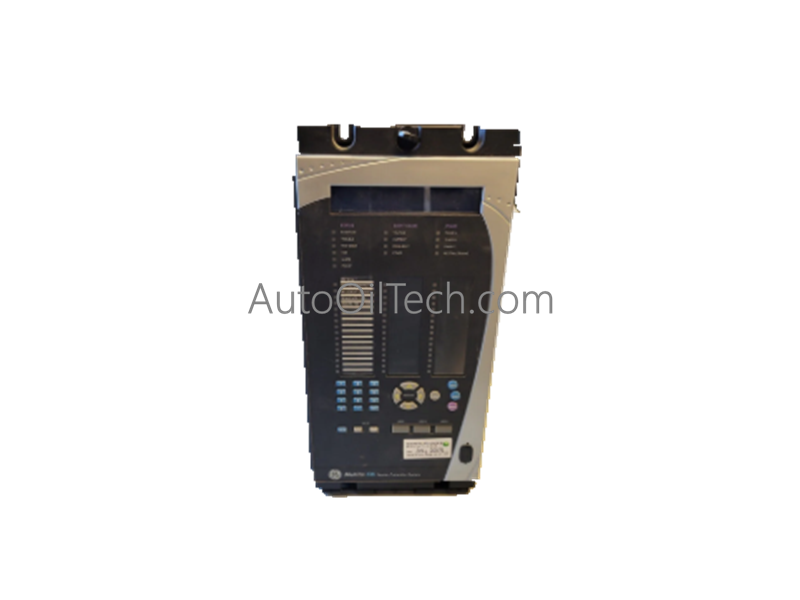

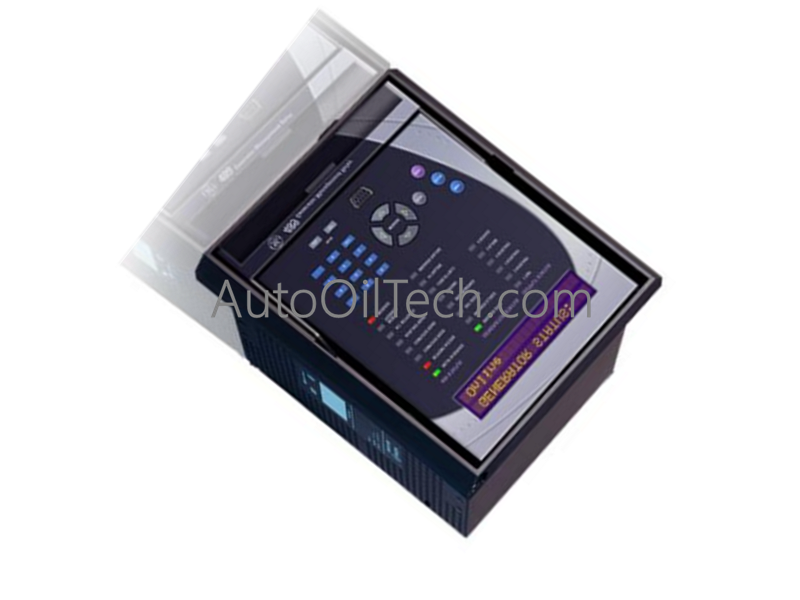

GE 489-P5-LO-A20-E Generator Management Relay

The GE Multilin 489-P5-LO-A20-E, also cataloged as the 489-P5-LO-A20-E Generator Management Relay, operates as a dedicated hardware component for generator protection and monitoring execution within induction and synchronous generator systems.

Hardware Specifications

Power Protection Matrix and Signal Execution

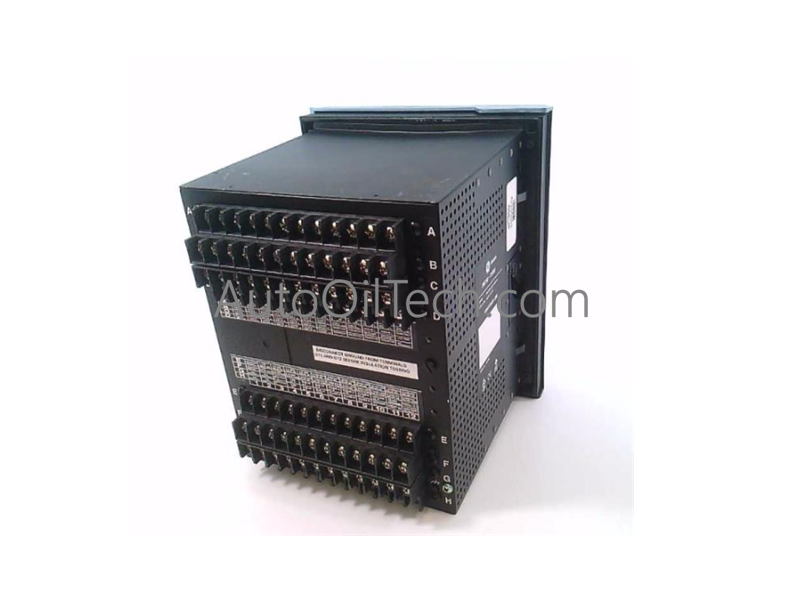

• Analog and Transducer Measurement Array The rear termination plane integrates twelve field-programmable RTD inputs alongside four isolated 4-20 mA analog inputs and four matching 4-20 mA outputs. These channels gather auxiliary thermal and mechanical data parameters while seven Current Transformer (CT) inputs execute three-phase, neutral, and ground current sensing loops.
• Communication and Time Synchronization Logic The hardware framework includes two RS485 peripheral communication ports operating up to 19200 bps and an independent front-panel RS232 engineering station link. The platform executes ModbusRTU and DNP 3.0 protocols with programmable parity (None, Odd, Even) while accepting IRIG-B amplitude-modulated signals at 2.5 to 6.0 Vpk-pk for clock synchronization.
• Protection Elements and Control Output Relays High-set phase overcurrent elements generate direct trip signals paired with voltage restraint features using fixed programmable characteristics. The execution logic controls six onboard output relays and incorporates tachometer functions assignable to digital inputs 4 through 7, while managing low forward power delays from 0.2 to 120.0 seconds.

Frequently Asked Questions

Q: How do the digital and analog inputs maintain operation under high electrical noise levels?

A: All integrated back-panel inputs conform to Surge Withstand Capability (SWC) and C37.990 EMI/RFI interference immunity specifications. The module layout routes these input networks through an independent, dedicated safety and filter ground grid that diverts transient high-frequency ambient noise away from the logic boards.

Q: Is a connected engineering terminal required to modify active setpoint values?

A: No. The integrated user interface permits standalone device management via a front-panel numeric keypad and a 40-character display layer. Operators can navigate submenus, adjust timing values, and input local configurations using the dedicated menu keys without attaching an external computer.
