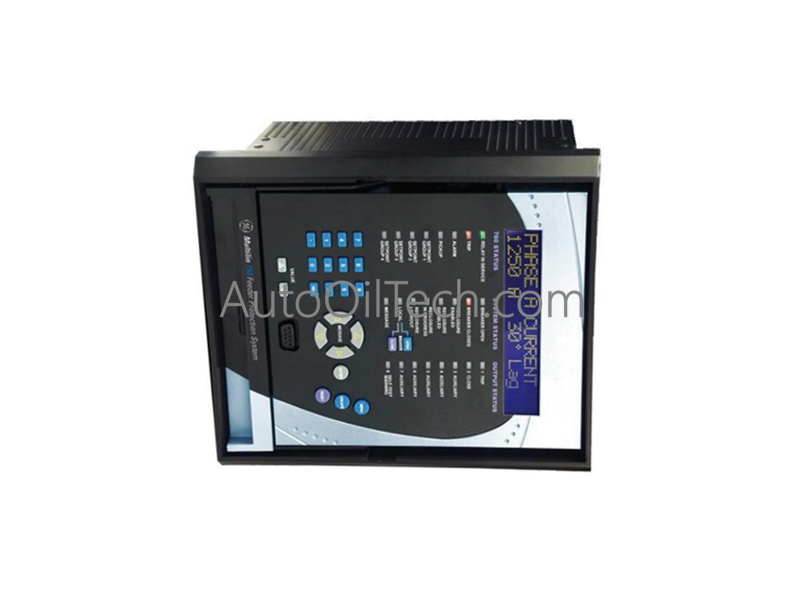

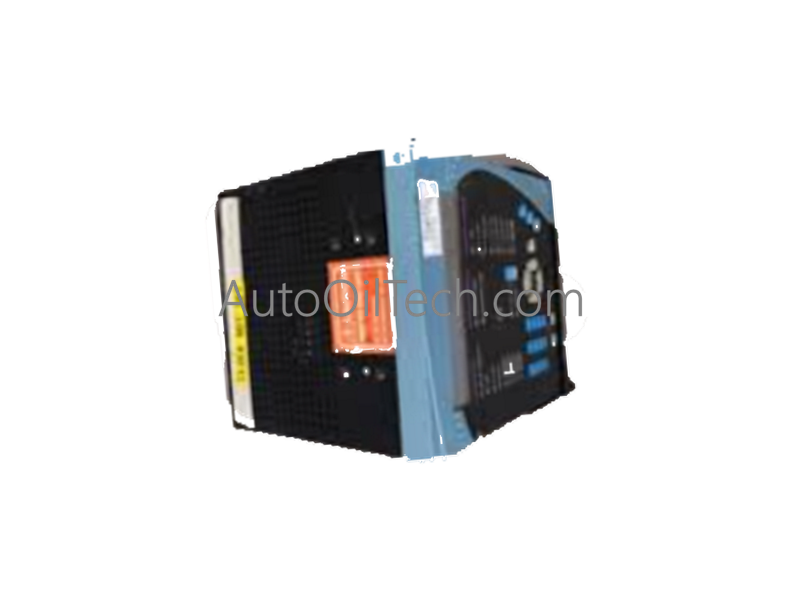

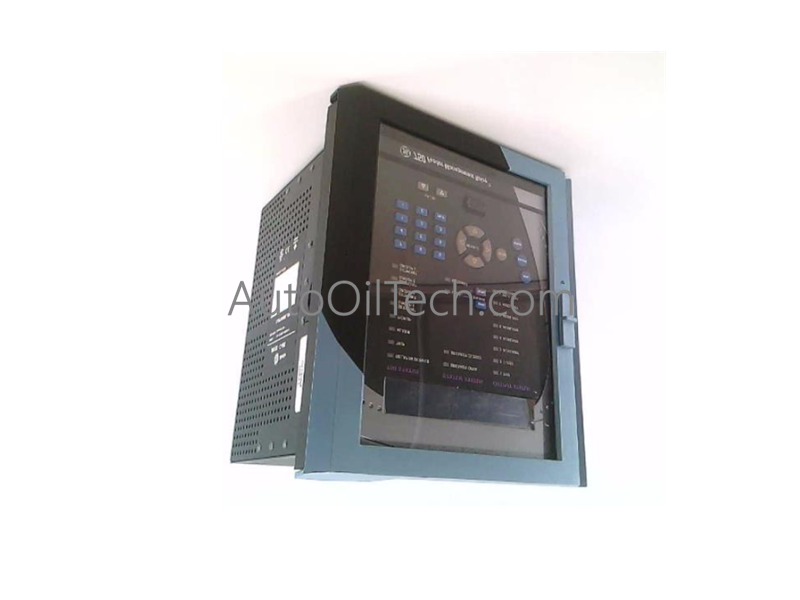

GE 489-P5-HI-A20E Generator Management Relay Module

The GE Multilin 489-P5-HI-A20E, also cataloged as the 489-P5-HI-A20-E Generator Management Relay, serves as the primary 489 Generator Management Relay utilized to execute generator protection, control, and monitoring sequences across induction and synchronous generator networks.

Hardware Specifications

Power Protection Matrix and Signal Execution

• Comprehensive Protective Logic The microprocessor-driven architecture provides built-in trip and alarm mechanisms, including inadvertent energization tracking (operating with no intentional time delay), trip coil supervision, breaker failure detection, and VT fuse failure monitoring. Thermal analytics evaluate field-programmable RTD elements 1 through 12 to trigger synchronized alarm and trip parameters.
• Advanced Waveform and Frequency Analytics The internal digital signal processing engine monitors electrical profiles at a refined level, establishing a 3rd harmonic timing accuracy of plus or minus 3.0 seconds. It maps grid fluctuations against multiple programmable undervoltage curve shapes to isolate distribution disturbances before they cross critical generator rotor or stator operating limits.
• Simulation and Local Programming An on-board flash memory framework retains configuration profiles, historical event logs, and oscillography data. Operators interface with the hardware using EnerVista 489PC Software for remote computer programming, while the front panel’s large enhanced LCD and integrated numeric keypad enable immediate standalone configuration editing via interactive help menus.

Frequently Asked Questions

Q: What distinct operational benefits does the E modifier offer over basic 489 display variants?

A: The "E" suffix designates an Enhanced Display interface featuring a significantly larger LCD panel layout. This upgrade enhances local diagnostics by rendering simultaneous line parameters and actual value messages clearly, accelerating fault isolation routines directly from the front panel.

Q: How do the current inputs scale if a 1 A current transformer secondary is wired to the P5 terminals?

A: The 489-P5-HI-A20E is hardware-calibrated specifically for 5 A phase CT secondaries. Connecting a 1 A transformer secondary will result in underscaled monitoring metrics, causing the relay to miscalculate power parameters (displayed as positive watts for generation) and fail to cross programmed overcurrent pickup trip thresholds.
