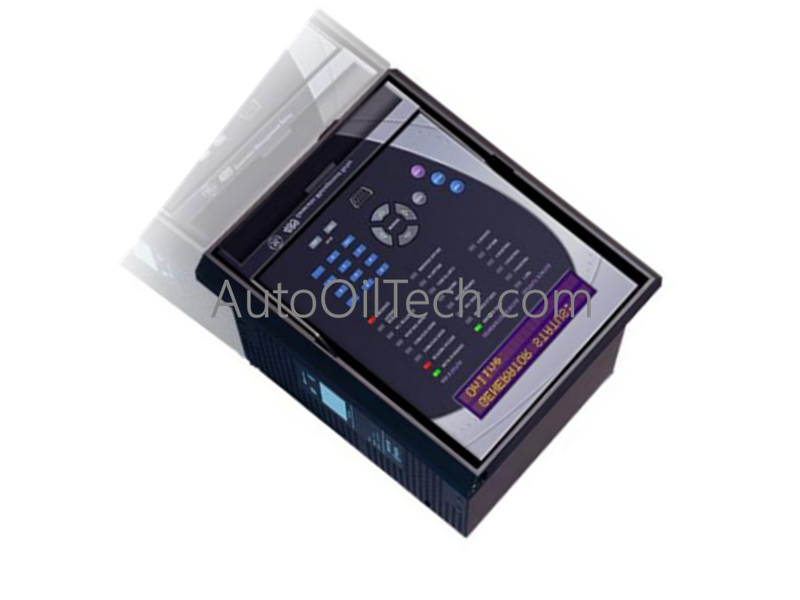

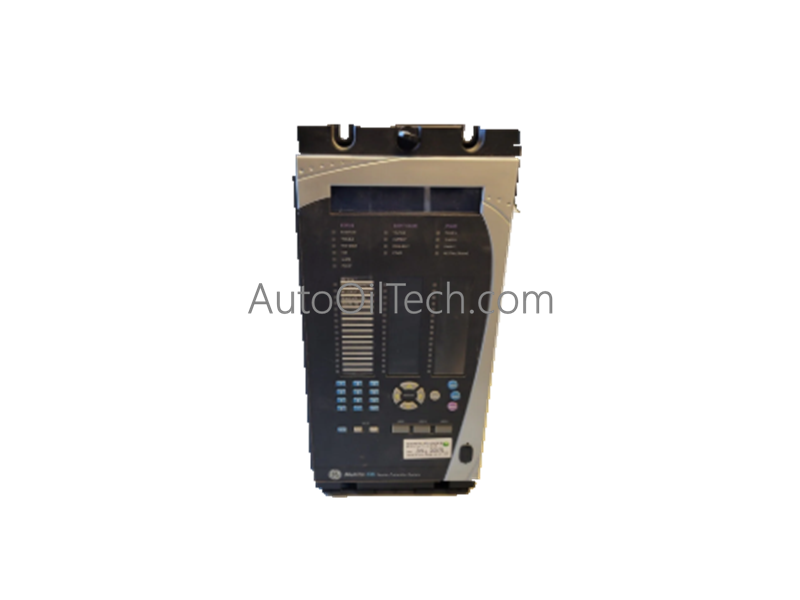

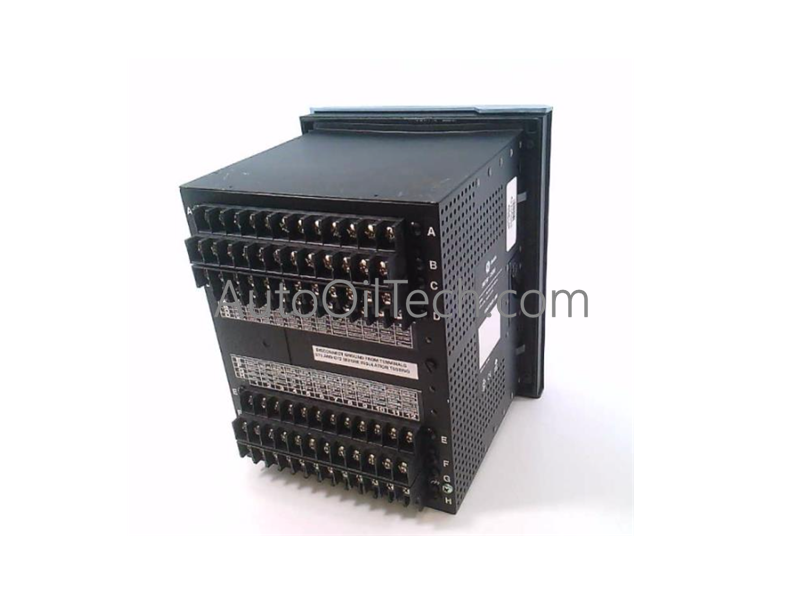

GE 489-P5-HI-A20-E Management Relay

The GE Multilin 489-P5-HI-A20-E, also cataloged as the 489-P5-HI-A20-E Generator Management Relay, serves as the primary 489 Generator Management Relay utilized to execute generator protection and monitoring sequences across induction and synchronous generator networks.

Hardware Specifications

Power Protection Matrix and Signal Execution

• Current Transformer (CT) Interface Scaling The module design incorporates specialized phase sensing circuitry optimized for 5 A current transformer secondary loops. This P5 input hardware layer samples three-phase distribution currents at high resolution, feeding real-time digital signal processing blocks to calculate thermal overload, phase unbalance, and high-set instantaneous overcurrent trip steps.
• High-Voltage Auxiliary Power Supply Isolation Operating under the HI specification, the universal power supply stage accepts a wide electrical envelope spanning 90 to 300 VDC or 70 to 265 VAC at line frequencies of 48 to 62 Hz. Internal transformer windings isolate active digital logic components from incoming line transients, maintaining a steady DC voltage rail during sudden plant grid disruptions.
• Analog Loop Generation and User Interface Control The hardware incorporates dedicated 4 - 20 mA analog drivers that convert vital generator parameters into active current loops for remote telemetry or SCADA interfaces. Local manipulation is handled via the E-suffixed interface assembly, which utilizes a larger LCD module and a reinforced keypad matrix to modify internal protection settings without a separate terminal PC.

Frequently Asked Questions

Q: How do the P5 5 A CT inputs impact external sensor selection versus 1 A modules?

A: The 489-P5-HI-A20-E requires matching current transformers calibrated for a 5 A secondary output rating at full nominal load. Using 1 A secondary current transformers on this hardware will result in severely underscaled current readings, preventing the relay from detecting true overcurrent or fault conditions.

Q: What protection protocols are available if the local LCD interface loses power or malfunctions?

A: The display and keypad array function independently from the internal protective relay core. If the enhanced display module goes offline, the underlying microprocessors continue to monitor current inputs, process fault logic, and trigger the physical output relays within standard timing parameters.
