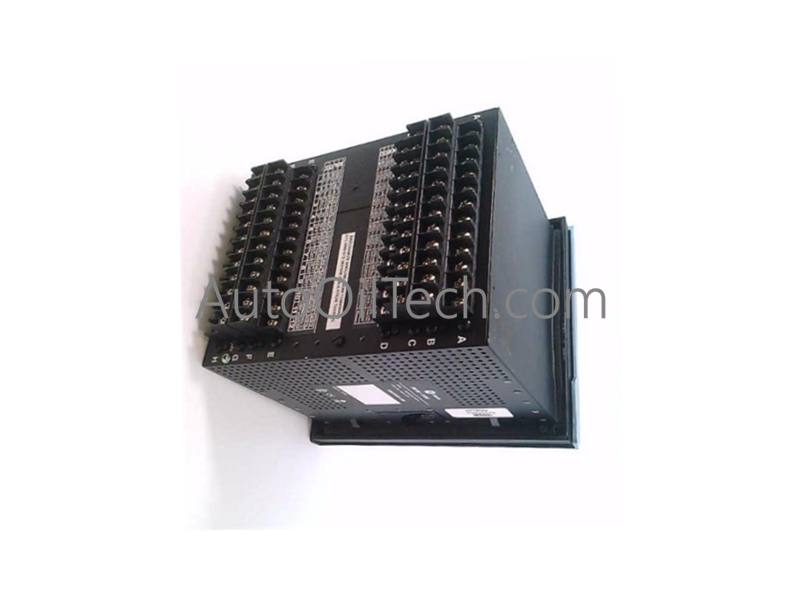

GE 489-P5-HI-A20-E-H Generator Management Relay

The GE Multilin 489-P5-HI-A20-E-H, also cataloged as the 489 Generator Management Relay, operates as a dedicated hardware component for comprehensive protection, metering, and monitoring within industrial and utility generator control loops. This microprocessor-based platform samples line metrics and sensor inputs, executing dynamic thermal modeling curves and phase distance protection algorithms to isolate connected generator assets during electrical, thermal, or mechanical faults.

Hardware Specifications

Backplane Bus Communication Velocity and Processing

The generator protection assembly integrates high-speed processing components to coordinate multi-variable calculations across its internal backplane bus. Enforcing strict firmware flash compatibility standards across all sensor and logic interfaces allows the processing core to dynamically recalculate the thermal model curve using variable bias parameters—including phase unbalance, hot/cold curve ratios, stator RTD inputs, line voltage, and operational cooling rates. The processing array resolves offset mho phase distance characteristics and negative sequence overcurrent levels down to microsecond increments, enabling rapid fault discrimination and real-time synchrophasor streaming to external automation nodes without bus latency or transmission bottlenecks.

Frequently Asked Questions

Q: How does the "H" suffix configuration affect the physical build of the 489-P5-HI-A20-E-H relay?

A: The "H" designation indicates that a specialized chemical conformal coating is applied across all internal printed circuit board (PCB) layouts. This layer contours to the surface components, sealing the traces against atmospheric moisture, chemical contaminants, and conductive dust found in harsh environments.

Q: How does the drawout case mechanism manage current transformer connections during maintenance extraction?

A: The chassis features a fully drawout mechanical design with integrated automatic shorting bars. When the relay is pulled forward out of its case for testing or maintenance, the backplane shorting contacts automatically bridge the current transformer (CT) secondary circuits before they can open-circuit, preventing hazardous high-voltage spikes across the CT lines.

Q: Does the 489-P5-HI-A20-E-H feature internal grounding paths for its ground fault current sensing circuit?

A: No. The relay does not use internal grounding linkages for its current sensing loops. It incorporates a dual isolating transformer configuration at the ground current transformer (CT) connection points, requiring external physical grounding connections to be established at the rear terminal blocks during field commissioning.
