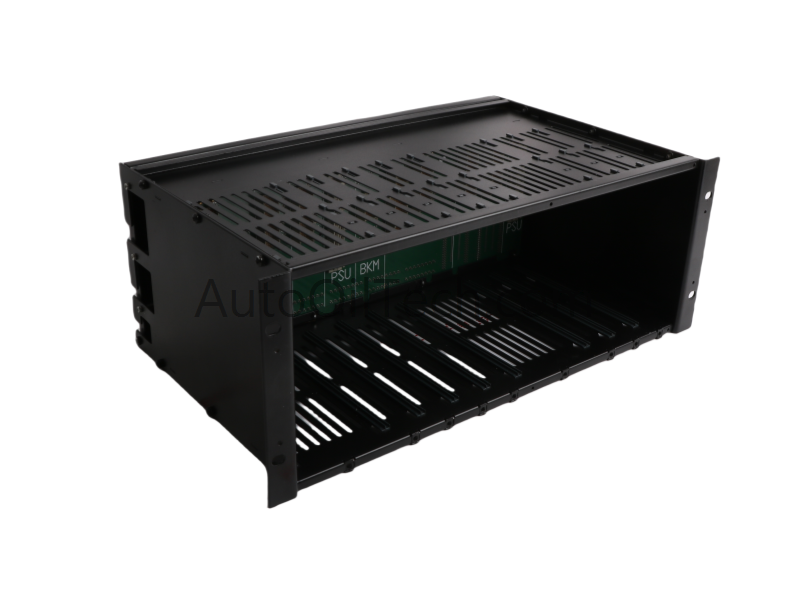

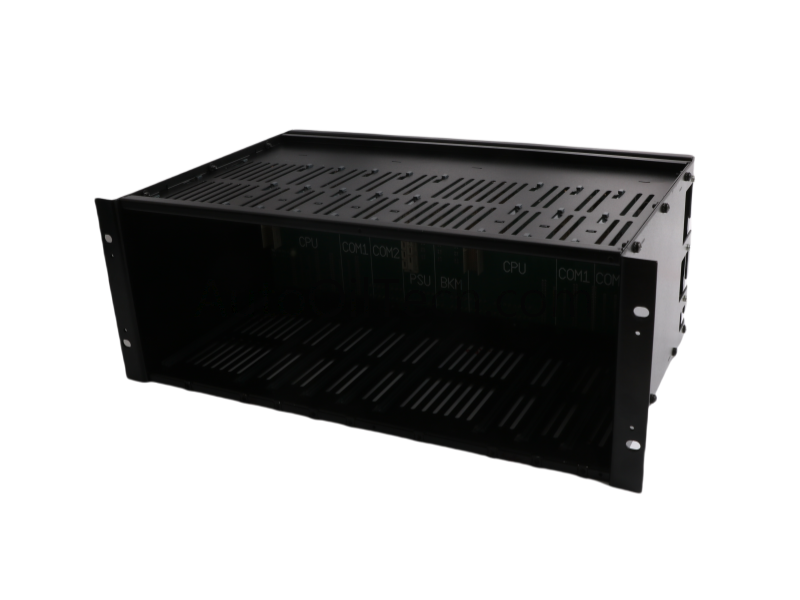

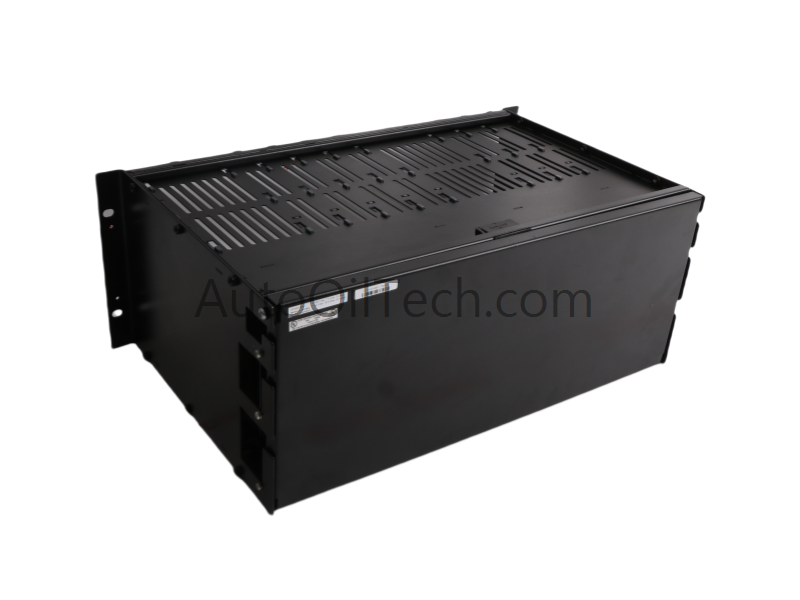

The Honeywell FS-CPCHAS-0001, also cataloged as the FS-CPCHAS-0001 Chassis for Control Processor, provides mechanical housing and electrical backplane connectivity for processor modules within Honeywell control systems.
Hardware Specifications
Parameter
Specification
Model
FS-CPCHAS-0001
Brand
Honeywell
Origin
Not specified
Weight
5.8 Kg
Shipping Weight
8 Kg
Dimensions
28 cm × 48.26 cm × 17.7 cm
Operating Temp
Not specified
Power Consumption
5V-1: 0.05 A, 5V-2: 0.05 A
Product Type
Chassis for Control Processor
Approvals
CE, UL, CSA, TUV, FM
Estimated Lead Time
4–6 weeks
4-20 mA HART Loop Protocol
The FS-CPCHAS-0001 chassis supports integration with Honeywell distributed control systems, ensuring stable backplane connectivity. Its design maintains compatibility with instrumentation networks utilizing 4-20 mA HART loop protocol, while providing channel isolation and reliable power distribution across processor modules.
Frequently Asked Questions (FAQ)
Q: Can the FS-CPCHAS-0001 chassis support redundant processor modules? A: Yes, the chassis is designed to host multiple processor modules with redundant configurations.
Q: What precautions are required for power connections? A: Ensure both 5V supply lines are connected and verified to maintain stable operation.
Q: Is hot-swap supported for processor modules in this chassis? A: No, modules must be inserted or removed with system power down to avoid backplane disruption.
Field Installation Guidelines
Mount the FS-CPCHAS-0001 securely in the designated cabinet with full mechanical engagement.
Connect power lines according to Honeywell wiring standards, ensuring proper polarity and grounding.
Maintain separation between signal cabling and high-voltage wiring to minimize electromagnetic interference.
Verify module seating and locking mechanisms before energizing the system.
Conduct functional checks of processor communication paths during commissioning.
