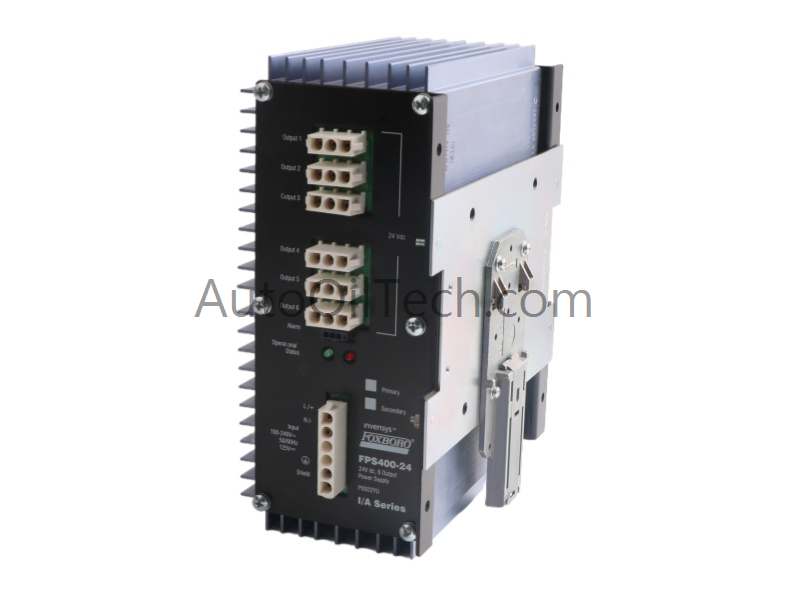

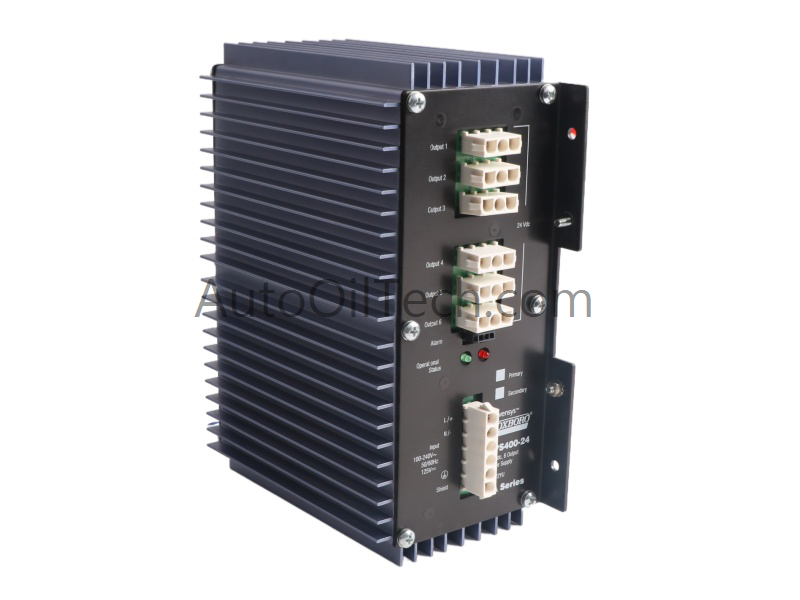

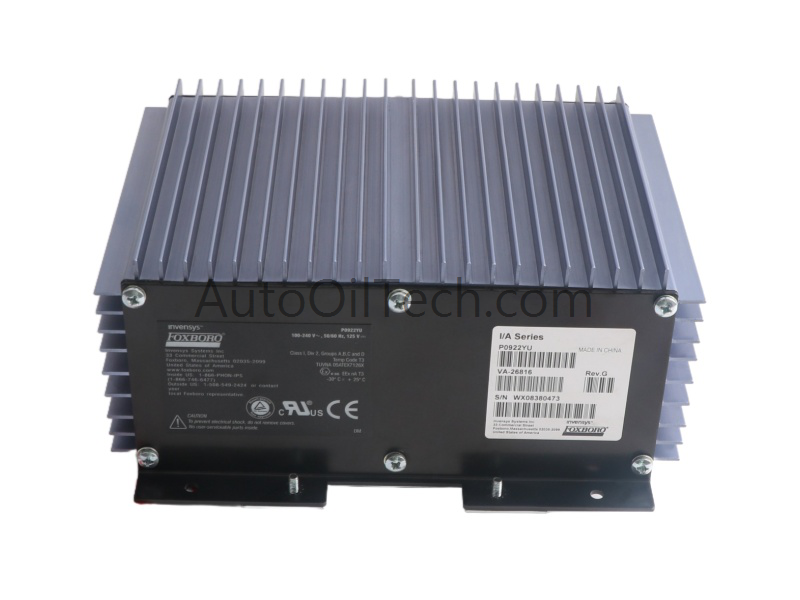

The P0922YU FPS400-24 DIN Rail Mounted Power Supply from Foxboro is part of the I/A Series DCS system. It delivers 400 W of regulated 24 V DC power to standard 200 Series baseplates, ensuring reliable operation in demanding industrial environments. Certified for Division 2 and Zone 2 hazardous areas, it combines efficiency, safety, and rugged construction for global applications.
Technical Specifications
Parameter
Value
Model Number
P0922YU FPS400-24
Manufacturer
Foxboro
Module Type
DIN Rail Mounted Power Supply
Series
I/A Series
Condition
Brand New
Dimensions
4.5 × 11.5 × 11.5 cm
Weight
0.3 kg
Output Power
400 W
Output Voltage
24 V DC
Input Voltage
120/240 V AC or 125 V DC
Efficiency
High efficiency with power factor correction
Protection Features
Dual-stage current limiting, overvoltage shutdown, transformer-isolated output
Alarm Output
Relay (form C) status alarm
Cooling
Convection (fanless)
Enclosure
Gasketed, sealed housing
Operating Environment
G3 harsh environment rating
Certifications
UL®, UL-C, CSA, ATEX, IECEx, CENELEC
HS Code
8537101190
Origin
USA
MOQ
1
Lead Time
In Stock
Functional Highlights
The P0922YU FPS400-24 integrates advanced safety features including dual-stage current limiting and overvoltage shutdown. Its convection cooling design eliminates the need for fans, reducing maintenance requirements. With flexible DIN rail or bracket mounting options, it ensures easy installation. Certified for hazardous environments, it is the only power supply tested and qualified by Foxboro for use with 200 Series FBMs.
Applications and Compatibility
Designed for Foxboro I/A Series DCS systems.
Ideal for powering 200 Series FBMs and external field devices.
Suitable for hazardous environments with CSA, ATEX, IECEx, UL®, and CENELEC compliance.
Compatible with global installations requiring flexible AC/DC input ranges.
Used in oil & gas, power generation, chemical processing, and heavy industrial automation.
