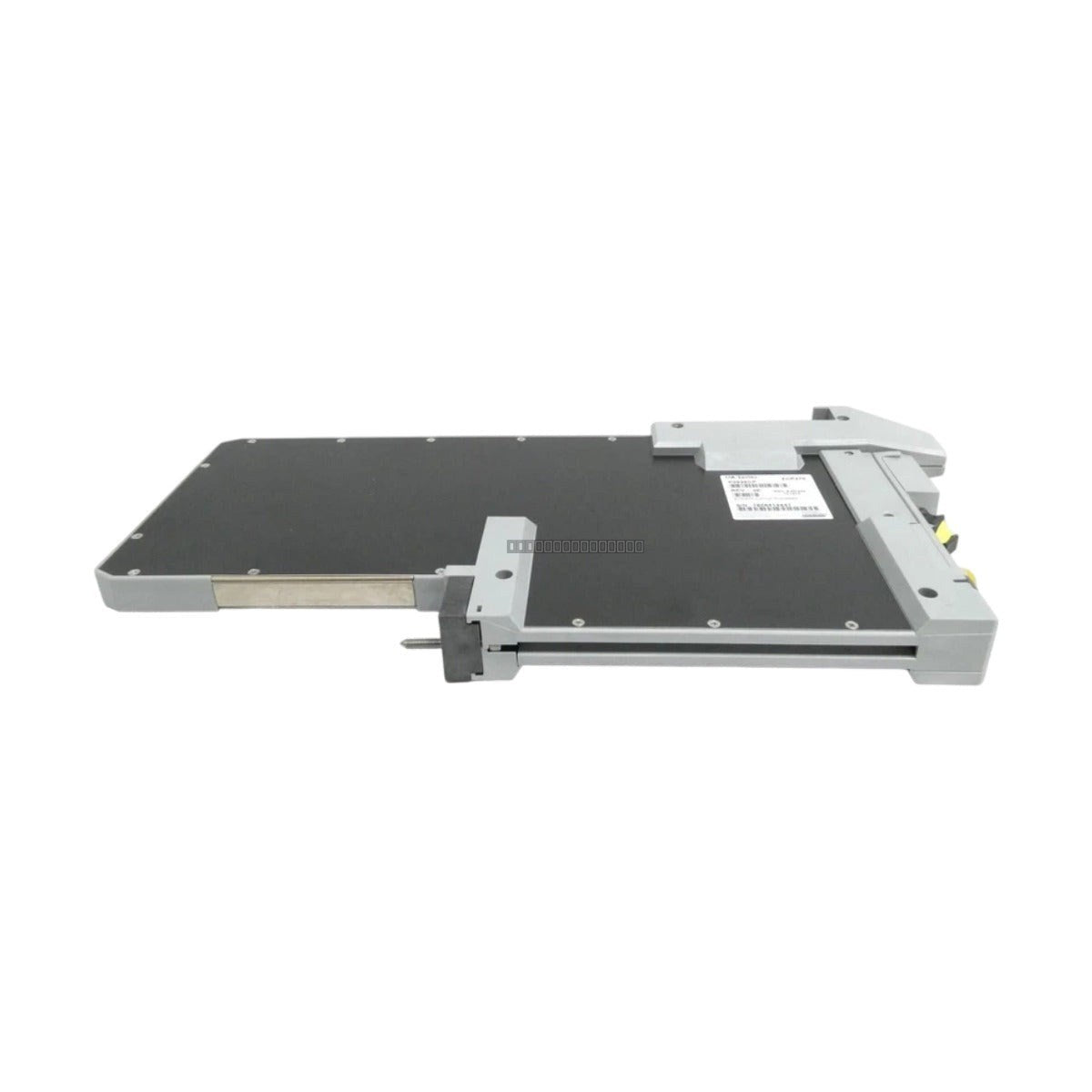

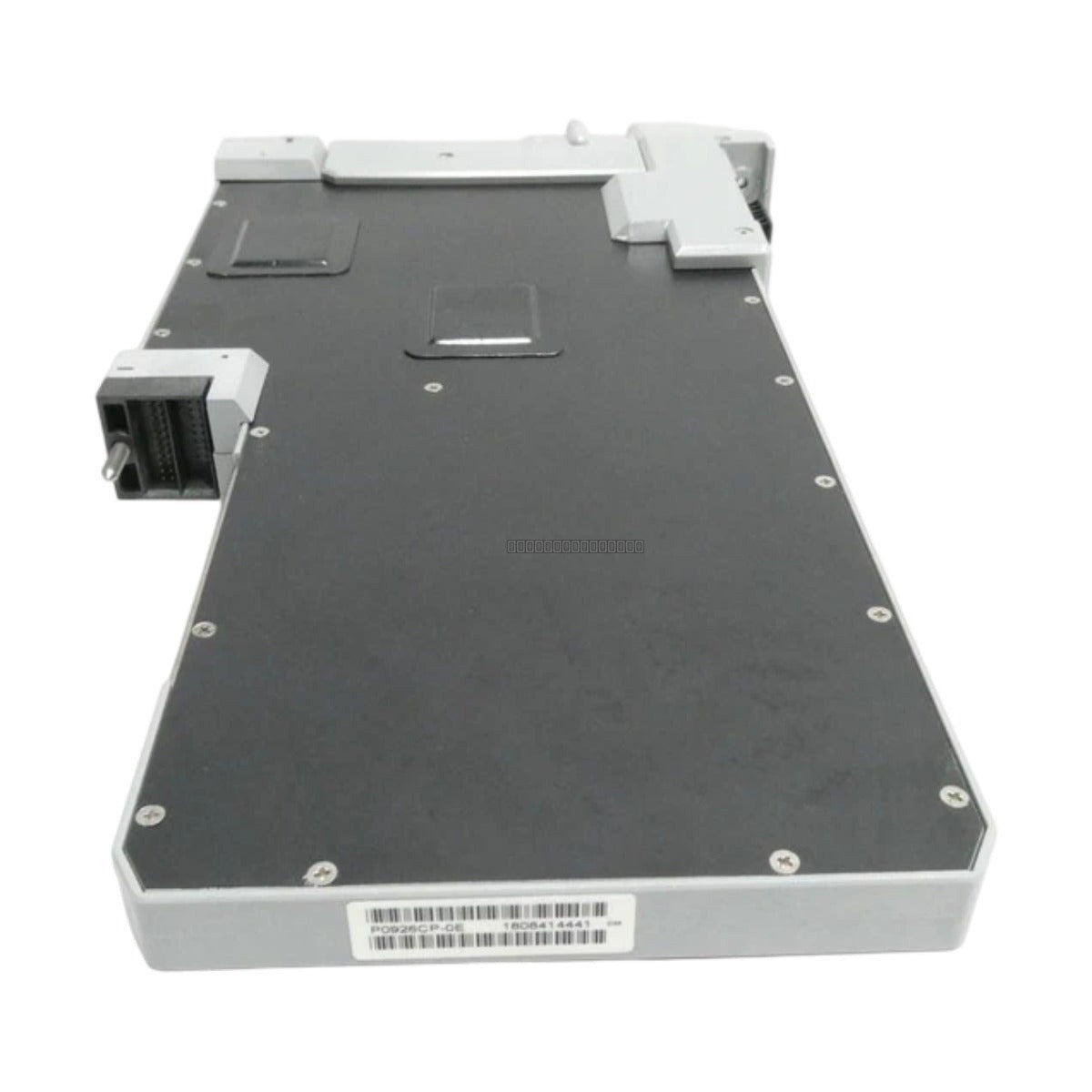

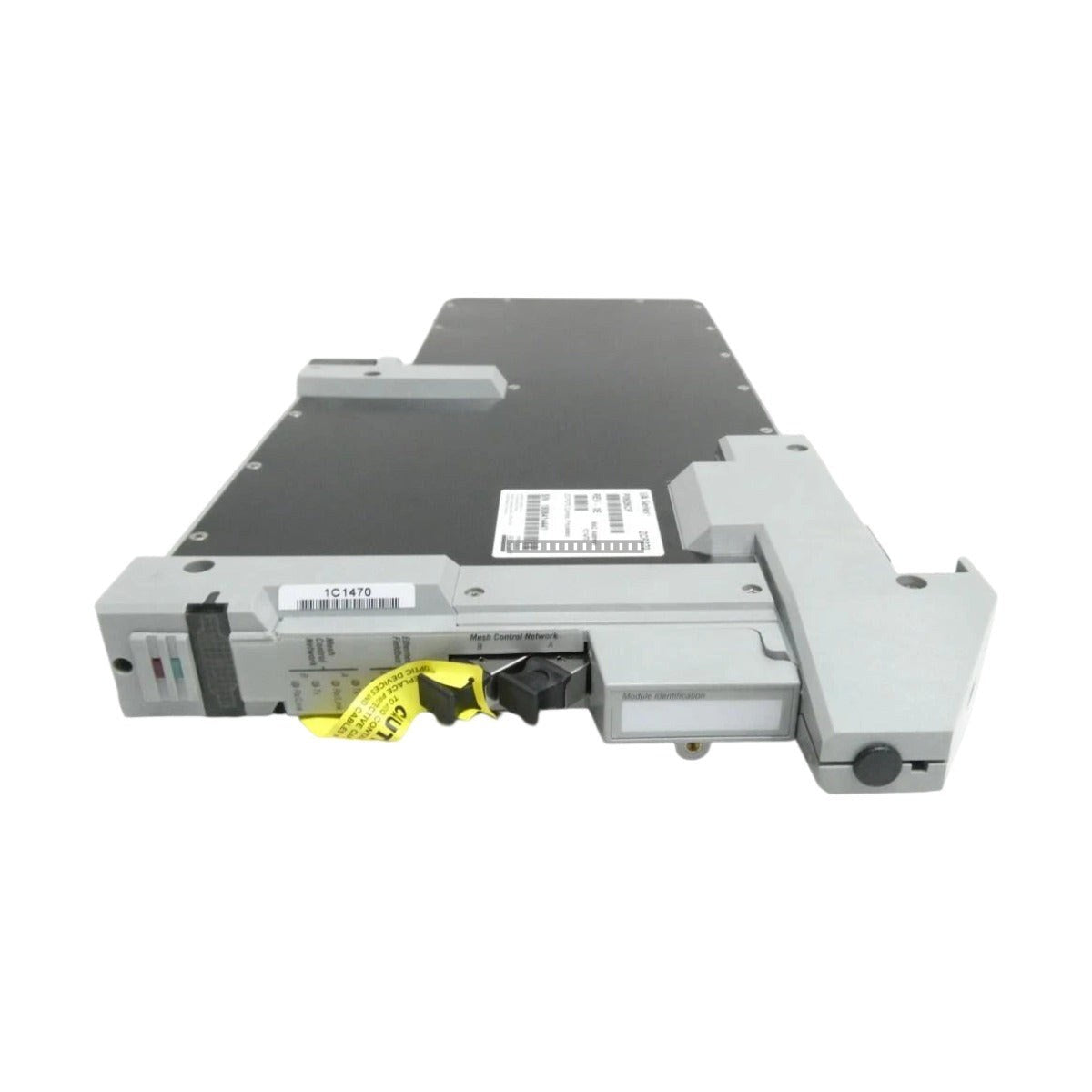

The Foxboro ZCP270 is a high-performance, fault-tolerant control processor engineered for the I/A Series Distributed Control System (DCS). Designed for demanding industrial environments such as petrochemical refining, power generation, and large-scale manufacturing, this module serves as a central intelligence unit for complex control strategies. It utilizes a high-speed RISC architecture to manage thousands of software blocks with low latency, ensuring process stability and high availability.
Features
High-speed RISC processor for real-time deterministic control.
Supports both non-redundant and fully redundant configurations with bumpless failover.
Integrated 100 Mbps network interface for seamless communication via The Mesh.
Fanless design to enhance reliability and increase Mean Time Between Failures (MTBF).
Advanced self-diagnostics for proactive system health monitoring.
Supports high-density I/O integration via Fieldbus Communications Modules (FCMs).
Applications
The ZCP270 is ideal for critical process control applications requiring high reliability, including:
Petrochemical and chemical processing plants.
Base metal mining and mineral processing.
Utility-scale power generation and distribution.
Large-scale continuous process automation.
Technical Specifications
Brand
Foxboro (Invensys / Schneider Electric)
Model
ZCP270
Series
I/A Series
Processor
High-speed RISC
Memory
128 MB SDRAM, 128 MB Flash
Control Capacity
Up to 10,000 blocks (application dependent)
Network Interface
100 Mbps The Mesh (Ethernet-based)
Input Voltage
24 VDC (Nominal)
Power Consumption
8.5 W
Operating Temperature
0 to 60 deg C
Storage Temperature
-40 to 70 deg C
Vibration Resistance
5 to 500 Hz
Installation Guidelines
Ensure the control cabinet is properly grounded to prevent EMI interference.
The module should be installed in a clean, dry environment within the specified temperature range.
Always power down the rack before inserting or removing the ZCP270 module to prevent electrical damage.
Ensure proper airflow around the module; although fanless, adequate ventilation is required for heat dissipation.
Use shielded cabling for network connections to maintain signal integrity on The Mesh.
Handle with standard ESD precautions to protect internal circuitry.
FAQ
Is the ZCP270 compatible with redundant configurations?
Yes, the ZCP270 supports both non-redundant and fully redundant hardware setups. In a redundant pair, the modules perform continuous synchronization of the database, allowing for bumpless failover if the primary processor faults.
Does this module require external cooling?
The ZCP270 is designed with a fanless architecture. However, it must be installed in an environment that meets the specified operating temperature range of 0 to 60 deg C to ensure long-term reliability.
