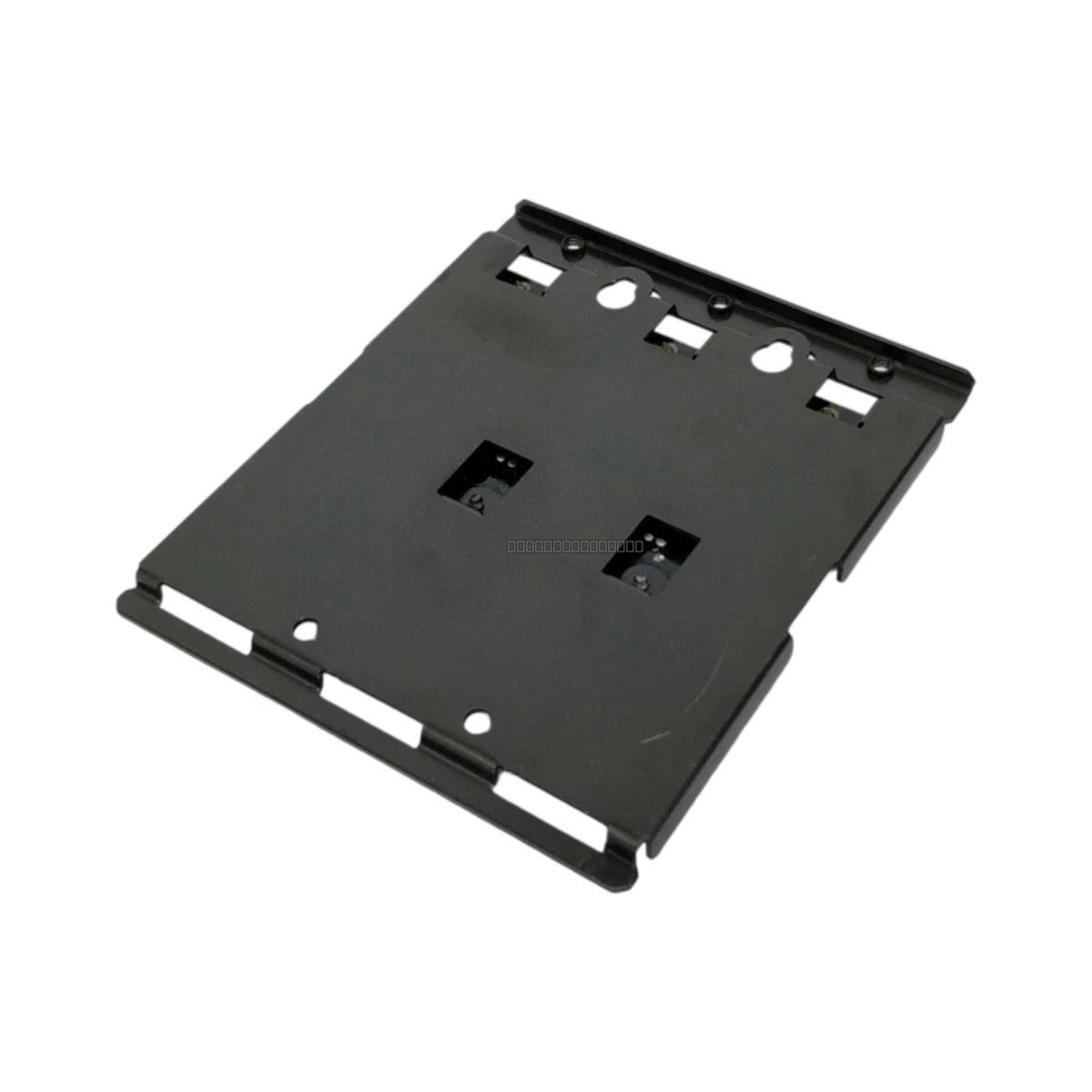

Foxboro PF3S-BP13 I/A Series 13-Slot Baseplate Assembly

Description

The Foxboro PF3S-BP13 is a high-capacity 13-slot industrial baseplate designed to provide the physical and electrical backbone for Foxboro I/A Series control systems. This rugged mounting assembly facilitates the installation of Field Bus Modules (FBMs) and Control Processors, ensuring reliable power distribution and high-speed data interconnectivity. Engineered for heavy-duty applications in oil refineries, chemical plants, and large-scale power generation facilities, the PF3S-BP13 supports mission-critical automation by providing a stable, vibration-resistant platform. By integrating redundant power and communication pathways within the backplane, this baseplate minimizes potential failure points, simplifies field wiring, and significantly reduces maintenance-related downtime in complex process environments.

Features

• 13-slot capacity for high-density I/A Series module management.
• Supports dual-redundant HDLC fieldbus communication for high availability.
• Integrated redundant 24 VDC power distribution bus.
• Robust, vibration-resistant construction for harsh industrial environments.
• Integrated grounding planes and shielding for enhanced EMI protection.
• Standard 19-inch rack-compatible form factor for streamlined integration.

Applications

The PF3S-BP13 baseplate is widely utilized in mission-critical process automation environments, including oil and gas refineries, petrochemical processing, power generation plants, and water treatment facilities. It serves as the primary mounting and communication interface for distributed control systems (DCS) requiring high reliability and modular I/O expansion.

Technical Specifications

Installation Guidelines

• Ensure the mounting surface or rack is properly grounded to the plant earth system before installing the baseplate.
• Always power down the system before inserting or removing any FBM modules to prevent electrical arcing or damage to the backplane connectors.
• Maintain adequate clearance around the baseplate to ensure proper airflow and cooling, adhering to the 0 to 60 deg C operating range.
• Route signal cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Verify that the redundant power supply connections are secure and correctly polarized before energizing the system.
• Handle with care to avoid bending the backplane pins; ensure modules are seated squarely in the slot guides before locking them into place.

FAQ

What is the primary function of the PF3S-BP13?

The PF3S-BP13 acts as the physical and electrical foundation for Foxboro I/A Series modules, providing the necessary power and communication bus connectivity required for field bus modules and control processors to operate within a DCS architecture.

Is this baseplate compatible with standard racks?

Yes, the PF3S-BP13 is designed to be compatible with standard 19-inch industrial racks, facilitating easy installation in existing control cabinets.
