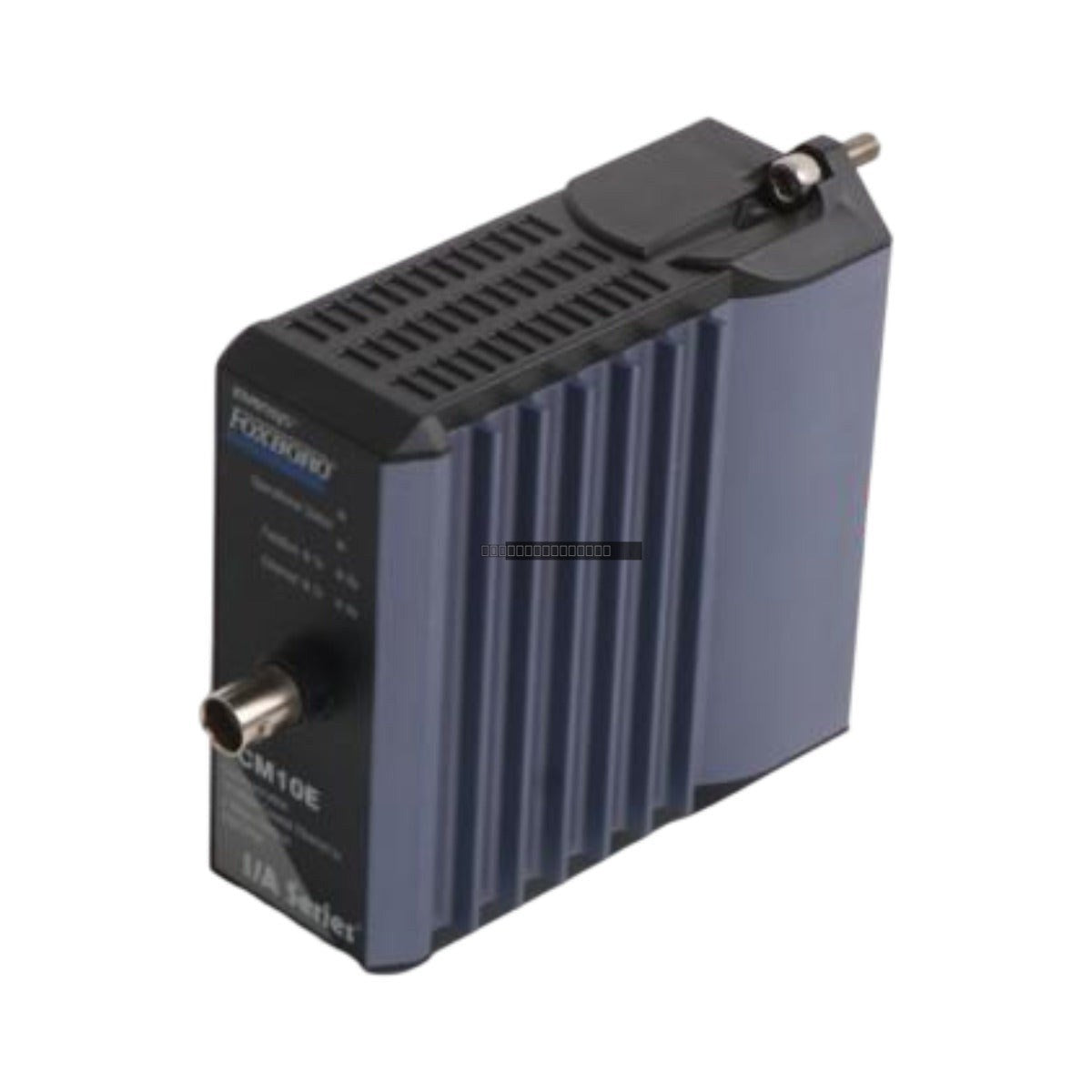

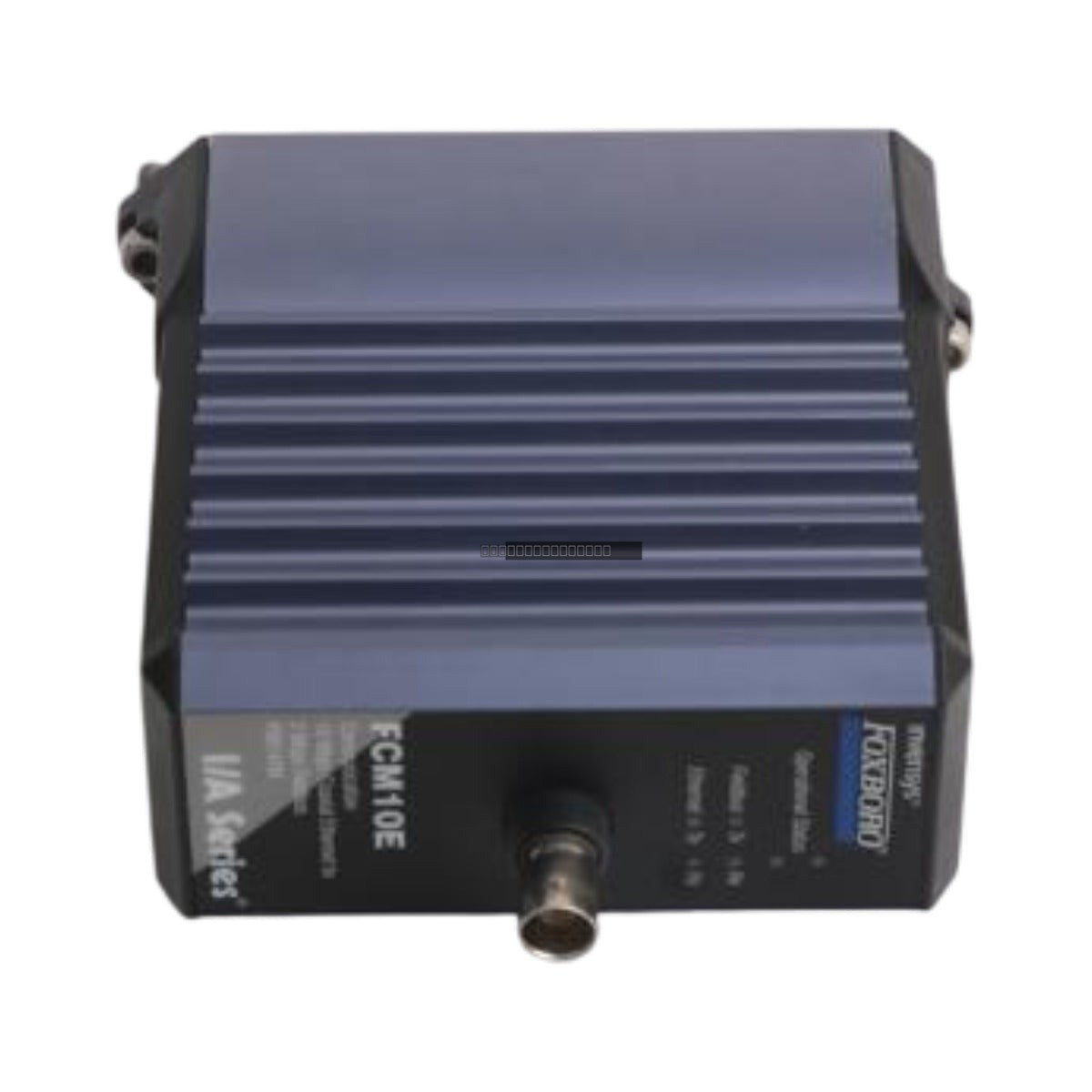

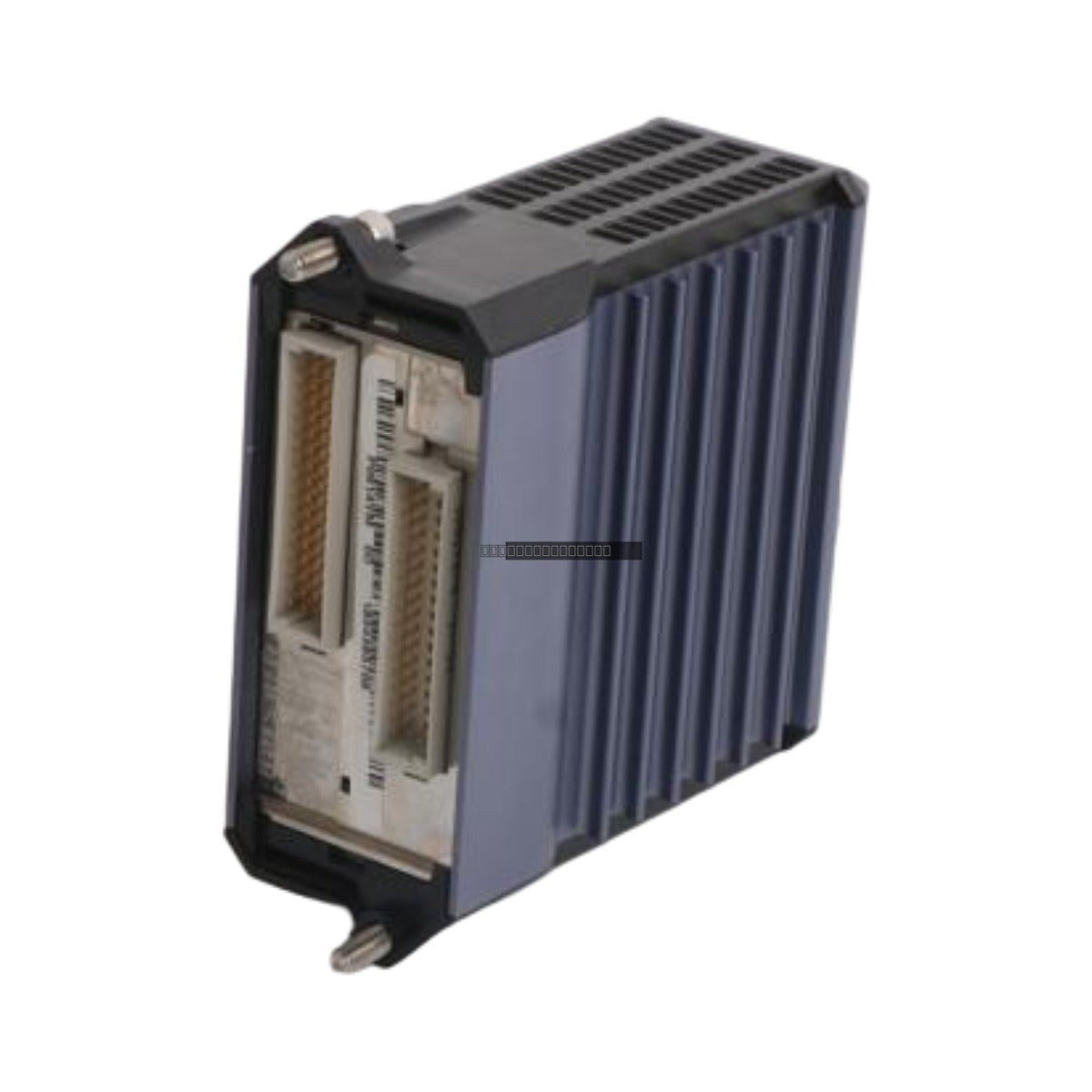

Foxboro FCM10E P0914YM I/A Series Fieldbus Communications Module

Description

The Foxboro FCM10E (P0914YM) is a high-speed Fieldbus Communications Module designed for the I/A Series (Intelligent Automation) distributed control system. This module serves as a critical interface between the 10 Mbps Ethernet control network and the 268 Kbps Fieldbus, enabling seamless data exchange for Fieldbus Modules (FBMs). Engineered for demanding industrial environments including oil and gas, chemical processing, and mineral extraction, the FCM10E provides high-availability data throughput, manages complex communication protocols, and performs internal diagnostics to minimize network latency and maintain operational uptime.

Features

• Supports both single and redundant module configurations for high-availability applications.
• Integrated LED indicators for real-time status monitoring of link activity, collisions, and hardware health.
• Supports 10Base2 (Thinwire) or 10Base5 (Thickwire) physical layer interfaces.
• Handles global time distribution and station management signals across bus segments.
• Optimized for low-latency conversion between Ethernet and Fieldbus protocols.

Applications

The FCM10E is typically deployed in large-scale industrial control architectures where reliable, high-speed communication between the control network and field I/O is required. Common applications include offshore oil platforms, large-scale chemical manufacturing plants, and mineral processing facilities utilizing the Foxboro I/A Series DCS.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is correctly seated in the I/A Series baseplate to ensure reliable electrical connection.
• Ensure proper shielding and grounding of the Ethernet and Fieldbus cabling to mitigate EMI (Electromagnetic Interference).
• Maintain adequate ventilation around the module to ensure operating temperatures remain within the specified 0 to 60 deg C range.

FAQ

Is the FCM10E compatible with redundant configurations?

Yes, the FCM10E supports redundant operation. In this configuration, two modules work in tandem to ensure that a single hardware or cable failure does not interrupt communication with the downstream I/O.

What is the primary function of the P0914YM?

The P0914YM acts as a gateway module, converting Ethernet-based control network data into the 268 Kbps Fieldbus protocol used by Foxboro FBMs.
