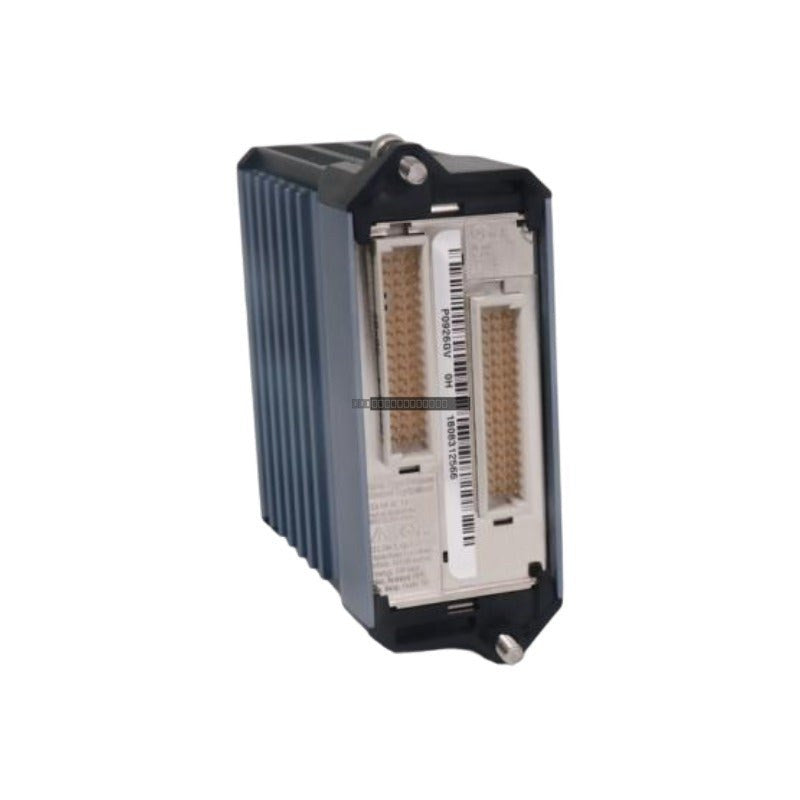

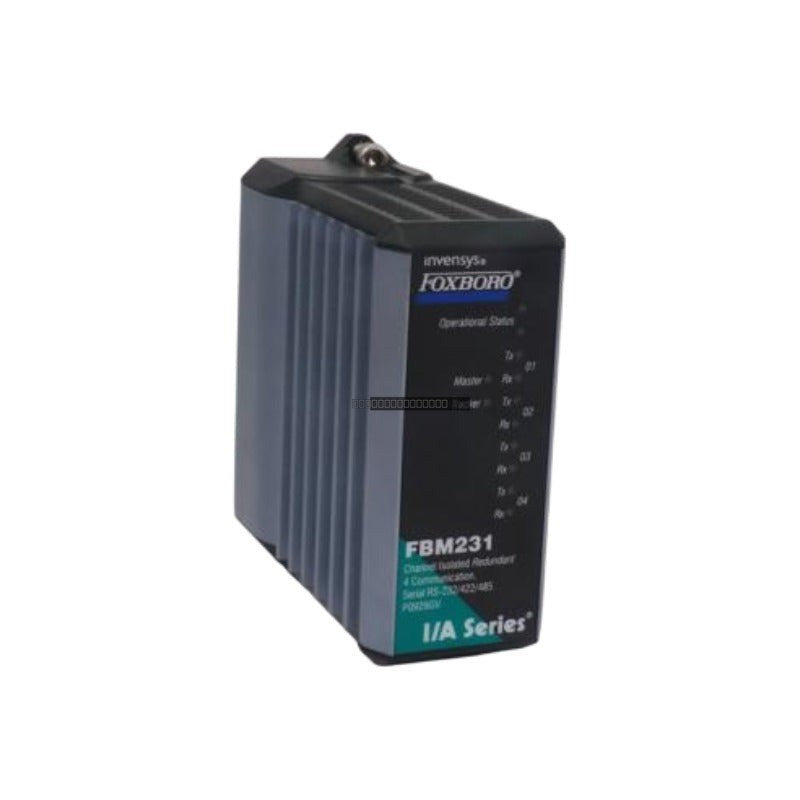

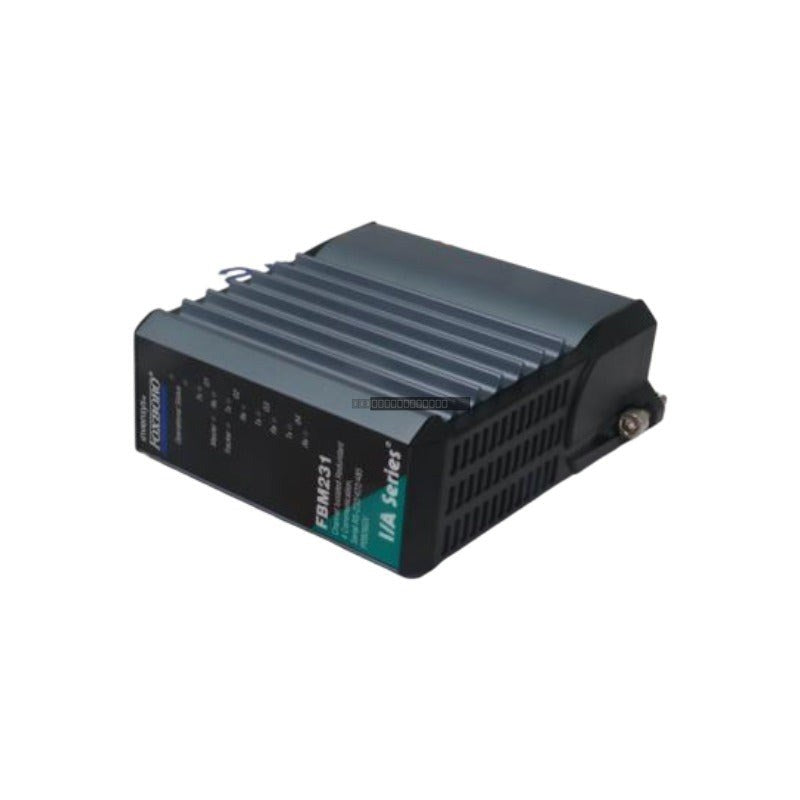

Foxboro FBM231 I/A Series Field Device System Integrator Module

Description

The Foxboro FBM231 is a high-performance Field Device System Integrator module engineered for the I/A Series distributed control system. It serves as a critical communication bridge, providing four independent serial ports to facilitate seamless data exchange between the primary DCS and third-party field devices. By supporting protocols such as Modbus and Allen-Bradley DF1, the FBM231 enables centralized monitoring and control of peripheral assets in demanding industrial environments, including oil refineries, chemical processing plants, and power generation facilities.

Features

• Four independent asynchronous serial ports supporting RS-232, RS-422, and RS-485 physical standards.
• Dedicated on-board processor for protocol stack execution, reducing load on the main control processor.
• Supports redundant pair configurations for high-availability and fault-tolerant operation.
• Hot-swappable design allows for maintenance without interrupting the primary control loop.
• Continuous internal self-diagnostics to monitor link integrity and hardware health.
• Supports baud rates up to 38.4 kbps per port.

Applications

The FBM231 is typically deployed in process automation environments where integration of non-native serial devices is required. It is commonly used for interfacing with PLCs, smart transmitters, analyzers, and variable frequency drives (VFDs) that communicate via serial protocols, ensuring unified data visibility across the I/A Series architecture.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before inserting or removing the module from the baseplate.
• The module supports hot-swapping; however, verify that the baseplate and power supply are rated for the intended configuration.
• Use shielded communication cables to minimize EMI/RFI interference, especially when operating in RS-485 or RS-422 modes.
• Ensure proper grounding of the module chassis to the system ground bus to maintain signal integrity and safety isolation.
• Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range.

FAQ

Q: Can the FBM231 be used in a redundant configuration?
A: Yes, the FBM231 supports redundant pair configurations. If the primary module fails, the secondary module automatically assumes control of the serial ports to maintain uninterrupted communication.

Q: What protocols are supported by the FBM231?
A: The module supports standard asynchronous serial protocols including Modbus and Allen-Bradley DF1. It is designed to handle customized drivers for various third-party field devices.
