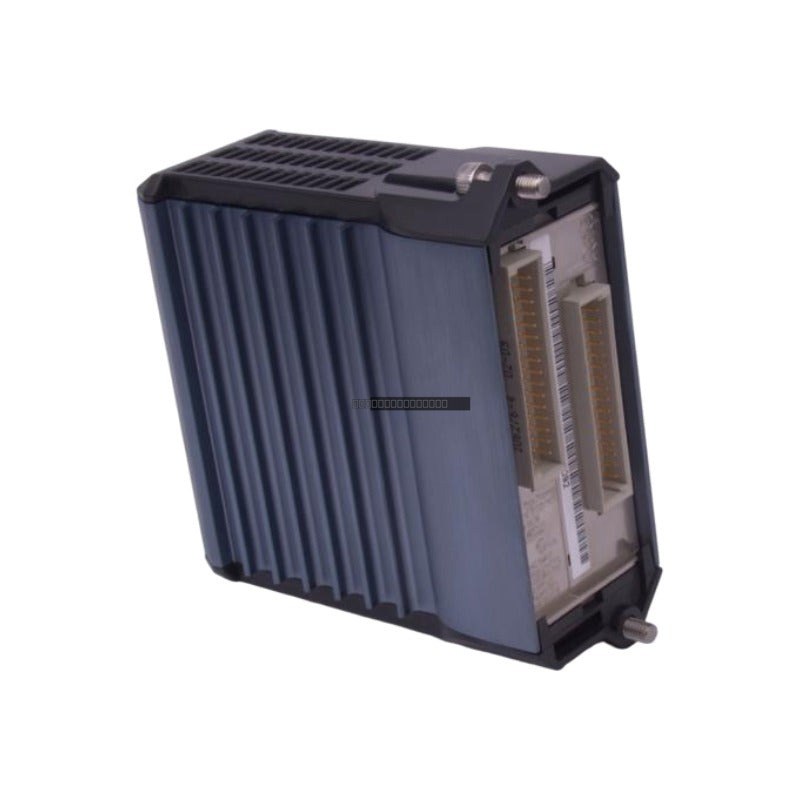

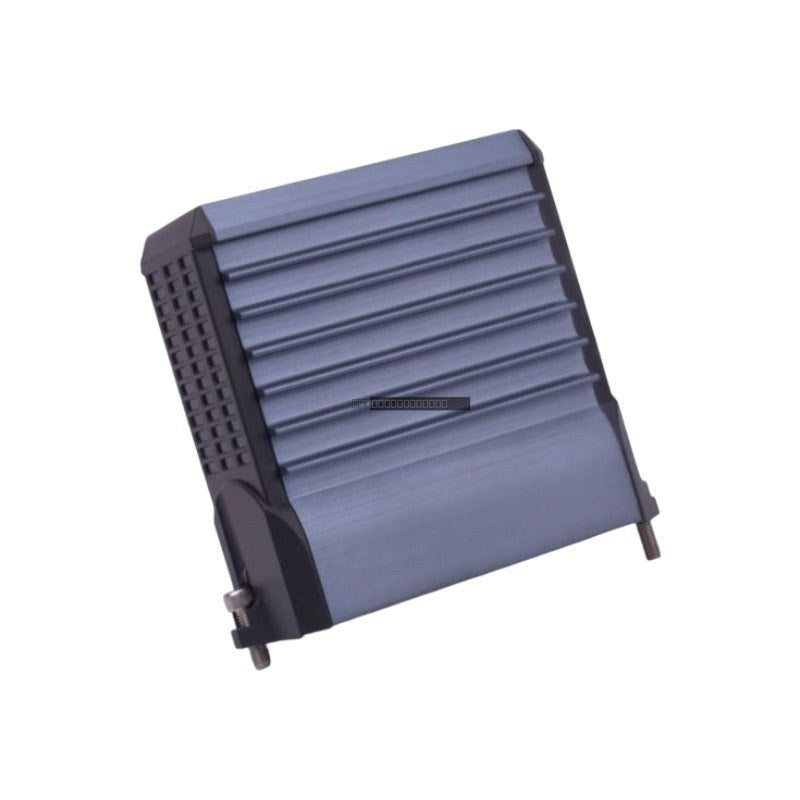

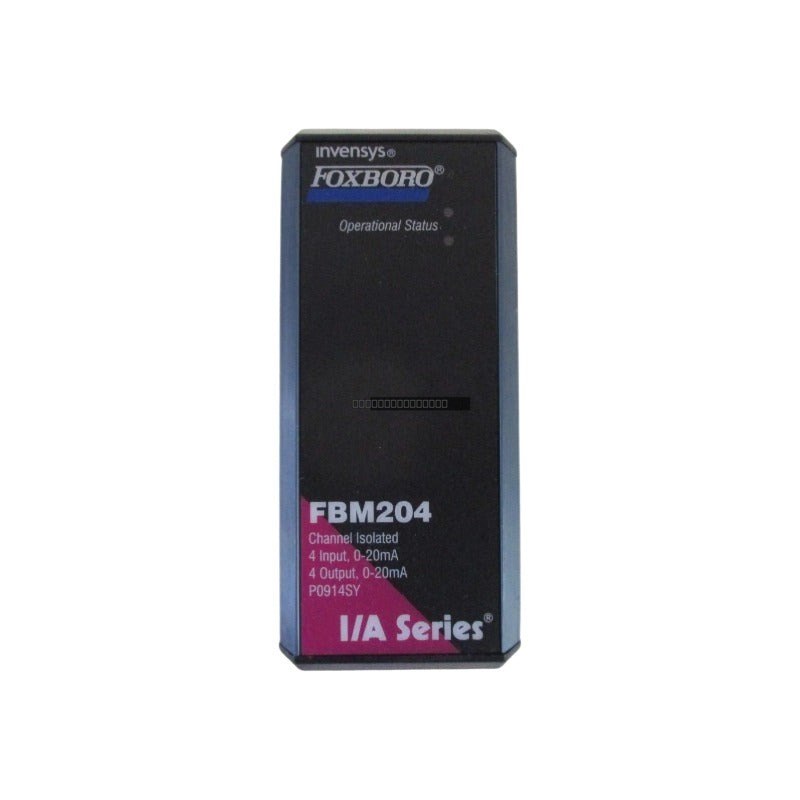

Foxboro FBM204 Analog I/O Module

The Foxboro FBM204 (P0914FB) is a high-performance analog interface module engineered for the I/A Series Distributed Control System (DCS). This unit functions as a combined I/O module, providing four isolated analog input channels and four isolated analog output channels (0 to 20 mA). By consolidating these functions into a single module, the FBM204 enables efficient cabinet utilization and simplified wiring for process control applications such as PID loops, valve positioning, and transmitter monitoring.

Features

• Combined I/O Functionality: Integrates 4 analog inputs and 4 analog outputs to optimize density in DCS cabinets.
• Galvanic Isolation: Provides robust protection against ground loops and common-mode electrical noise, ensuring signal integrity.
• High-Speed Processing: Utilizes advanced ADC/DAC conversion to maintain precision in critical control loops.
• Redundancy Support: Designed to interface with 2 Mbps Fieldbus communication paths for high-availability system architectures.
• Configurable Fail-States: Output channels can be set to hold their last known state or transition to a predefined safe state during communication loss.
• Integrated Diagnostics: Continuous monitoring of power health and internal conversion circuitry for proactive maintenance.

Applications

The FBM204 is widely implemented in demanding industrial sectors, including chemical processing, water and wastewater management, and pharmaceutical manufacturing. It is ideal for interfacing with field transmitters, control valves, and actuators where reliable, high-accuracy analog signal conversion is mandatory for process stability.

Technical Specifications

Installation Guidelines

• ESD Protection: Always utilize a grounded wrist strap when handling the FBM204 to prevent electrostatic discharge damage to internal components.
• Power Management: Ensure the system power is disconnected before installing or removing the module from the baseplate.
• Mounting: Seat the module firmly onto the designated I/A Series baseplate, ensuring the connector pins are properly aligned.
• Shielding: Use shielded twisted-pair cabling for all analog signals to minimize EMI interference in noisy plant environments.
• Grounding: Verify that the baseplate is correctly bonded to the cabinet ground bus to maintain effective galvanic isolation.

Compliance

This module is designed to meet international industrial standards, including CE, CSA, FM, and ATEX Class 1 Division 2 requirements for hazardous locations.

FAQ

Q: Is the FBM204 compatible with redundant Fieldbus configurations?
A: Yes, the FBM204 is designed to operate within the I/A Series architecture and supports redundant communication paths when installed on a compatible baseplate.

Q: What happens to the analog outputs if the communication link fails?
A: The module can be configured to either hold the last valid output value or shift to a predefined safe state as defined by the system configuration.
