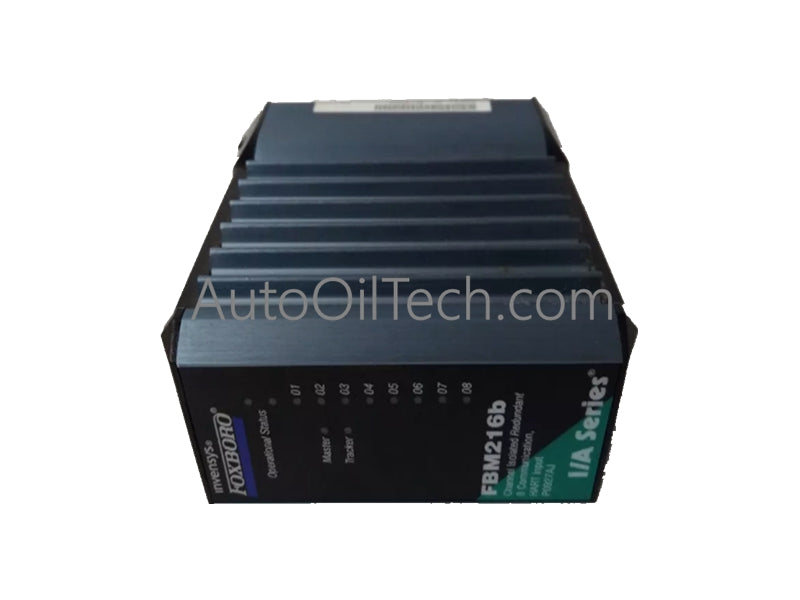

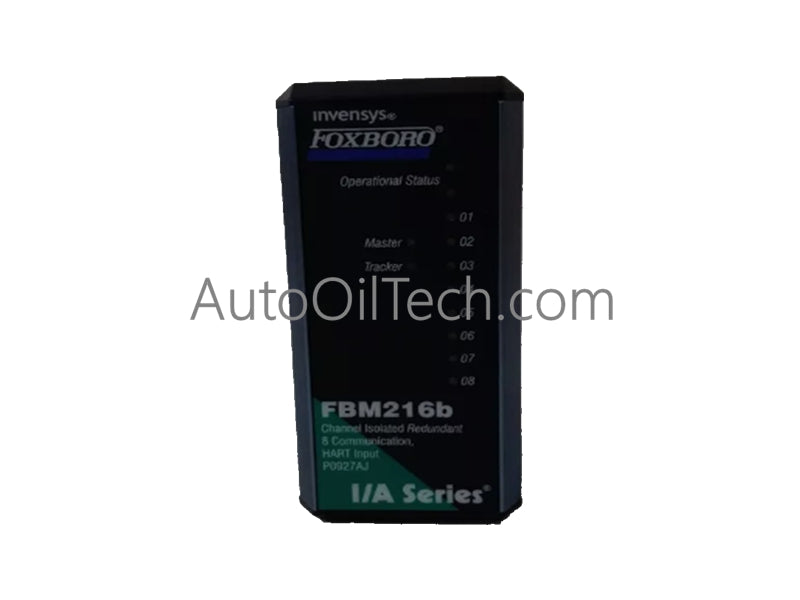

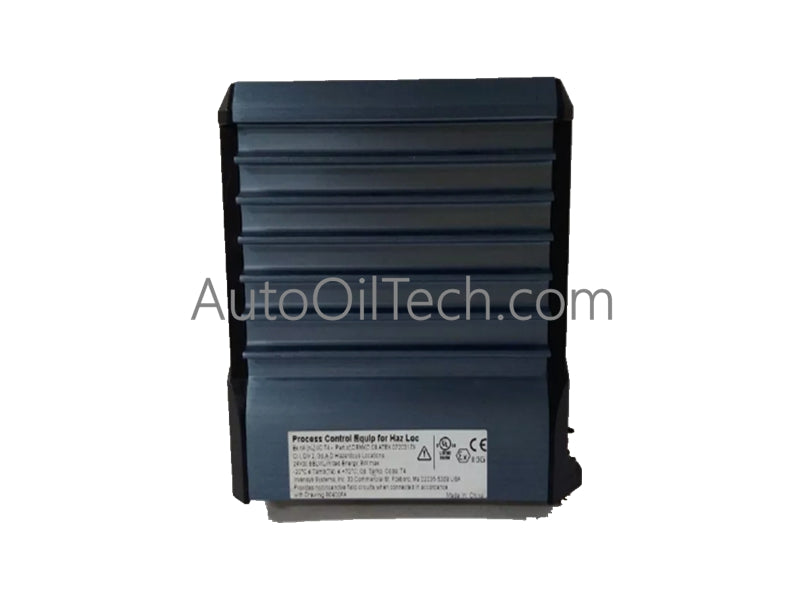

TheFoxboro FBM216 (P0917XQ)is a versatile Multifunction Input/Output (I/O) module designed for the EcoStruxure Foxboro DCS and I/A Series platforms. This module provides a balanced combination of digital inputs and outputs on a single card, making it an ideal solution for small-scale control loops or decentralized monitoring where both sensing and actuation are required in close proximity.
Specifications
Part Number:FBM216 / P0917XQ
Input Channels:8 Discrete Inputs
Output Channels:8 Discrete Outputs
Input Type:24VDC Contact Sense (Dry contact)
Output Type:24VDC at 0.25A per channel (External sourcing)
Operating Temperature:-20°C to +70°C (-4°F to +158°F)
Power Requirements:24VDC (sourced from the baseplate)
Features
Combined I/O Functionality:integrates both input sensing and output control in a single module, optimizing hardware usage and reducing the number of slots required for simple control tasks.
Redundant Configuration:Supports redundant pairing when installed on a compatible baseplate, ensuring that critical control functions remain active even if one module fails.
Transient Protection:Engineered with internal surge suppression and galvanic isolation to protect the system backplane from electrical faults or spikes originating in the field.
Hot-Swappable:Designed for online removal and replacement, allowing maintenance to be performed without shutting down the Field Control Processor (FCP) or impacting other I/O points.
Real-Time Diagnostics:Continuously monitors the health of both input and output circuits, including internal power rails and communication integrity, with immediate reporting to the DCS.
Status LEDs:Features dedicated front-panel indicators for module power, operational status, and communication activity, as well as individual channel status for rapid troubleshooting.
