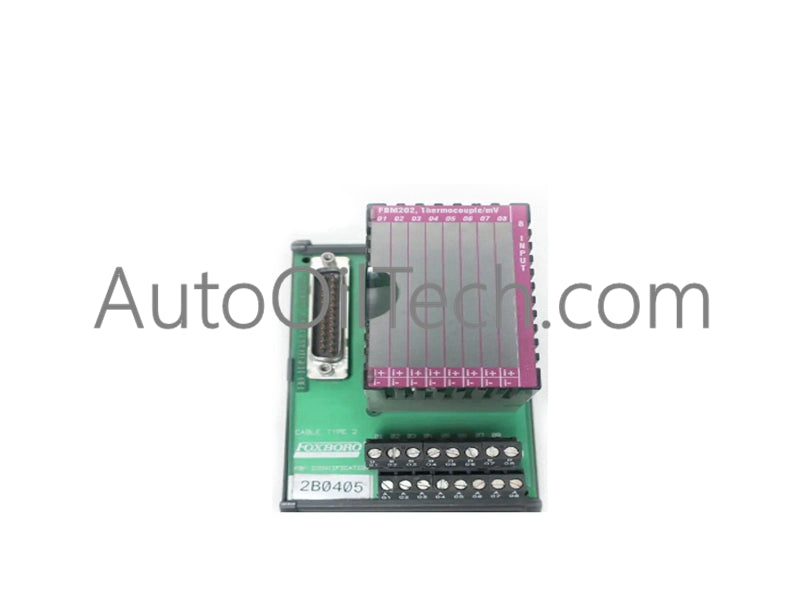

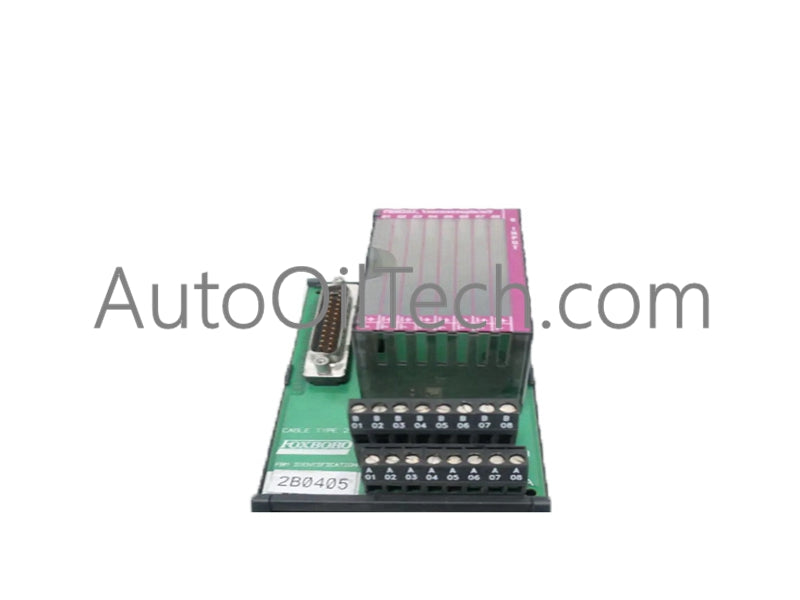

The Foxboro FBM202 P0916AC Thermocouple/mV Compression Terminal Base is designed to provide secure and reliable field wiring connections for FBM202 modules. With DIN rail mounting capability, it ensures easy installation and robust performance in industrial automation environments.
Key Technical Specifications
Model / Part Number:FBM202 P0916AC
Manufacturer: Foxboro (by Schneider Electric)
Product Type: Thermocouple/mV Compression Terminal Base
Mounting: DIN rail mount (horizontal or vertical)
Connection Type: Compression terminals for thermocouple and millivolt signal wiring
Compatibility: Designed specifically for FBM202 modules in Foxboro I/A systems
Dimensions (L × H × W): 10.4 × 10.2 × 4.5 cm
Net Weight: ~0.284 kg
Application Scenarios
The FBM202 terminal base is widely used in:
Process automation systems requiring thermocouple/mV signal connections
Oil & gas and petrochemical industries
Power generation and distribution networks
Chemical plants and manufacturing facilities
FAQ
Q: What modules are compatible with the FBM202 terminal base? A: It is designed specifically for FBM202 modules within Foxboro I/A systems.
Q: What type of signals does the terminal base support? A: It supports thermocouple and millivolt (mV) signal wiring.
Q: Is the base easy to install? A: Yes, it mounts directly on DIN rails for quick integration.
