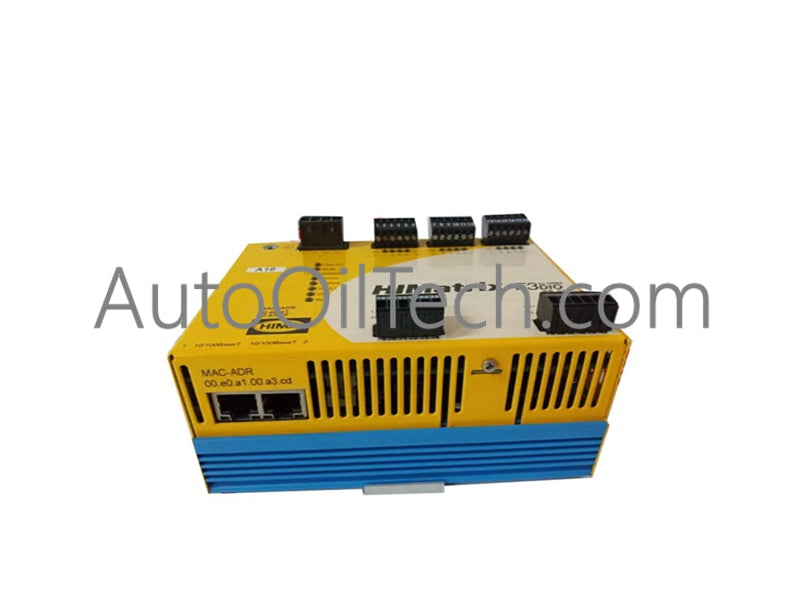

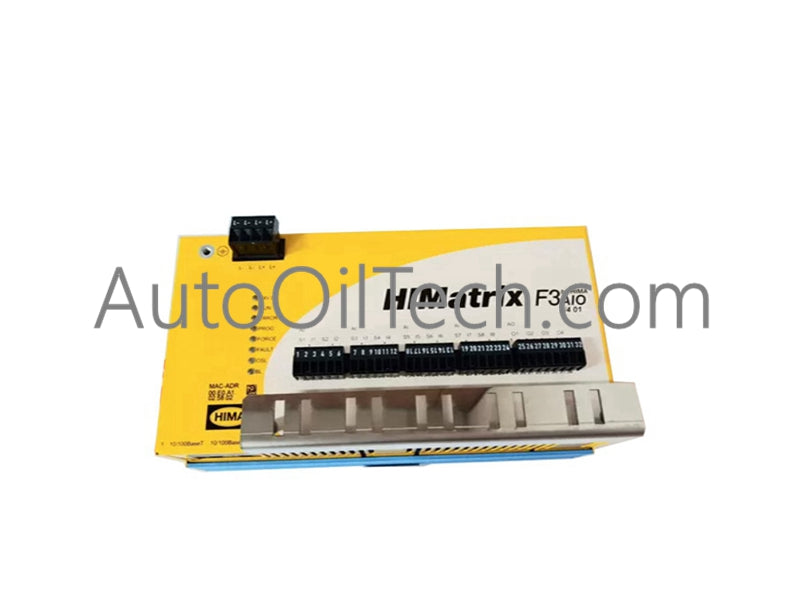

F3 AIO 8/4 01 F3AIO8/401 | HIMA HIMatrix | Safety Controller Module

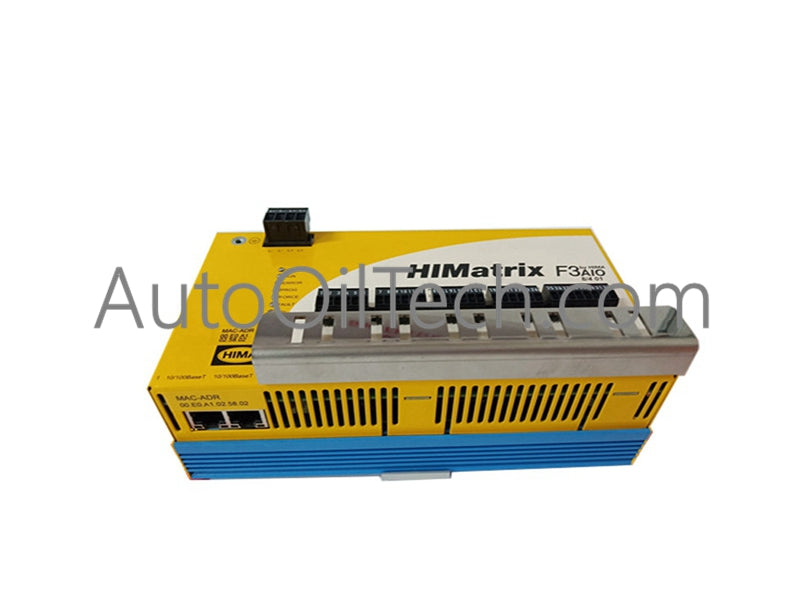

Product Description

The HIMA HIMatrix F3 AIO 8/4 01 is a versatile safety controller module designed for distributed control systems (DCS). It combines analog inputs, supply outputs, and analog outputs in one compact unit, with Ethernet connectivity and TÜV-certified compliance up to SIL 3. Engineered for precision and reliability, it is ideal for safety-critical automation in industrial environments.

Technical Specifications

• Model Number: F3 AIO 8/4 01

• Module Type: Safety controller module

• Manufacturer: HIMA

• Operating Voltage: 24 VDC, –15%…+20% (safe insulation per IEC 61131-2)

• Current Input (Max): 0.8 A (with maximum load)

• Idle Current: ~0.4 A at 24 V

• Fuse (External): 10 A time-lag (T)

• Response Time: ≥ 20 ms

• Ethernet Interfaces: 2 × RJ-45, 10/100BaseT with integrated switch

• Back-up Battery: None

• Operating Temperature: 0…+60 °C (standard), –20…+60 °C (extended variant)

• Storage Temperature: –40…+85 °C

• Type of Protection: IP20

• Dimensions (W × H × D): 207 × 114 × 97 mm

• Weight: 0.95 kg

• Enclosure Material: V2A stainless steel

• Shock & Vibration Tests: ISO 13628-6:2006, Level Q1 and Q2

Analog Inputs:

• Number of Inputs: 8 (non-galvanically isolated)

• Nominal Range: 0…+10 VDC, 0/4…+20 mA (with 500 Ω shunt)

• Operating Range: –0.1…+11.5 VDC, –0.4…+23 mA

• Input Resistance: > 2 MΩ

• Source Resistance: ≤ 500 Ω

• Digital Resolution: 12-bit

• Measurement Accuracy: ±0.1% at 25 °C, ±0.5% full range

• Safety Accuracy: ±2% of final value

• Sampling Time: ~45 µs

Supply Outputs:

• Number of Outputs: 8

• Nominal Voltages: 8.2 VDC / 26 VDC (switchable)

• Tolerance: ±5%

• Safely Monitored Limits:

  • 7.6…8.8 V (tolerance 7.3…9.1 V)

  • 24.3…27.7 V (tolerance 24.0…28.0 V)

• Current Limiting: > 200 mA (output switched off on overload)

Analog Outputs:

• Number of Outputs: 4 (non-galvanically isolated, non-safety-related, common safe shutdown)

• Nominal Value: 4…20 mA

• Operating Value: 0…21 mA

• Digital Resolution: 12-bit

• Load Impedance: ≤ 600 Ω

• Measurement Accuracy: ±0.1% at 25 °C, ±0.5% full range

• Safety Accuracy: ±1% of final value

FAQ

Q: How many analog inputs does the module provide? A: It provides 8 analog inputs with 12-bit resolution.

Q: Does it include analog outputs? A: Yes, it has 4 analog outputs (non-safety-related).

Q: What certifications does it meet? A: TÜV SIL 3, ATEX Zone 2, UL, CSA, and FM approvals.
