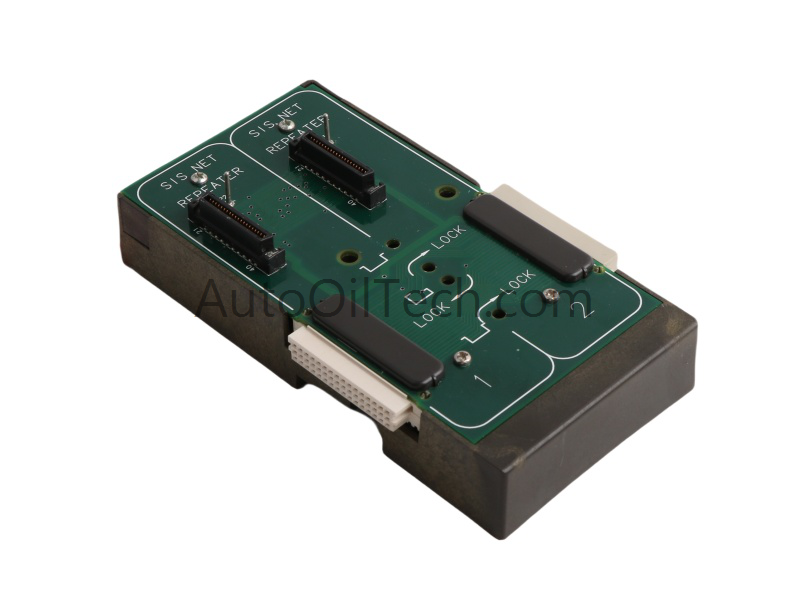

The VS6002 KJ2221X1-EA1 SISNet Repeater Carrier from Emerson is designed to extend and stabilize SISNet communication in safety instrumented systems. Built for rugged industrial environments, it ensures reliable signal transmission under extreme operating conditions.
Technical Specifications
Power Input: Local Bus 12.6 VDC at 8 A
Operating Temperature Range: -40°C to +70°C
Shock Resistance: 10 g, ½ sine wave, 11 ms duration
Vibration Tolerance:
1 mm peak-to-peak, 2–13.2 Hz
0.7 g, 13.2–150 Hz
Airborne Contaminants: Meets ISA-S71.04-1985 Class G3 standard
Humidity Range: 5–95%, non-condensing
Application Scenarios
Safety instrumented systems requiring extended SISNet communication
Harsh industrial sites with high vibration and shock exposure
Facilities exposed to airborne contaminants where Class G3 compliance is critical
FAQ
Q: What is the primary function of this repeater carrier? A: It extends SISNet communication, ensuring stable signal transmission across distributed safety systems.
Q: Can it operate in outdoor or semi-exposed environments? A: Yes, its wide temperature range and humidity tolerance make it suitable for outdoor or semi-exposed installations.
