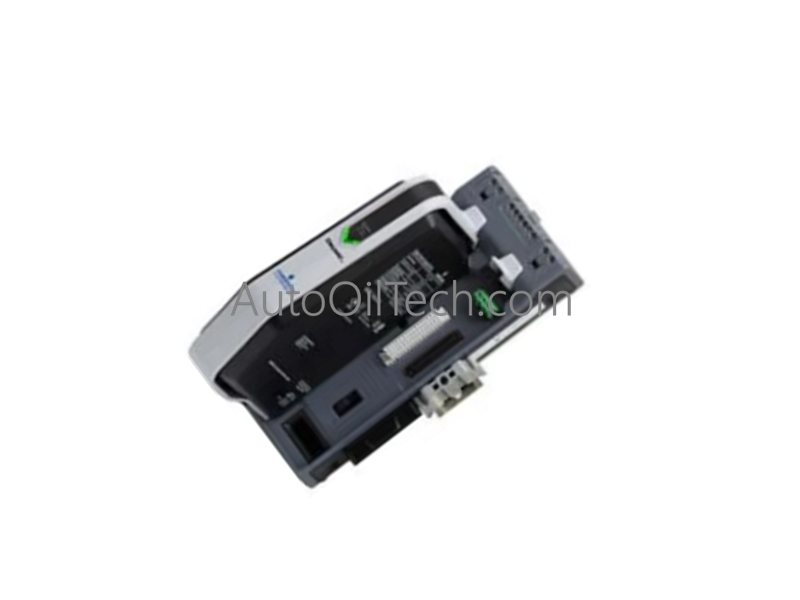

Emerson VE6046P3 Network Smart Switch Module

Configured for high-density industrial Ethernet routing in DeltaV architectures, the Emerson VE6046P3 (VE6046P3 Network Smart Switch) provides direct physical/electrical execution of deterministic control network communication, VLAN management, and cybersecurity lockdown protocols.

Hardware Specifications

Industrial Network Connectivity Characteristics

• Profinet / EtherNet/IP deterministic networks: The switch supports managed traffic prioritization and IGMP snooping, ensuring deterministic delivery of time-critical control data across the DeltaV Ethernet fabric.
• Backplane bus communication velocity: The switch architecture is optimized for high-speed packet forwarding, minimizing latency for inter-node communication within the distributed control system.
• I/O density scaling: The 24-port configuration supports high-density I/O clustering, facilitating seamless network expansion while maintaining consistent throughput across all connected segments.
• Firmware flash compatibility: The module supports field-upgradable firmware, allowing for continuous integration of security patches and protocol enhancements within the managed network environment.

Frequently Asked Questions

Q: Does the VE6046P3 support Rapid Spanning Tree Protocol (RSTP)?

A: Yes. The switch complies with IEEE 802.1w (RSTP), allowing for the creation of redundant network loops to provide path resiliency and automatic recovery in the event of a cable or switch failure.

Q: How is the automatic network lockdown for cybersecurity implemented?

A: The switch utilizes embedded DeltaV management features to disable unused ports and enforce port-based security, preventing unauthorized hardware from gaining access to the control network.

Field Installation Guidelines

• Mounting: Secure the switch using the provided DIN-rail clips or 19-inch rack-mount hardware. Ensure the installation location provides unobstructed airflow to maintain the specified operating temperature range.
• Grounding: Connect the chassis ground terminal to the cabinet’s common earth bus. Proper bonding is mandatory to mitigate common-mode noise and protect the internal sensitive network electronics from electrical transients.
• Wiring: Utilize shielded twisted-pair (STP) Ethernet cabling for RJ45 ports to minimize EMI. For uplink ports requiring SFP fiber modules, ensure proper cleaning of optical interfaces and verify that bend radii conform to fiber-optic cable specifications to prevent signal attenuation.
