Emerson VE4015 DeltaV M-Series

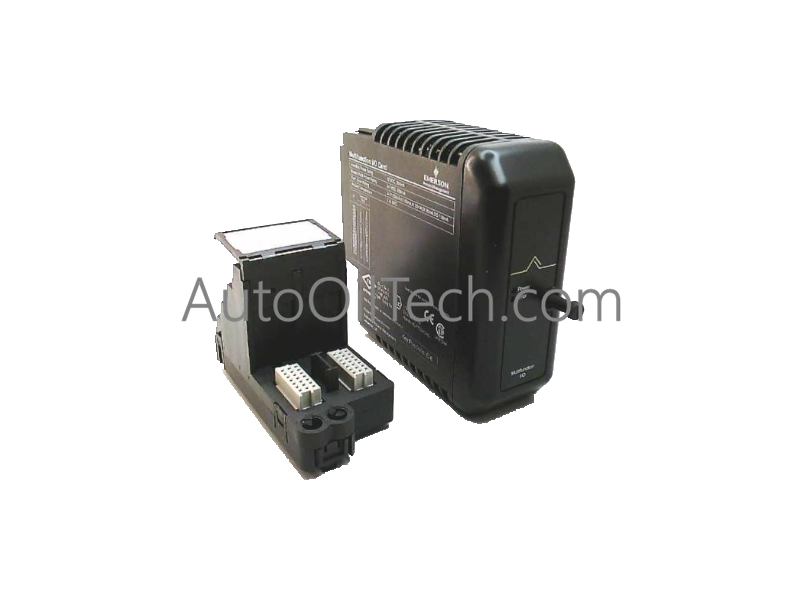

The Emerson VE4015, also cataloged as the VE4015 Multifunction I/O Card, operates as a dedicated hardware component for multi-signal collection and pulse count processing within DeltaV Distributed Control System platforms.

Hardware Specifications

Process Control & Instrument Interfacing

• 4-20 mA HART Loop Protocol Integration: The hardware incorporates dedicated HART passthrough pathways, permitting direct configuration and diagnostic monitoring of field transmitters via the DeltaV system software.
• Channel-to-Channel Isolation: Physical isolation circuits protect individual signal pathways from ground loops and external common-mode voltage spikes up to 1500 VDC.
• Cold Junction Compensation: Built-in temperature reference components provide direct compensation protocols for thermocouple field configurations when utilizing matching high-density termination blocks.

Frequently Asked Questions

Q: Does this module support physical extraction under active system power?

A: Yes. The DeltaV M-series carriers allow hot-swap execution under power. The system maintains continuous control operation across other slots during exchange.

Q: What is the purpose of the keying configurations on the terminal block assembly?

A: The physical terminal blocks utilize customized mechanical keying positions to prevent the insertion of incorrect field-wiring signal types into incompatible electronic modules.

Field Installation Guidelines

• Mounting Stability: Mount the I/O interface carrier securely onto standard 35 mm DIN rails inside a grounded, sealed junction box or cabinet enclosure to prevent mechanical displacement.
• Shield Grounding Rules: Always land instrument cable shields at the designated cabinet grounding bar. Avoid multi-point shield grounding to eliminate electrical ground loop induction.
• Wiring Separation: Maintain a minimum distance of 50 mm between low-voltage DC signals (such as the 4-20 mA HART lines) and high-voltage AC electrical lines inside the enclosure routing channels.
