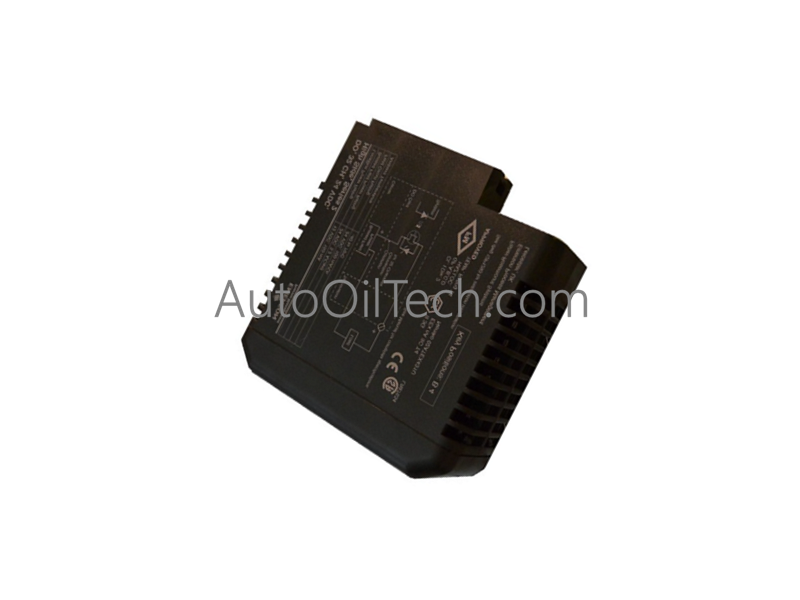

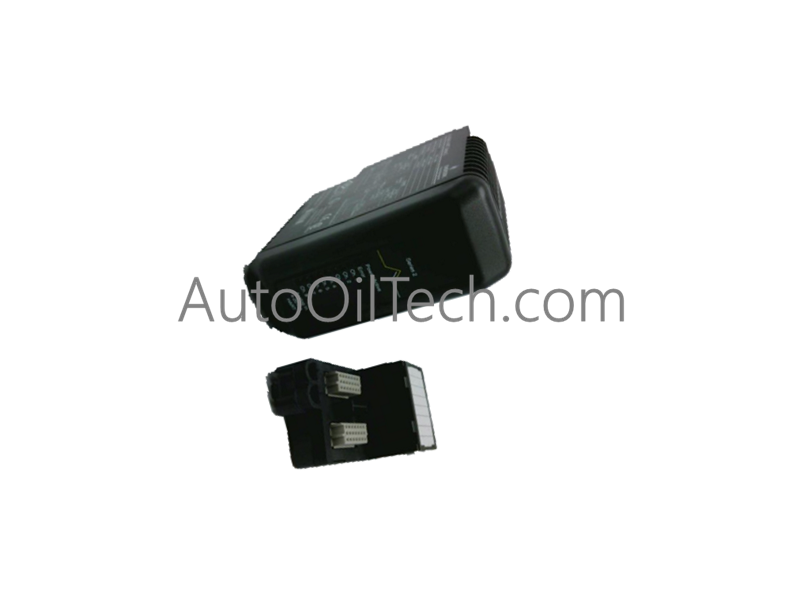

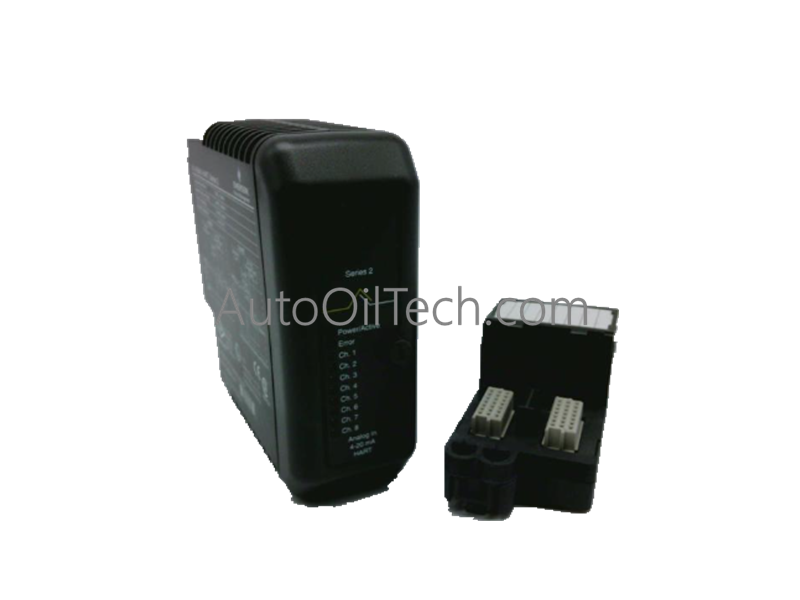

Emerson VE4012S2B1 DeltaV M-Series Analog Input Module Kit

Configured for high-density analog signal acquisition in hazardous plant areas, the Emerson VE4012S2B1 (VE4012S2B1 I/O Module Kit) provides direct physical/electrical execution of safety-critical field loops.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel Isolation

The VE4012S2B1 kit leverages integrated field barriers to deliver intrinsic safety protection directly to field instrument loops.

• 4-20 mA HART Signal Extraction: The KJ3102X1-BA1 module extracts digital HART variable data modulated over the 4-20 mA analog signal, routing variables directly to DeltaV controllers without external hardware modems.
• Channel-to-Channel Isolation: Individual galvanic isolation barriers protect internal system logic backplanes from high-voltage transients on the field side, suppressing signal crosstalk between active loops.
• Intrinsically Safe Ex i Boundaries: Designed with strict current and voltage limiting circuitry, preventing spark ignition in Class I Division 1 or Zone 0/1 hazardous environments under fault conditions.

Frequently Asked Questions

Q: Can the KJ3102X1-BA1 active electronic module be hot-swapped under field power?

A: Yes. The M-series carrier backplane allows physical hot-swapping of the active I/O module while the system remains energized. However, proper hazardous area permits must be secured if operating in an active explosive environment.

Q: Is a separate external power supply required to power 2-wire transmitter field loops?

A: No. The intrinsically safe circuitry integrated into the module provides loop power directly to 2-wire field transmitters through the KJ4110X1-BA1 terminal block connection points.

Q: How does the system indicate a field wiring open-circuit or short-circuit fault?

A: The front panel features individual channel LED status lights. A channel wire break or short-circuit condition drops the loop current below 3.6 mA or raises it above 21.0 mA, triggering a module diagnostic fault register and illuminating the red error LED.

Field Installation Guidelines

• Terminal Block Torque Specifications: Secure all field wires into the KJ4110X1-BA1 terminal block clamp screws to a maximum tightness of 0.56 N-m (5 in-lb) to prevent thread stripping.
• Wiring Separation and Segregation: Route all intrinsically safe field loop wires in separate wire trays or conduits segregated from non-intrinsically safe cabling by a physical distance of at least 50 mm (2.0 in).
• Shield Grounding: Terminate cable shields strictly at the designated ground bar on the DeltaV carrier assembly. Do not ground the shield at both ends to avoid creating ground loops.
• Module Insertion Alignment: Align the rear keying pins of the KJ3102X1-BA1 module with the matching slots on the carrier socket prior to pressing down on the locking latch.
