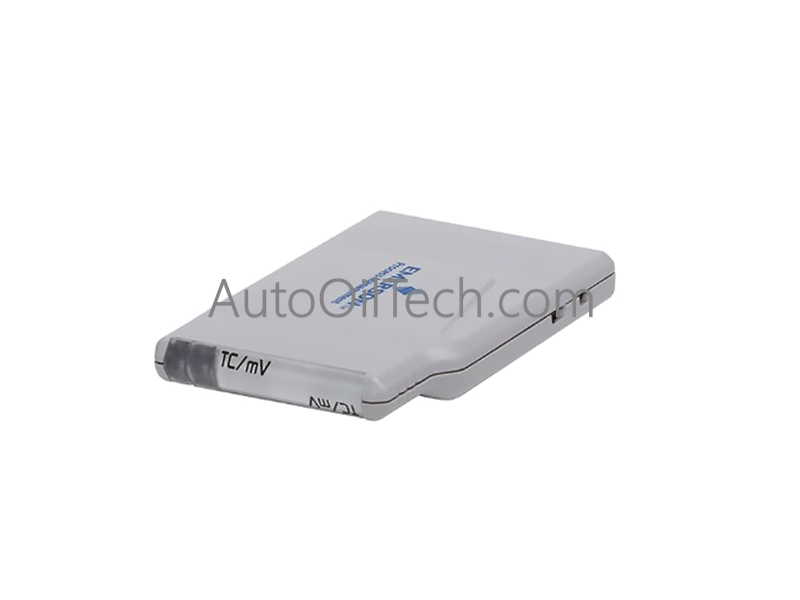

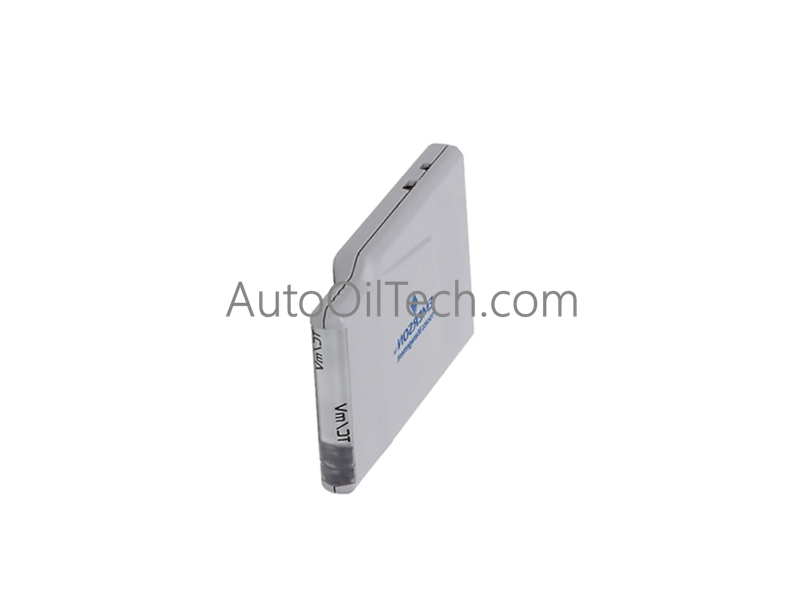

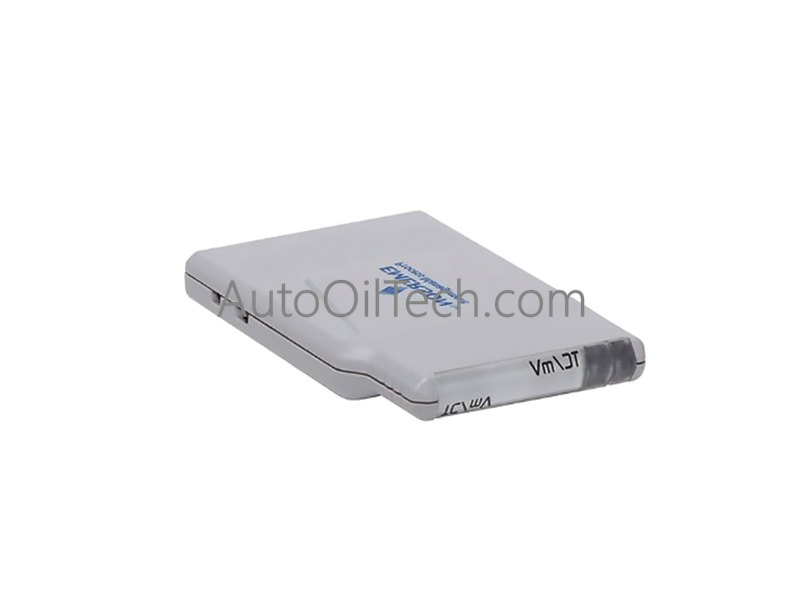

Emerson SE4303T02 Thermocouple/mV Input CHARM

Configured for high-precision temperature and low-voltage signal acquisition in DeltaV distributed control architectures, the Emerson SE4303T02 (SE4303T02) Thermocouple/mV Input CHARM provides direct physical/electrical execution of cold junction compensation (CJC), signal linearization, and A/D conversion for remote I/O processing.

Hardware Specifications

Emerson DCS Process Control Characteristics

• 4-20 mA HART loop protocol: The CHARM module functions as an interface for field sensors, enabling integration of mV and thermocouple signals into the DeltaV network. This connectivity is mandatory to ensure that raw process inputs are digitized and transmitted with deterministic timing to the field control unit.
• Cold junction compensation (CJC): The module performs integrated CJC on-board to support thermocouple inputs. This is mandatory to maintain measurement accuracy in environments with fluctuating ambient temperatures, ensuring that thermocouple cold junctions are referenced correctly against the module's internal thermal probe.
• Channel-to-channel isolation: The input architecture utilizes galvanic isolation to separate field-side thermocouple signals from the CHARM baseplate bus. This is mandatory to prevent ground potential differences between remote field sensors from inducing measurement error or damaging internal signal processing circuitry.

Frequently Asked Questions

Q: Does the SE4303T02 support hot-swapping during system operation?

A: Yes. The CHARM architecture is engineered for hot-swapping. Replacement of a module can be performed without interrupting the control loop, provided the baseplate and terminal block assembly remain energized.

Q: Are there specific thermocouple types supported by this module?

A: The SE4303T02 supports standard industrial thermocouple types and mV ranges. Configuration of the specific sensor type must be verified within the DeltaV engineering station to ensure correct hardware linearization and scaling.

Field Installation Guidelines

• Mounting: Seat the CHARM module into the designated slot on a compatible CHARM baseplate. A secure, firm press is mandatory to ensure the module pins fully engage with the terminal block connectors, maintaining electrical continuity.
• Grounding: Ensure the baseplate chassis is bonded to the cabinet’s instrument earth bus. A low-impedance grounding path is mandatory to effectively shunt electromagnetic interference and protect the sensitive low-level mV input signals from common-mode noise.
• Wiring: Route thermocouple extension wire and mV signal cables in dedicated, shielded raceways. Maintaining a minimum separation of 150 mm from high-voltage AC lines is mandatory to prevent inductive interference, which is critical for preserving the integrity of low-amplitude sensor signals.
