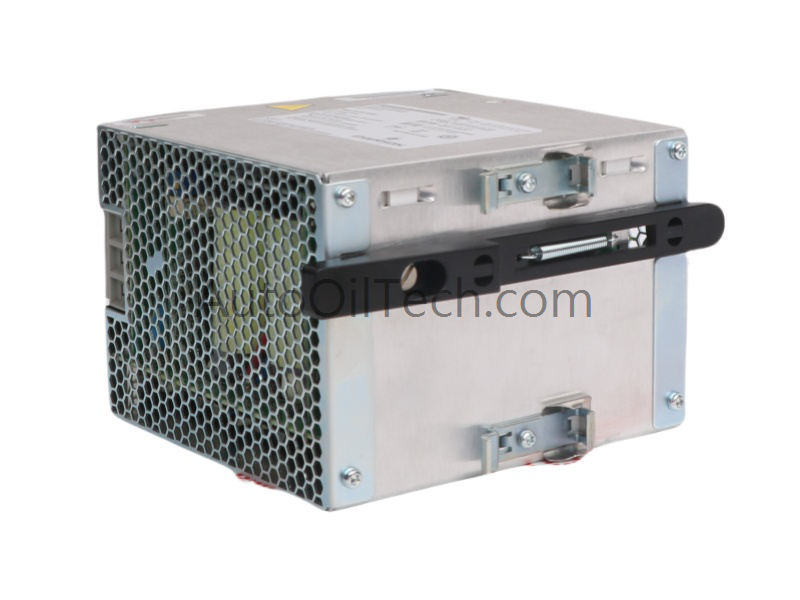

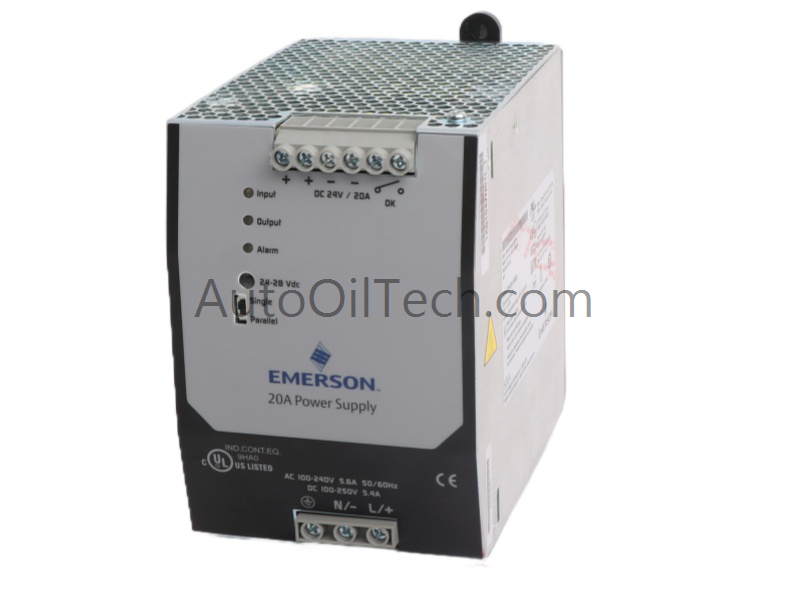

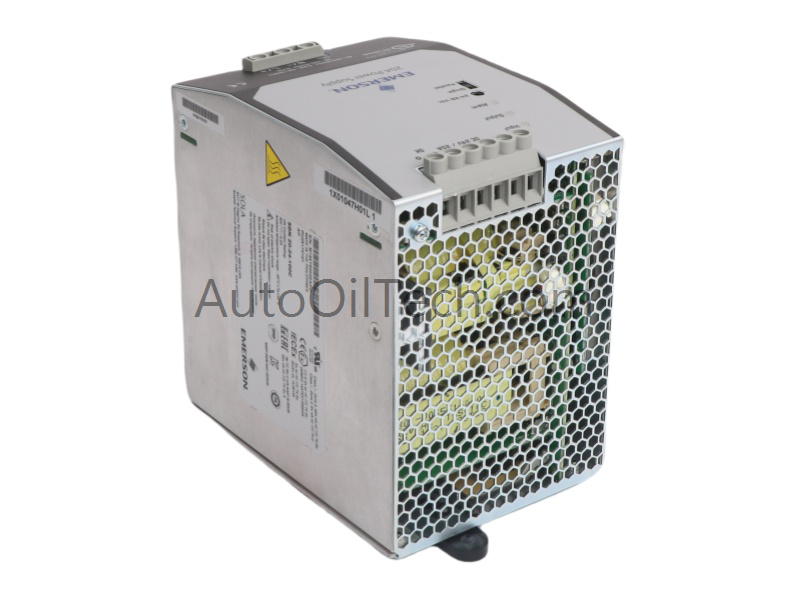

The Emerson Ovation 1X00797H01L is a power supply module designed for Ovation distributed control systems (DCS). It provides stable DC power to system components, ensuring reliable operation in industrial automation and process control environments.
Specifications
Model: 1X00797H01L
Type: Power Module
Manufacturer: Emerson
System: Ovation DCS
Condition: Brand New
Input Voltage: Wide AC input range (typically 85–264 VAC, 47–63 Hz)
Output Voltage: 24 VDC regulated
Output Power: Up to 240 W (depending on configuration)
Output Current: Continuous ~10 A, peak ~12 A
Efficiency: >90% at nominal input
Ripple & Noise: <100 mVpp at 20 MHz bandwidth
Hold-up Time: >20 ms at 230 VAC
Dimensions: Approx. 12 × 5 × 17 cm
Weight: ~0.34 kg
Operating Temperature: -40 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Warranty: 12 months
Features
Stable Power Supply: Provides clean 24 VDC output for Ovation controllers and I/O modules.
High Efficiency: Energy-efficient design with >90% conversion efficiency.
Industrial Durability: Built to withstand harsh environments, shock, and vibration.
Continuity Protection: Hold-up time ensures uninterrupted operation during short power dips.
Compact Design: Lightweight and space-efficient for rack/panel installation.
Hazardous Area Certified: Suitable for Zone 2 and Class I Div. 2 installations.
