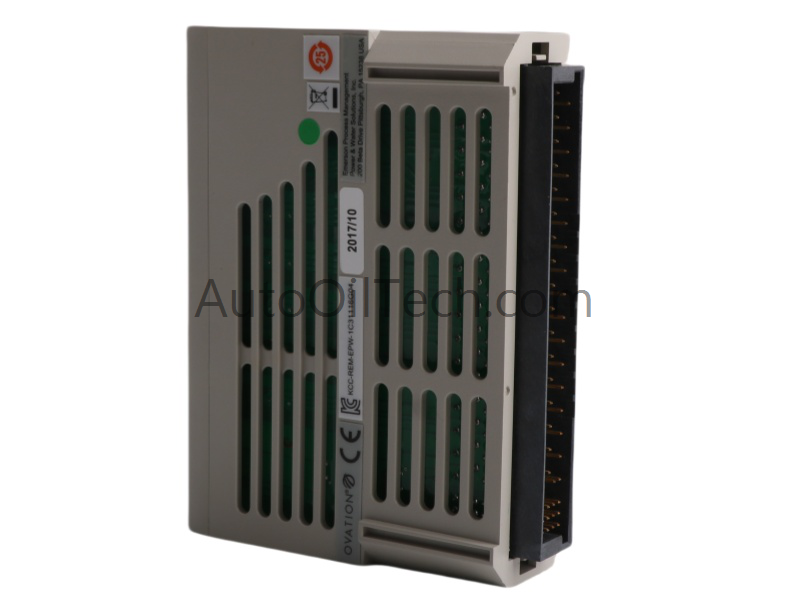

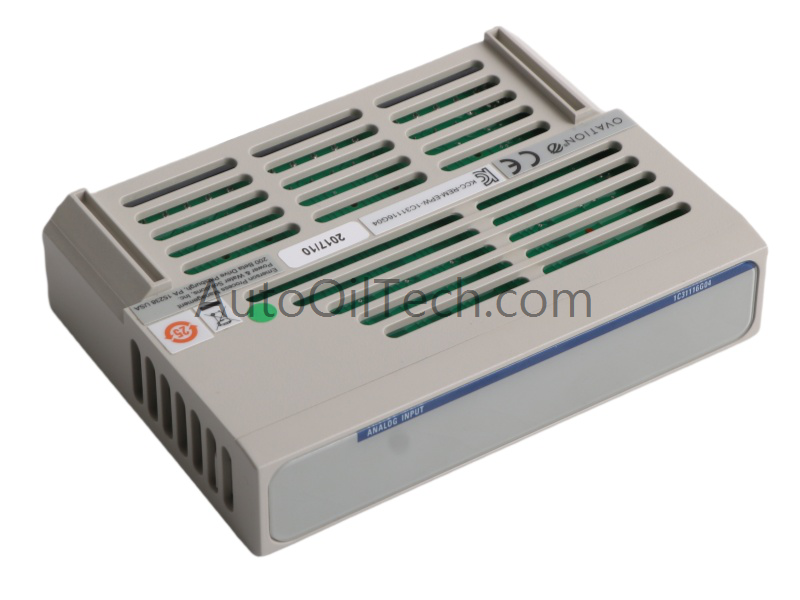

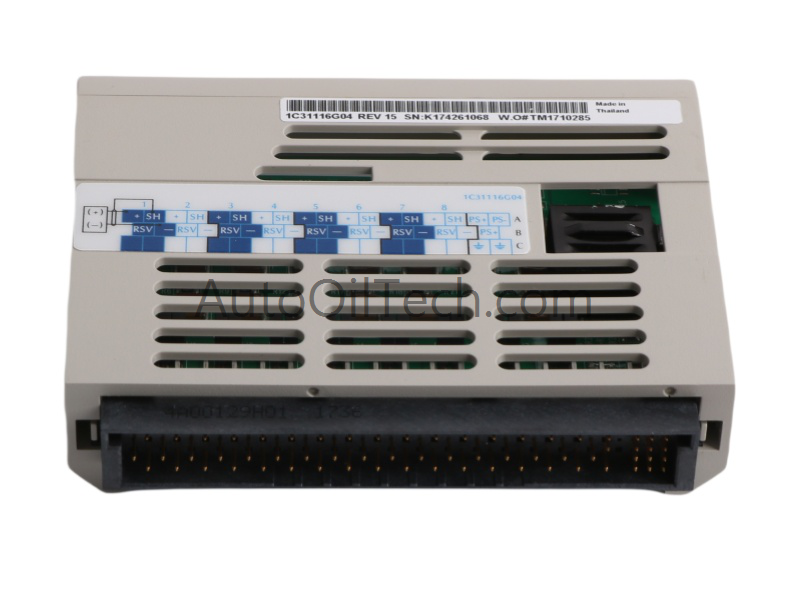

The Emerson Ovation 1C31116G05 is an analog input module designed for Ovation distributed control systems (DCS). It provides accurate acquisition of analog signals from field devices such as transmitters, sensors, and controllers, ensuring precise monitoring and control in industrial automation.
Specifications
Model: 1C31116G05
Type: Analog Input Module
Function: Converts field analog signals into digital data for Ovation controllers
Signal Range: Supports standard ranges (e.g., 0–10 V, 4–20 mA depending on configuration)
Power Supply: 24 VDC nominal (system dependent)
Operating Temperature: -40 °C to +70 °C
Storage Temperature: -40 °C to +85 °C
Shock Resistance: 10 g half-sine wave for 11 ms
Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
Airborne Contaminants: ISA-S71.04 Class G3 compliant
Relative Humidity: 5–95% non-condensing
Warranty: 12 months
Features
Accurate Signal Acquisition: Provides precise measurement of analog signals for process control.
System Integration: Seamlessly connects with Ovation controllers and DCS architecture.
Industrial Durability: Built to withstand harsh environments, shock, and vibration.
Hazardous Area Certified: Suitable for Zone 2 and Class I Div. 2 installations.
Compact Design: Optimized for rack/panel installation.
Reliable Performance: Ensures long-term stability in mission-critical automation.
