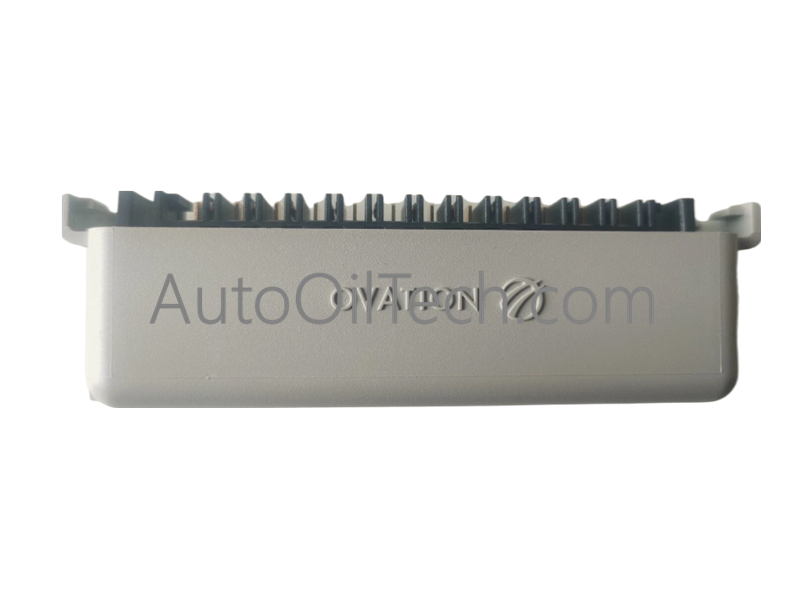

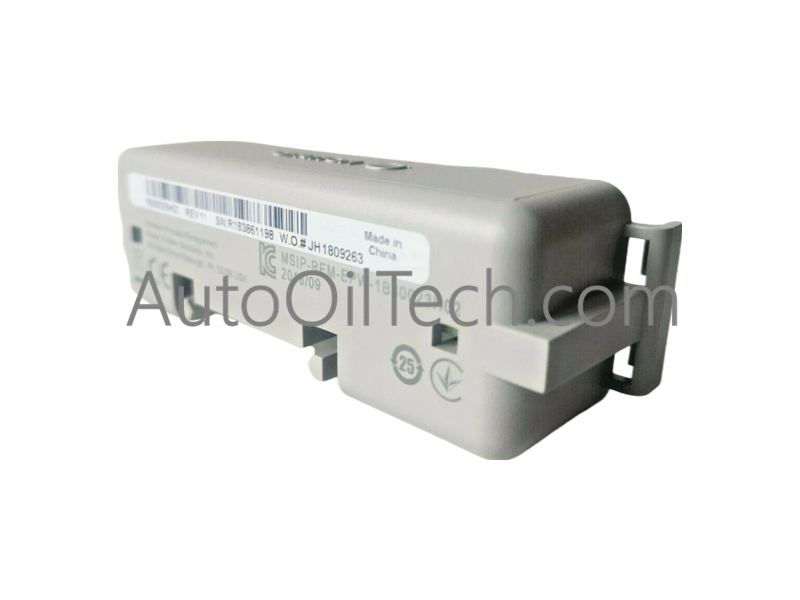

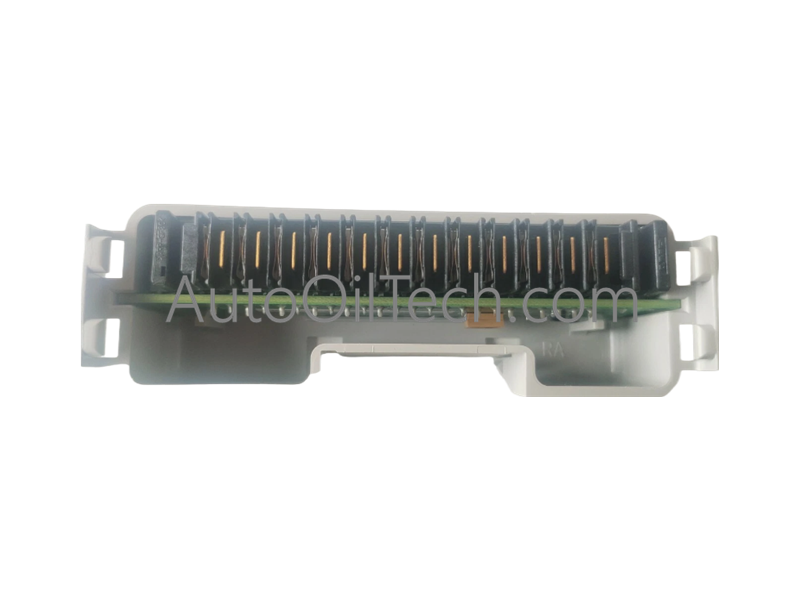

The 1B30023H02 bus terminator module from Emerson’s Ovation series is a critical component for distributed control systems (DCS). It ensures proper signal integrity by terminating the I/O bus, preventing electrical reflections, and maintaining reliable communication between devices.
Technical Specifications
Manufacturer: Emerson (Ovation)
Model: 1B30023H02
Product Type: Bus Terminator Module
System Compatibility: Ovation DCS platforms
Functionality:
Terminates the I/O bus to absorb electrical reflections
Improves signal integrity and prevents data corruption
Ensures accurate data transmission between devices
Dimensions: ~6 × 12.5 × 6.3 cm
Weight: 0.3kg
Origin: USA
Condition: New, in stock
Application
The 1B30023H02 is widely used in Ovation DCS installations across power generation, petrochemical, and water treatment industries. It is essential for maintaining bus communication reliability and preventing signal distortion in large-scale automation systems.
FAQ
Q: What is the main function of the 1B30023H02? A: It terminates the I/O bus to prevent signal reflections and maintain communication integrity.
Q: Is this module necessary for all Ovation systems? A: Yes, bus terminators are required at the end of I/O bus segments to ensure proper operation.
Q: What certifications does it carry? A: CE and RoHS compliance for industrial use.
