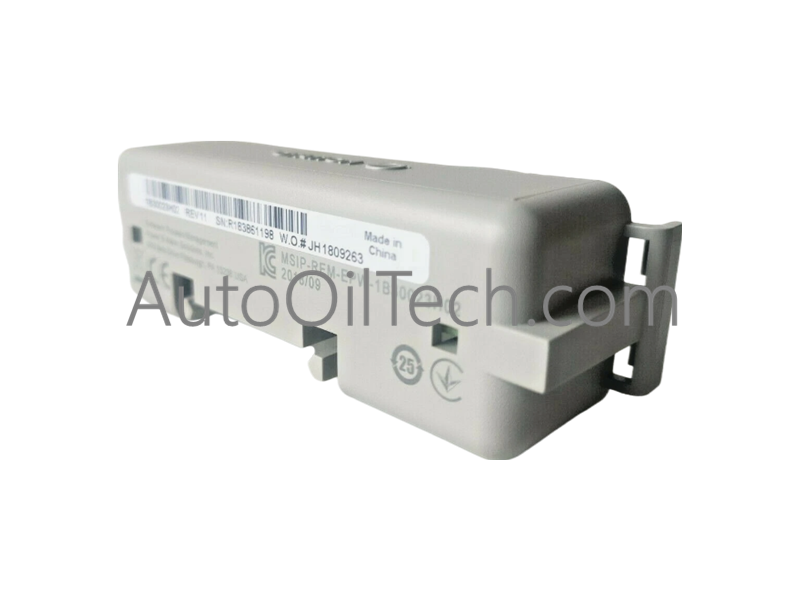

The 1B30023H01 bus terminator module from Emerson’s Ovation series is a high-performance I/O bus terminator designed to ensure proper signal integrity in distributed control systems (DCS).
Technical Specifications
Manufacturer: Emerson (Ovation)
Model: 1B30023H01
Product Type: I/O Bus Terminator Module
System Compatibility: Ovation DCS platforms
Termination Impedance: 120 Ω
Reference Voltage: 5.0 VDC
Power Consumption: 100 mA
Power Supply Requirement: +24 VDC
Mounting Type: DIN-rail
Dimensions: 100 × 50 × 25 mm
Weight: 0.2 kg
Installation Location: End of I/O branch (A or B side)
Protection Rating: IP20
Warranty: 12 months
Country of Origin: USA
Application
The 1B30023H01 is widely used in Ovation DCS installations across power generation, petrochemical, and water treatment industries. It ensures reliable bus communication by eliminating signal distortion and maintaining data integrity in high-speed control applications.
FAQ
Q: What is the main function of the 1B30023H01? A: It terminates the I/O bus to prevent signal reflections and maintain communication integrity.
Q: Where should the module be installed? A: At the end of the I/O branch (A or B side) in Ovation systems.
Q: Is this module suitable for harsh environments? A: Yes, it is designed with industrial-grade components and operates reliably under temperature extremes and airborne contaminant conditions.
