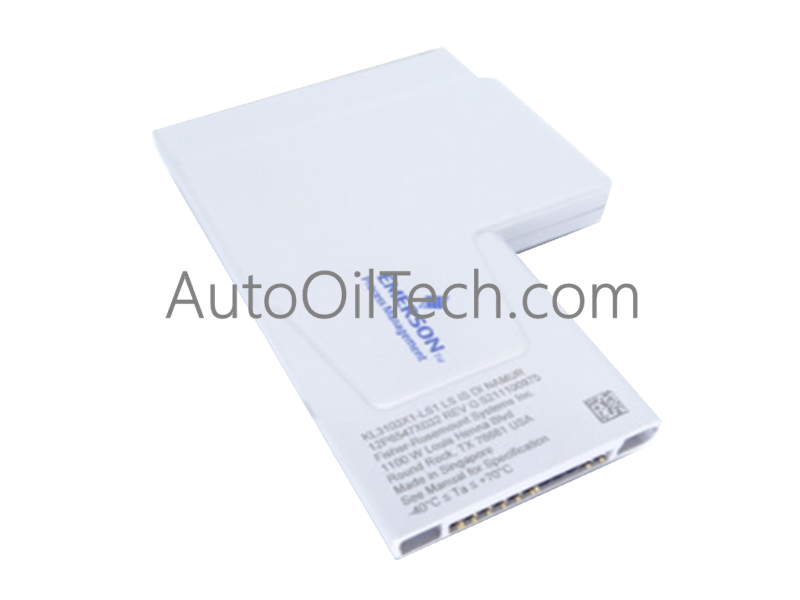

Emerson KL3103X1-LS1 LS Discrete Input 24 VDC Dry Contact CHARM

Description

The Emerson KL3103X1-LS1 is a Discrete Input (DI) Characterization Module (CHARM) designed for the DeltaV LS (Logic Solver) series. This module is specifically engineered to interface with 24 VDC dry contact field devices within a Safety Instrumented System (SIS).

Specifications

• Model Number: KL3103X1-LS1
• Input Type: Discrete Input (DI) for 24 VDC Dry Contacts
• CHARM Bus Power: +6.3 VDC at 32 mA

• Field Circuit Power: +24 VDC at 10 mA
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Humidity Limits: 5% to 95% Non-Condensing
• Shock Protection: 10g ½ Sinewave for 11ms

• Vibration Rating: 1mm Peak to Peak (2 to 13.2Hz); 0.7g (13.2 to 150Hz)

• Airborne Contaminants: ISA-S71.04 – 1985 Class G3 (Harsh/Corrosive)

• Terminal Keying: 2C position for correct module insertion

Features

• Logic Solver Optimized: Specifically designed for the DeltaV LS safety platform to ensure deterministic processing of discrete safety signals.
• Integrated Excitation: Provides the necessary +24 VDC field power directly to the dry contact, simplifying field wiring and reducing external power distribution needs.
• Electronic Marshalling: Enables any signal type to be landed on any terminal block, allowing for rapid I/O reconfiguration without rewiring.
• Corrosive Environment Protection: Features a G3-rated conformal coating, making it highly resistant to airborne contaminants in aggressive industrial locations.

• Hot-Swap Capability: Allows for the replacement of individual modules while the rest of the safety system remains operational, minimizing downtime.
• Mechanical Coding: The 2C terminal block keying ensures that only compatible DI modules can be inserted into the base, preventing accidental hardware mismatches.
