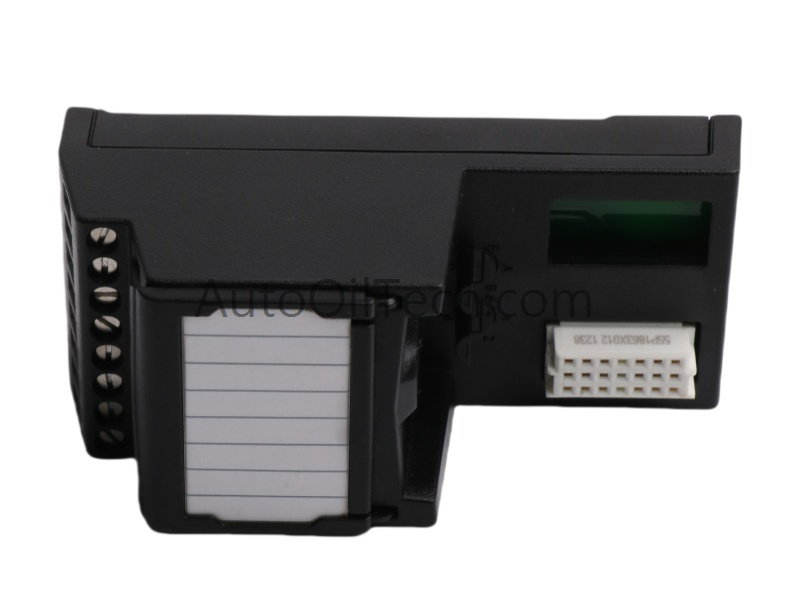

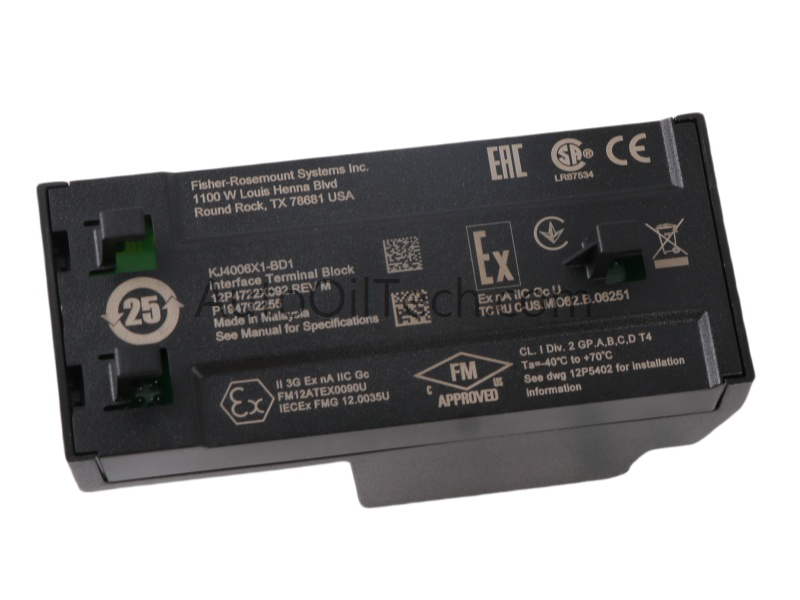

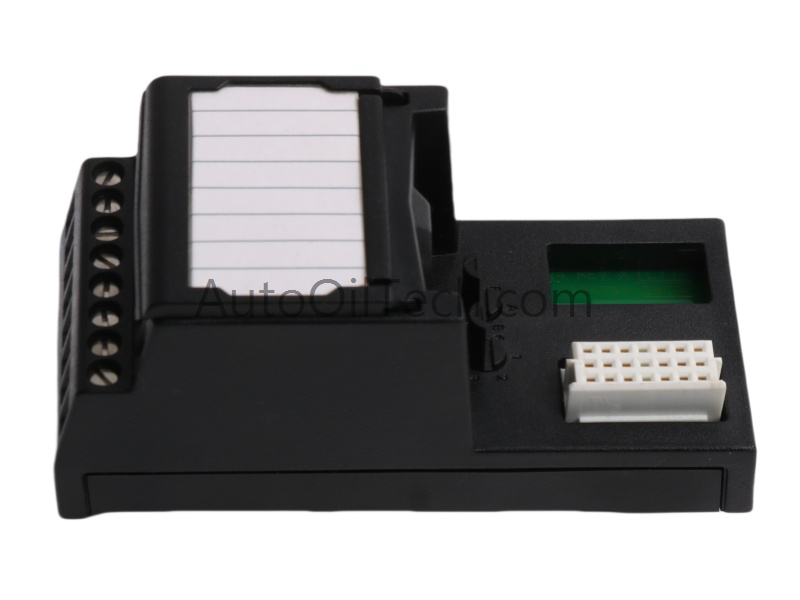

The KJ4006X1-BF1 12P4728X052 SE4001S2T2B4 redundant AI terminal block from Emerson’s DeltaV™ M-Series I/O subsystem is a compact and durable solution for reliable analog input connectivity. Designed to handle 4–20 mA DC signals with input impedance ≤ 250 Ω, it supports both standard and extended ranges (-5 mA to +25 mA), ensuring accurate data acquisition in demanding industrial environments.
Technical Specifications
Manufacturer: Emerson
Model Number / Order Code:KJ4006X1-BF1 12P4728X052 SE4001S2T2B4
Product Type: Redundant AI 8-Channel Terminal Block
Condition: Brand New
System Compatibility: DeltaV™ M-Series / DCS systems
Range of Product: DeltaV™ M-Series I/O Subsystem
Weight: 0.2 kg
Dimensions: 16.8 × 4.2 × 6.8 cm
HS Code: 8537101190
Minimum Order Quantity (MOQ): 1
Origin: USA
Availability: In Stock
Lifecycle Status: Discontinued as of December 31, 2018
Operating Voltage: 30 VDC field power, 200 mA
Temperature Range: -40°C to +70°C
Shock Resistance: 10g, ½ sinewave for 11 ms
Vibration Resistance: Compliant with industrial standards
Humidity Tolerance: 95% non-condensing
Contaminant Standard Compliance: ISA-S71.04 G3
Communication Interface: Ethernet router support
Functional Overview
This redundant AI terminal block enhances system reliability by continuously monitoring input and power conditions with built-in diagnostics. Operators receive immediate alerts to deviations, reducing downtime and improving system integrity. Its compact design optimizes cabinet space while maintaining robust connectivity.
Application Scenarios
Oil & gas facilities requiring stable analog input monitoring
Power generation plants with continuous process control needs
Chemical processing industries operating under harsh conditions
Distributed control systems demanding redundancy and reliability
FAQ
Q: What signal range does the KJ4006X1-BF1 support? A: It supports 4–20 mA DC signals, with extended range from -5 mA to +25 mA.
Q: Can this terminal block be used in high-vibration environments? A: Yes, it is designed to withstand vibration and shock levels up to 10g.
Q: Is this product still available despite being discontinued? A: Yes, limited stock remains available for replacement and maintenance purposes.
