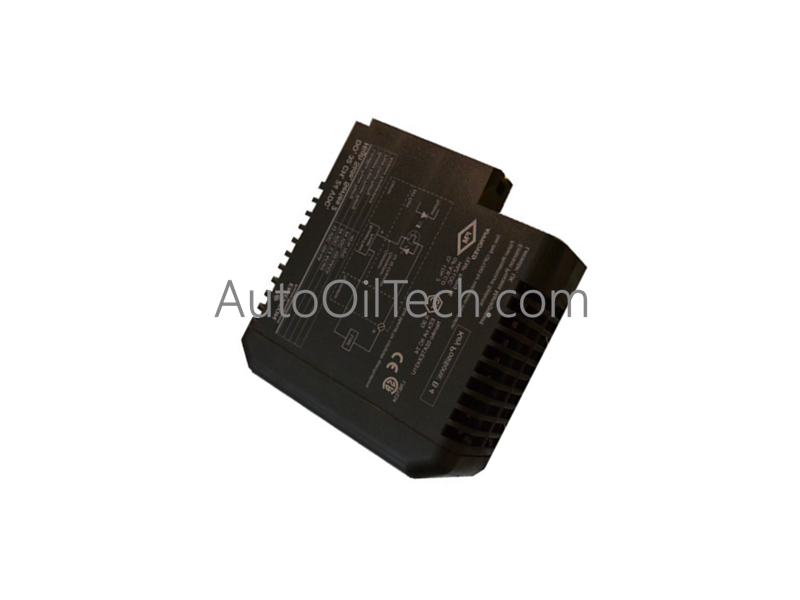

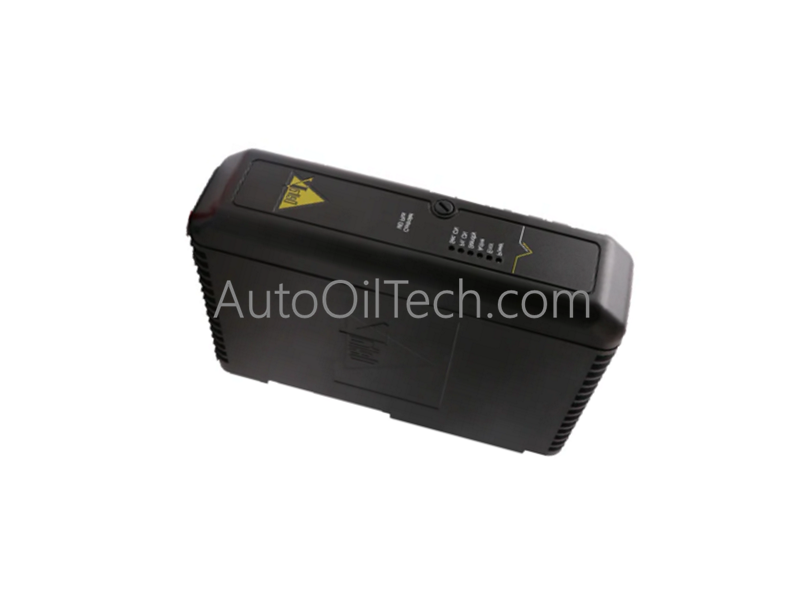

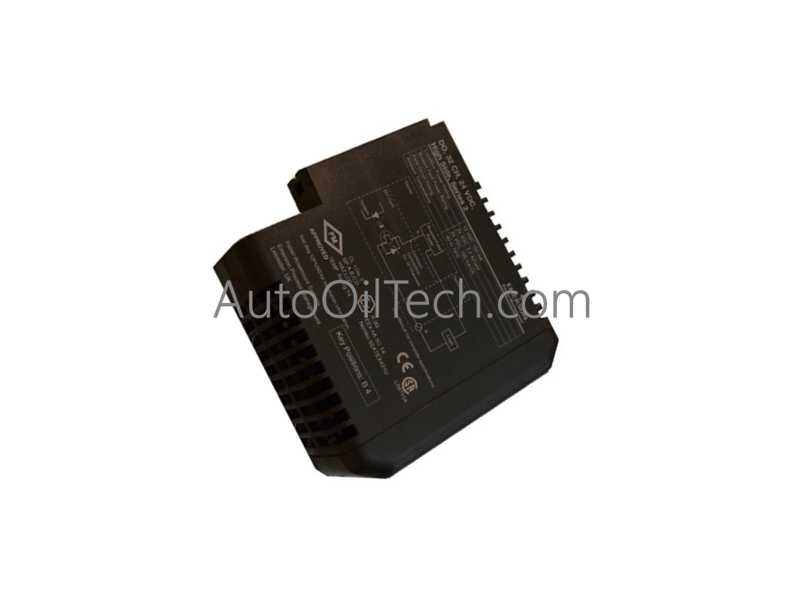

Emerson KJ3242X1-BA1 Fieldbus H1 Module

The Emerson KJ3242X1-BA1, also cataloged as the KJ3242X1-BA1 Fieldbus H1 Card, operates as a dedicated hardware component for digital fieldbus device communication within Emerson DeltaV platforms.

Hardware Specifications

Fieldbus Communication & DCS Process Control Integration

• FOUNDATION Fieldbus & Profibus PA Connectivity: Executes high-speed digital communications across FOUNDATION Fieldbus H1 networks, interfacing field transmitters and positioners directly to DeltaV control loops.
• 4-20 mA HART & Fieldbus Bus Coexistence: Manages multi-drop H1 fieldbus segment communication while integrating seamlessly alongside 4-20 mA HART instrumentation channels across standard system backplanes.
• Channel-to-Channel Isolation: Incorporates internal galvanic isolation barriers across individual fieldbus ports to prevent ground loops and protect backplane communications from field voltage surges.

Frequently Asked Questions

Q: What are the primary electrical power requirements for the KJ3242X1-BA1 Fieldbus H1 module?

A: The card draws 300 mA at 12 VDC from the LocalBus power rail and requires 9 to 32 VDC at 12 mA per port for fieldbus segment communication.

Q: What operating temperature environment is supported by this Series 2 module?

A: The module is specified for reliable operation in industrial enclosure temperatures ranging from -40 to 70 deg C.

Field Installation Guidelines

• Verify that the LocalBus power supply is de-energized or confirmed stable before inserting the card into the Series 2 carrier slot.
• Align the card edge connectors with the carrier guide channels to prevent pin damage during insertion.
• Route FOUNDATION Fieldbus H1 segment cables using dedicated shielded twisted-pair conductors away from high-voltage AC lines.
• Terminate all fieldbus cable shield drain wires at a single chassis earth point on the enclosure ground bus bar.
