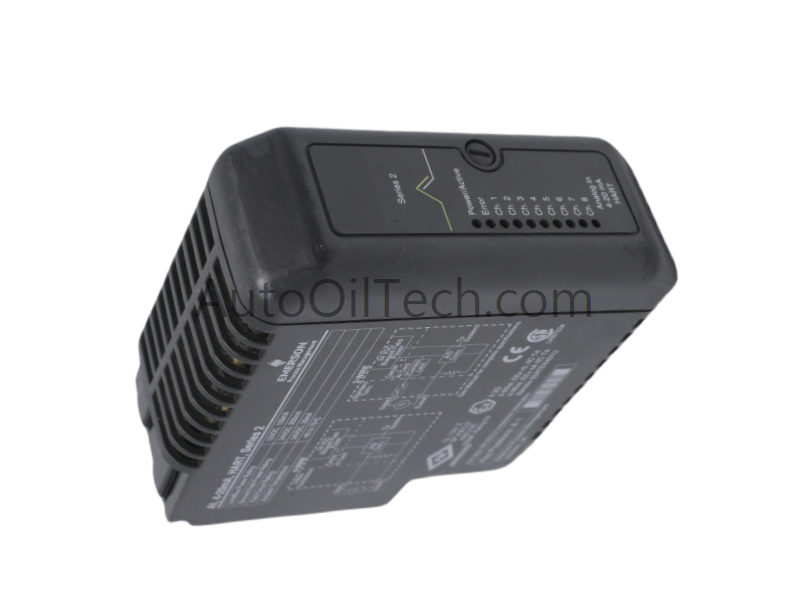

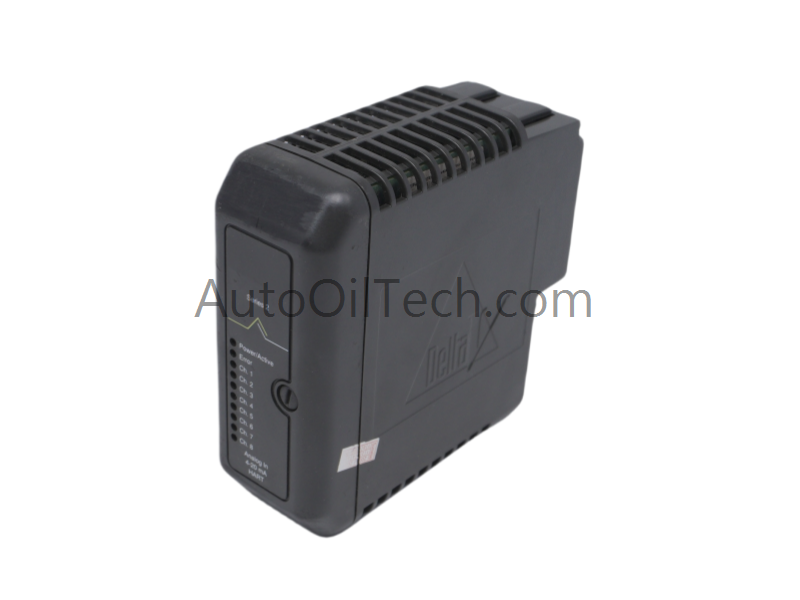

The EMERSON KJ3222X1-BA1 12P2533X152 Analog Input HART Module is part of the DeltaV™ M-series I/O subsystem, designed to deliver precise signal acquisition and seamless integration with Emerson’s distributed control system (DCS). This module supports HART-enabled devices, ensuring advanced diagnostics and reliable monitoring for critical industrial processes.
Technical Specifications
Manufacturer: Emerson
Model Number:KJ3222X1-BA1 12P2533X152
Module Type: Analog Input HART Module
Condition: Brand New
Range of Product: DeltaV™ M-series I/O Subsystem
Weight: 0.2 kg
Dimensions: 4.4 × 10.8 × 12.7 cm
HS Code: 8537101190
Minimum Order Quantity (MOQ): 1
Origin: USA
System Compatibility: DeltaV DCS
Communication Interface: Ethernet router
Lifecycle Status: Discontinued on Dec 31, 2018
Availability: In Stock
Functional Overview
The KJ3222X1-BA1 12P2533X152 module is engineered for high-accuracy analog input acquisition with HART protocol support. Key features include:
24V DC powered analog input channels with HART communication capability
High-speed signal processing for real-time monitoring and diagnostics
Electrical isolation to protect against voltage fluctuations and noise interference
Compact design for space-efficient installation with high input density
Rugged construction for reliable operation in harsh industrial environments
Application Scenarios
This analog input HART module is widely used in:
Oil & Gas – monitoring wellhead instrumentation and pipeline sensors
Chemical Processing – precise acquisition of process variables for safety and efficiency
Power Generation – reliable input monitoring for turbines and auxiliary systems
Manufacturing – ensuring accurate signal acquisition for automation processes
FAQ
Q: Is the KJ3222X1-BA1 still available? A: Although discontinued on December 31, 2018, new stock remains available.
Q: What communication protocols are supported? A: The module supports 4–20 mA analog signals and HART-enabled devices.
Q: Can this module be expanded with other DeltaV M-series components? A: Yes, it is fully compatible with the DeltaV™ M-series I/O subsystem.
