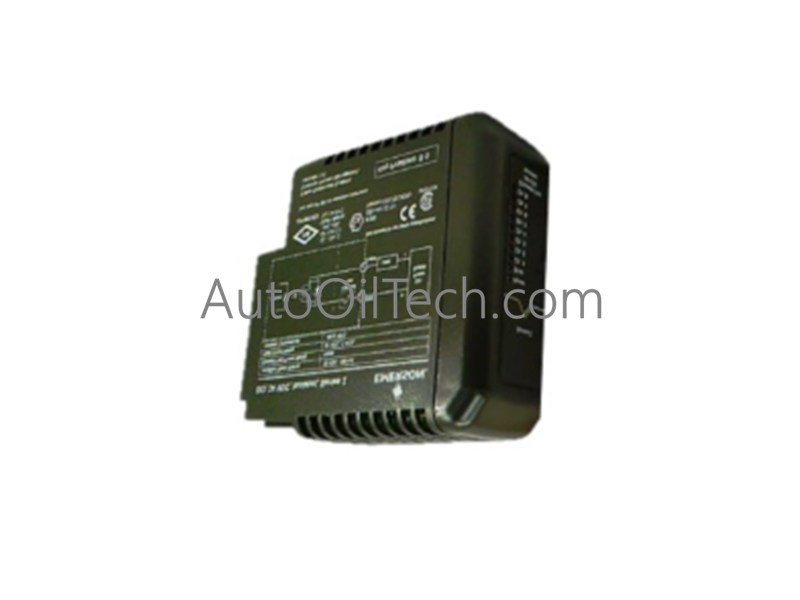

The Emerson KJ3221X1-BK1, also cataloged as the KJ3221X1-BK1 AO 8-Channel 4-20MA HART Card, operates as a dedicated hardware component for analog output control within DeltaV distributed control networks.
Suffix Breakdown & Model Matrix
KJ3221X1-BK1: Complete base assembly including standard coating and terminal block configuration for 8-channel analog output operations.
12P4704X032: Manufacturing part number and revision identifier associated with the printed circuit board assembly.
Hardware Specifications
Parameter
Specification
Model
KJ3221X1-BK1
Brand
Emerson
Origin
United States
Weight
0.55 lbs
Dimensions
Standard DeltaV card form factor
Operating Temp
-40 to 60 deg C
Power Consumption
5.0 W max from backplane
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
Designed for high-density process control architectures, the module executes precision analog output control while maintaining rigorous channel-to-channel isolation. The circuitry interfaces directly with field actuators via a 4-20 mA HART loop protocol, enabling simultaneous digital communication and analog signal transmission for advanced valve and actuator diagnostics. Integrated loop monitoring safeguards against open-loop faults, while galvanic isolation barriers prevent ground loops across distributed node clusters in industrial environments.
Frequently Asked Questions
Q: Does the KJ3221X1-BK1 support online replacement and hot-swapping?
A: Yes. The module supports hot-swapping within DeltaV redundant carrier architectures, allowing replacement under power without interrupting adjacent control loops.
Q: How is galvanic isolation managed across the analog output channels?
A: The module incorporates optical and magnetic isolation barriers between the field side and system logic, providing robust protection against high common-mode voltage transients.
Field Installation Guidelines
Verify that the corresponding slot on the DeltaV I/O carrier is cleared of debris and properly grounded.
Align the module keying pins with the carrier slot to prevent incorrect insertion.
Push the module firmly into the carrier until the backplane connectors fully engage.
Secure the module using the integrated retention screws to withstand industrial vibration profiles.
Connect field wiring to the designated terminal block, ensuring proper shield termination to mitigate electromagnetic interference.
