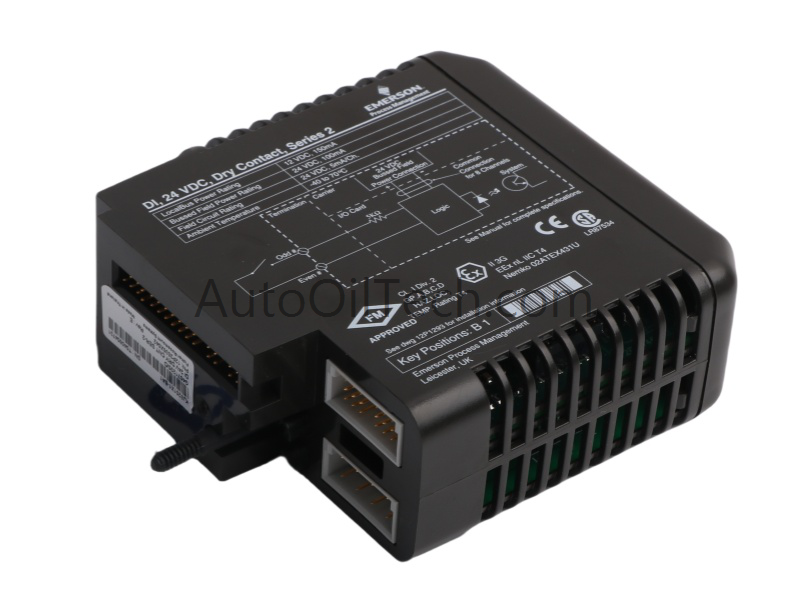

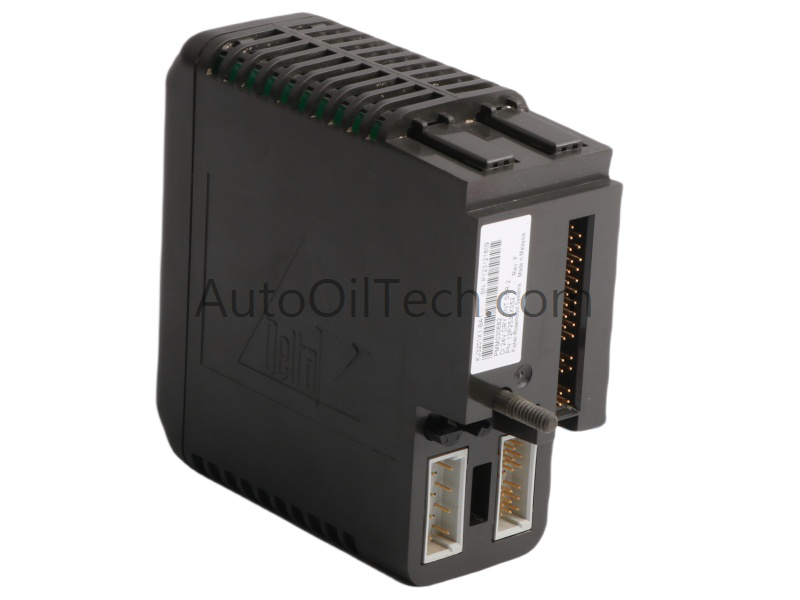

The Emerson KJ3206X1-BA1 DI 8-Channel 24 VDC Isolated Module provides secure and reliable digital input functionality for distributed control systems. Designed for rugged industrial environments, this module ensures accurate signal acquisition and long-term stability, even under extreme operating conditions.
Technical Specifications
Channels: 8 isolated digital input channels
Local Bus Power: 12 VDC at 100 mA
Field Circuit Power: 24 VDC at 5 mA per channel
Operating Temperature: -40 °C to +70 °C
Shock Resistance: 10 g, half-sine wave, 11 ms duration
Vibration Endurance:
1 mm peak-to-peak, 2–13.2 Hz
0.7 g, 13.2–150 Hz
Airborne Contaminants: ISA-S71.04-1985, Class G3
Relative Humidity: 5–95%, non-condensing
Protection Rating: IP20
Terminal Block Key Position: B2
Application Highlights
Reliable digital input for field devices in process automation
Isolated channels reduce cross-talk and improve system safety
Suitable for environments with vibration, shock, and airborne contaminants
Designed for Emerson DeltaV and Ovation control systems
