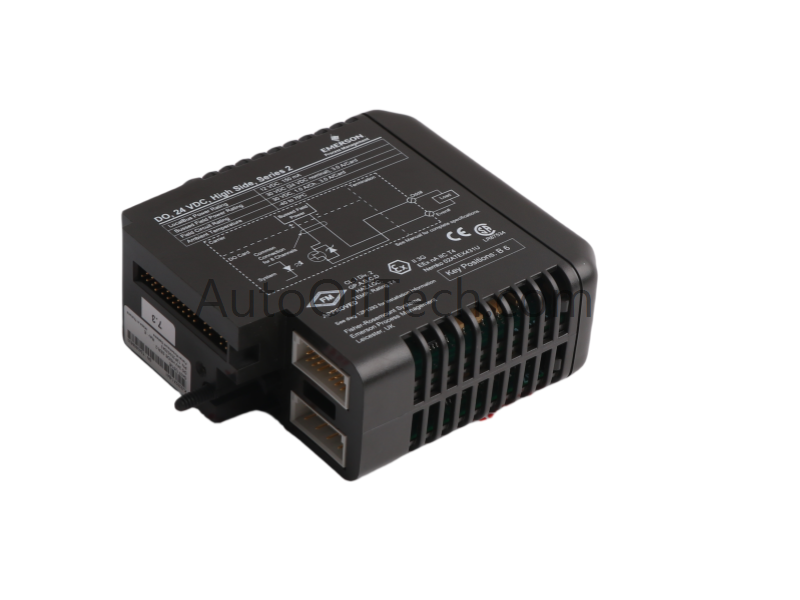

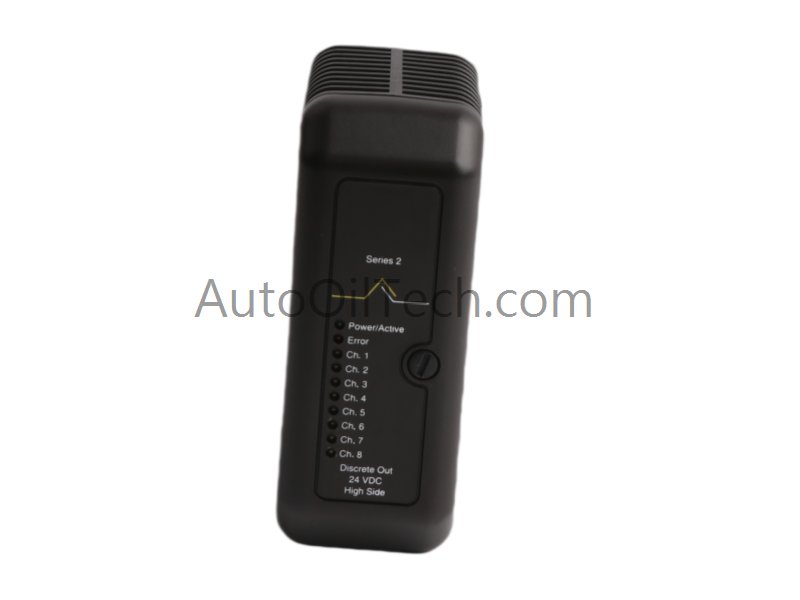

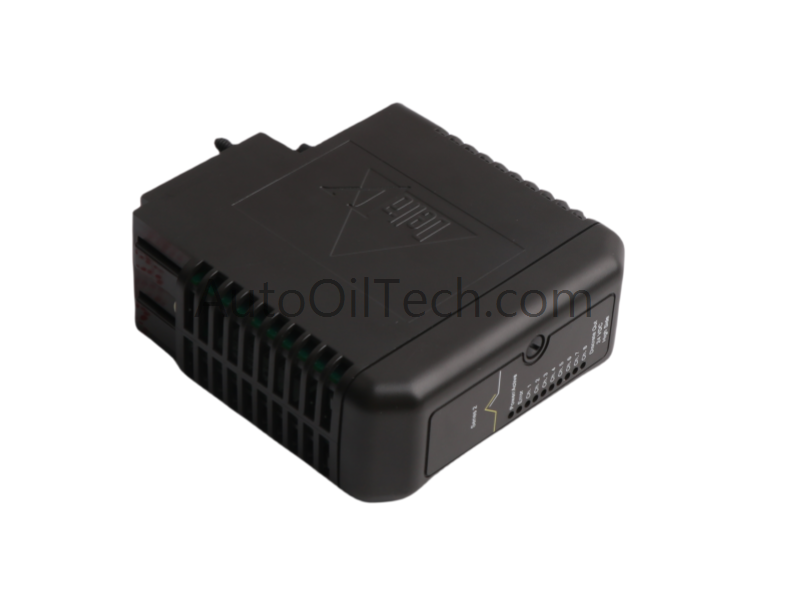

The EMERSON KJ3202X1-BA1 12P2536X042 High Side Output Module is a discrete output card designed for the DeltaV™ M-series I/O Subsystem, delivering reliable 24VDC control signals to field devices such as solenoids, actuators, and relays. It ensures fast, accurate communication between field equipment and the control system, supporting real-time monitoring and process optimization.
Technical Specifications
Specification
Detail
Model Number
KJ3202X1-BA1 12P2536X042
Module Type
High Side Output Module
Manufacturer
EMERSON
System
Distributed Control System (DCS)
Product Range
DeltaV™ M-series
Output Channels
8-channel discrete output
Output Voltage
24 VDC High Side
Communication Interface
Ethernet router
Dimensions
4 × 12.5 × 10.5 cm
Weight
0.18 kg
HS Code
8537101190
Product Origin
USA
Minimum Order Quantity
1
Lifecycle Status
Discontinued on Dec 31, 2018
Availability
In Stock
Applications & Compatibility
The KJ3202X1-BA1 12P2536X042 module is compatible with DeltaV™ M-series systems and supports:
Discrete output control for field devices in process automation
Integration with legacy and modern DeltaV installations
Replacement for discontinued EMERSON high side output modules
Deployment in oil & gas, chemical, and power generation sectors
