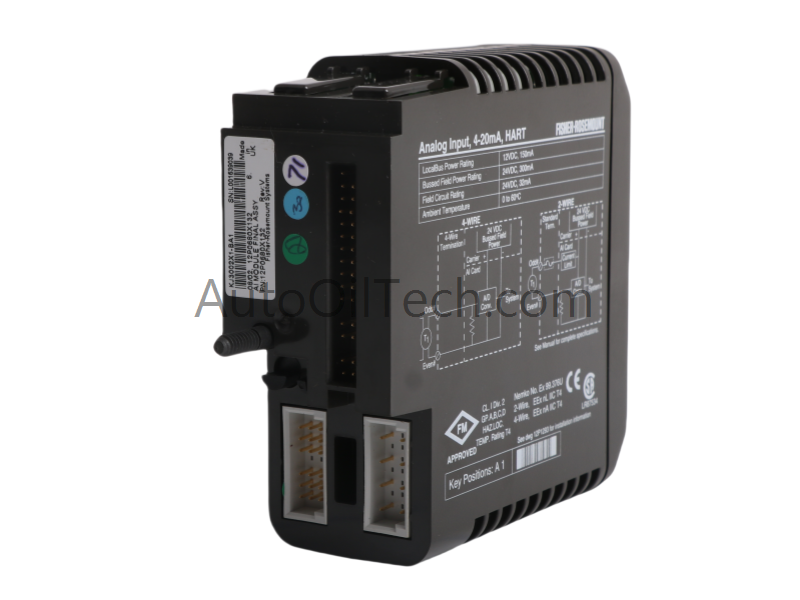

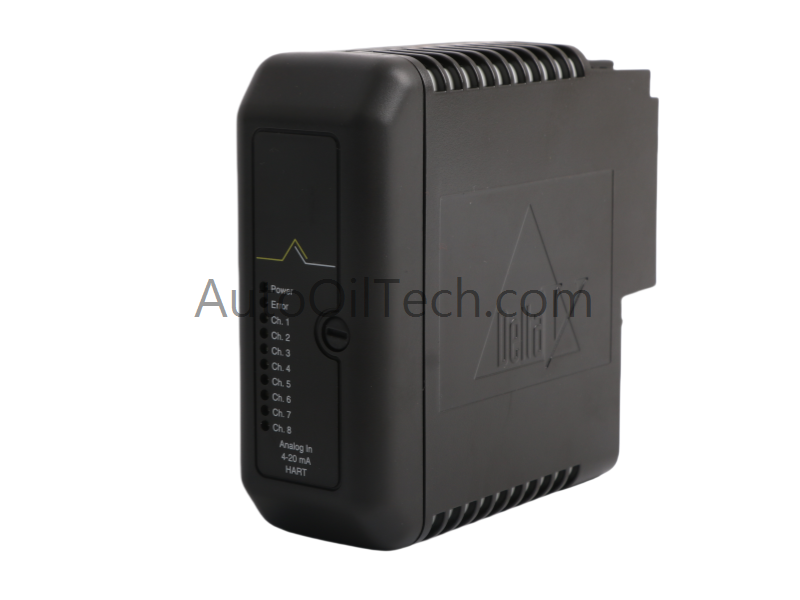

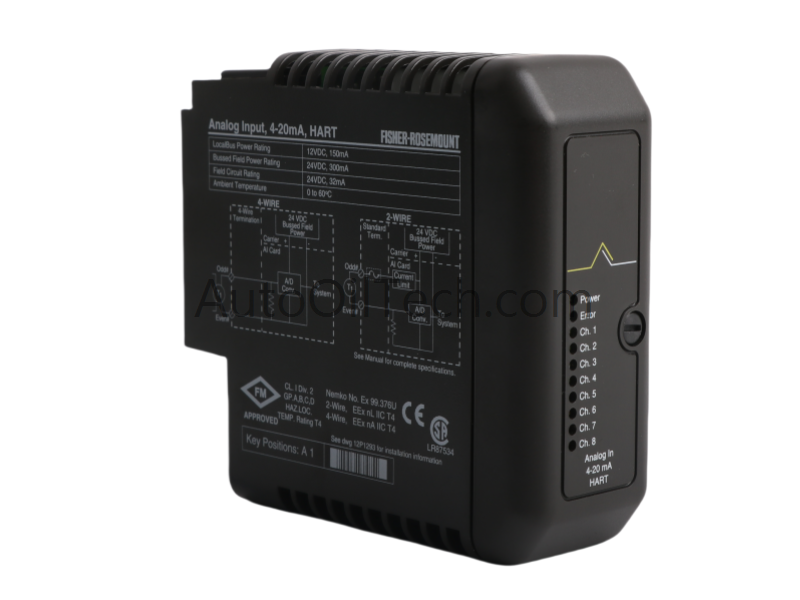

The KJ3002X1-BA1 12P0680X122 Analog Input Module from Emerson’s DeltaV™ M-series I/O subsystem is a high-performance 8-channel input card designed for precise acquisition of process signals in distributed control systems (DCS). It ensures reliable monitoring of critical variables such as temperature, pressure, and flow, making it essential for industrial automation environments.
Technical Specifications
Manufacturer: Emerson
Model Number:KJ3002X1-BA1 12P0680X122
Product Type: Analog Input Module
Series: DeltaV™ M-series I/O subsystem
System Compatibility: DeltaV™ DCS
Condition: Brand New
Weight: 0.20 kg
Dimensions: 4.3 × 12.5 × 10.5 cm
HS Code: 8537101190
Minimum Order Quantity (MOQ): 1
Origin: USA
Availability: In Stock
Discontinued Date: December 31, 2018
Communication Service: Ethernet router
Functional Overview
The Emerson KJ3002X1-BA1 12P0680X122 module supports 4–20 mA signal inputs and is fully compatible with HART-enabled field devices, enabling advanced diagnostics and remote configuration. Its high-resolution signal processing ensures accurate data acquisition, while built-in electrical isolation minimizes noise interference for stable operation in harsh industrial conditions.
Designed for durability, the module operates across a wide temperature range (-40°C to +70°C) and up to 95% relative humidity. Seamless integration with DeltaV systems enhances automation efficiency, improves operational control, and ensures long-term reliability.
Application Scenarios
Oil & Gas process monitoring
Power generation automation systems
Chemical and petrochemical plant control
Manufacturing environments requiring precise analog input acquisition
FAQ
Q: How many channels does this module support? A: The KJ3002X1-BA1 12P0680X122 supports 8 analog input channels.
Q: Is it compatible with HART devices? A: Yes, it supports HART-enabled field devices for diagnostics and remote configuration.
Q: What environmental conditions can it withstand? A: It operates reliably between -40°C and +70°C, with up to 95% relative humidity.
