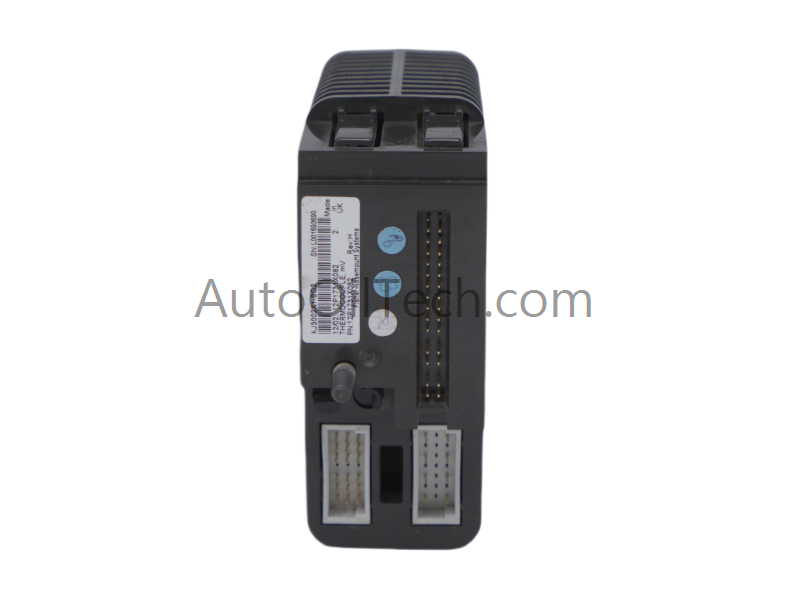

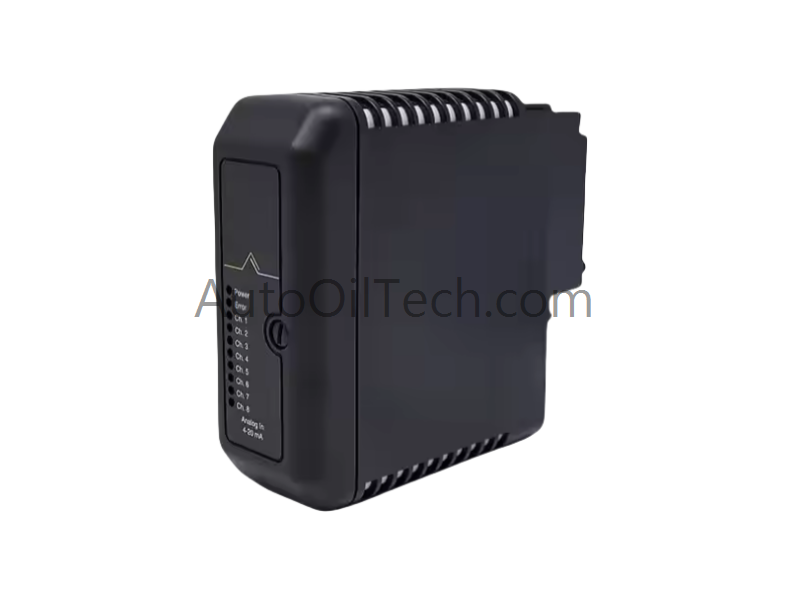

The EMERSON KJ3002X1-BA1 12P0680X072 VE4003S2B2 Analog Input HART Module is part of the DeltaV™ M-series I/O subsystem, designed for precise data acquisition and seamless integration with Emerson’s distributed control system (DCS). This 8-channel module supports 4–20 mA input signals and HART-enabled devices, providing advanced diagnostics and reliable monitoring for critical process applications.
Technical Specifications
Manufacturer: Emerson
Model Number:KJ3002X1-BA1 12P0680X072 VE4003S2B2
Module Type: Analog Input HART Module
Condition: Brand New
Range of Product: DeltaV™ M-series I/O Subsystem
Weight: 0.2 kg
Dimensions: 8.1 × 7.9 × 8.8 cm
HS Code: 8537101190
Minimum Order Quantity (MOQ): 1
Origin: USA
System Compatibility: DeltaV DCS
Communication Interface: Ethernet router
Lifecycle Status: Discontinued on Dec 31, 2018
Availability: In Stock
Functional Overview
The KJ3002X1-BA1 12P0680X072 VE4003S2B2 module is engineered for high-accuracy input signal acquisition. Key features include:
8-channel analog input capability with HART protocol support
Superior signal resolution and accuracy for process control
Electrical isolation to protect against noise and interference
Rugged design supporting -40°C to +70°C operating range and up to 95% humidity
Seamless integration with DeltaV DCS for real-time monitoring and diagnostics
Application Scenarios
This analog input HART module is widely used in:
Oil & Gas – monitoring wellhead and pipeline instrumentation
Power Generation – precise acquisition of turbine and boiler signals
Chemical Processing – reliable monitoring of critical process variables
FAQ
Q: Is the KJ3002X1-BA1 still available? A: Although discontinued on December 31, 2018, new stock remains available.
Q: What communication protocols are supported? A: The module supports 4–20 mA signals and HART-enabled devices.
Q: Can this module be expanded with other DeltaV M-series components? A: Yes, it is fully compatible with the DeltaV™ M-series I/O subsystem.
