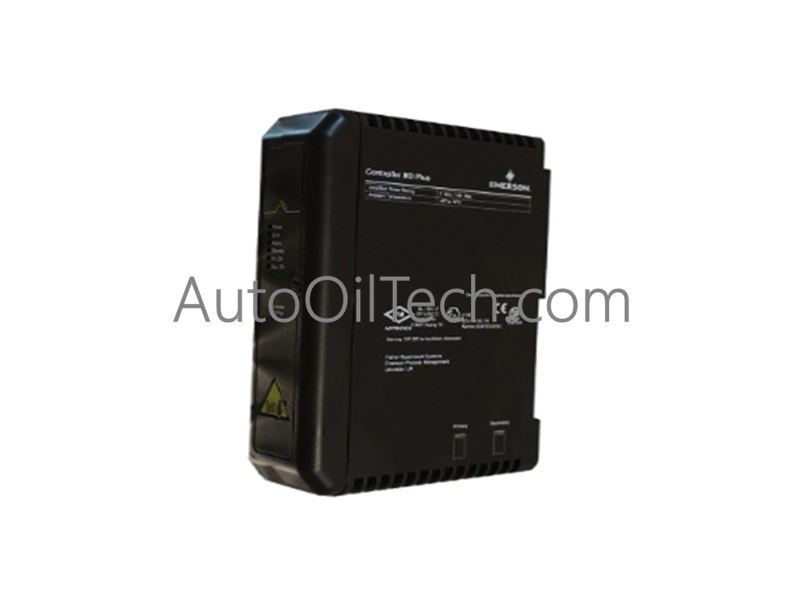

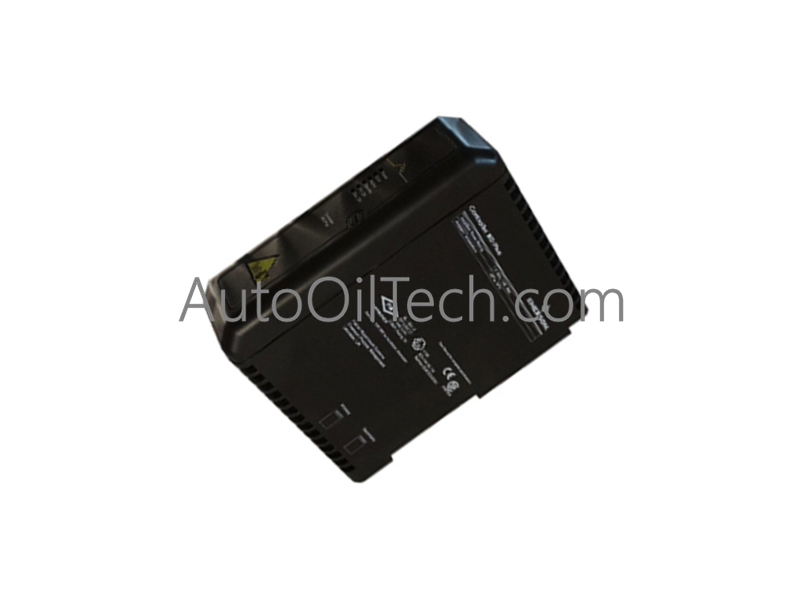

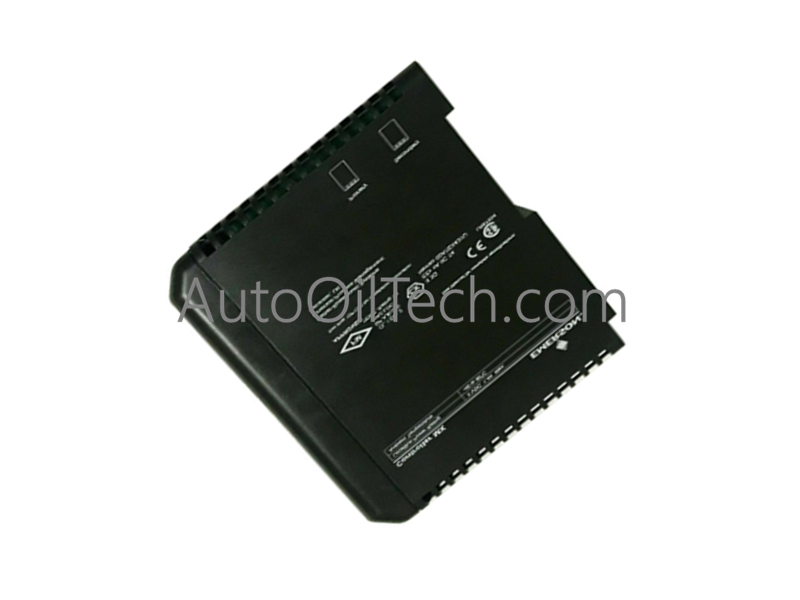

Configured for discrete load execution in DeltaV distributed control networks, the Emerson KJ3001X1-BG1, also cataloged as the KJ3001X1-BG1 Discrete Output Module, provides direct electrical switching for 8-point isolated field loops.
Suffix Breakdown & Model Matrix
KJ3001X1-BG1: Base catalog model designation for the 8-point isolated 24 VDC discrete output module assembly.
12P0557X162: Manufacturing part number and assembly revision identifier associated with the printed circuit board.
Hardware Specifications
Parameter
Specification
Model
KJ3001X1-BG1
Brand
Emerson
Origin
United States
Weight
0.42 lbs
Dimensions
Standard DeltaV card form factor
Operating Temp
-40 to 60 deg C
Power Consumption
12 VDC at local bus power rating
Output Channels
8 points, isolated
Voltage Rating
24 VDC
Channel-to-Channel Isolation and Loop Integrity
Within high-density process automation architectures, the module executes discrete switching operations while maintaining strict channel-to-channel isolation. This electrical separation protects the local control bus from field-side transients, ground loops, and voltage surges. By isolating each output channel, the circuitry ensures that a fault condition on a single field load remains contained, preventing propagation to adjacent loops or the backplane power supply rail.
Frequently Asked Questions
Q: Does the KJ3001X1-BG1 support hot-swapping during normal operation?
A: Yes. The module supports hot-swapping within a powered DeltaV carrier, allowing removal and replacement without interrupting adjacent I/O loops or requiring a system shutdown.
Q: Are the individual output channels internally fused on this module?
A: No. External fusing must be implemented on the field side to protect against overcurrent conditions exceeding the module's rated switching capacity.
Field Installation Guidelines
Inspect the designated carrier slot for foreign debris and ensure backplane pins are straight and undamaged.
Align the module keying guides with the carrier slot to ensure proper polarity and orientation.
Insert the module evenly into the carrier until the backplane connectors fully engage.
Fasten the integrated retaining screws to secure the module against industrial vibration profiles.
Terminate field wiring to the corresponding terminal block, ensuring proper shielding and grounding to mitigate electromagnetic interference.
