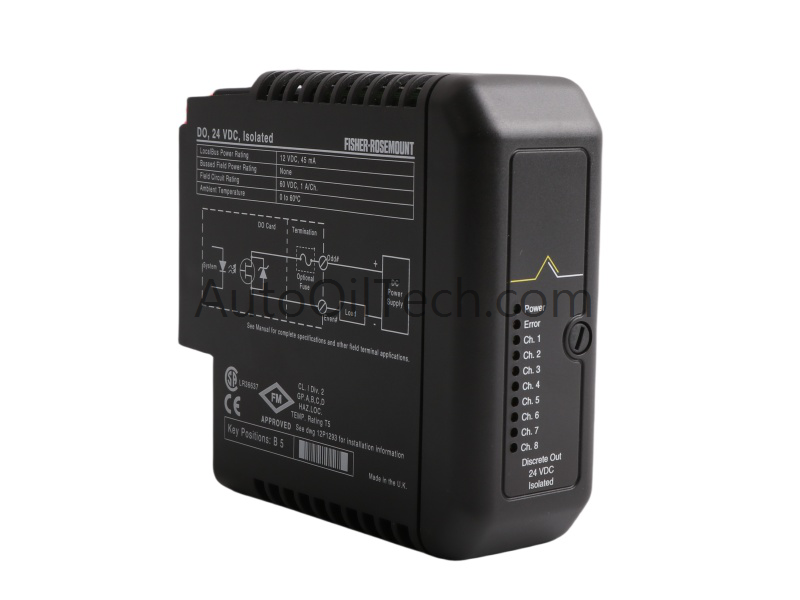

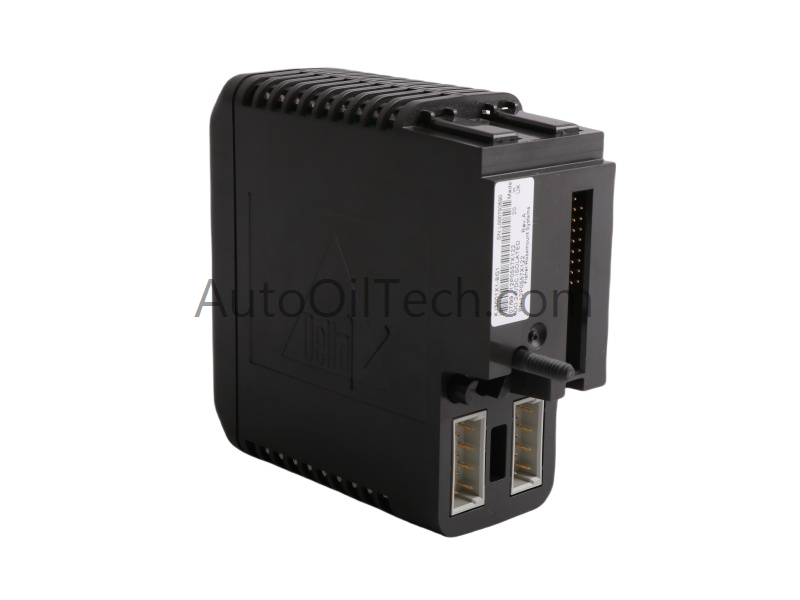

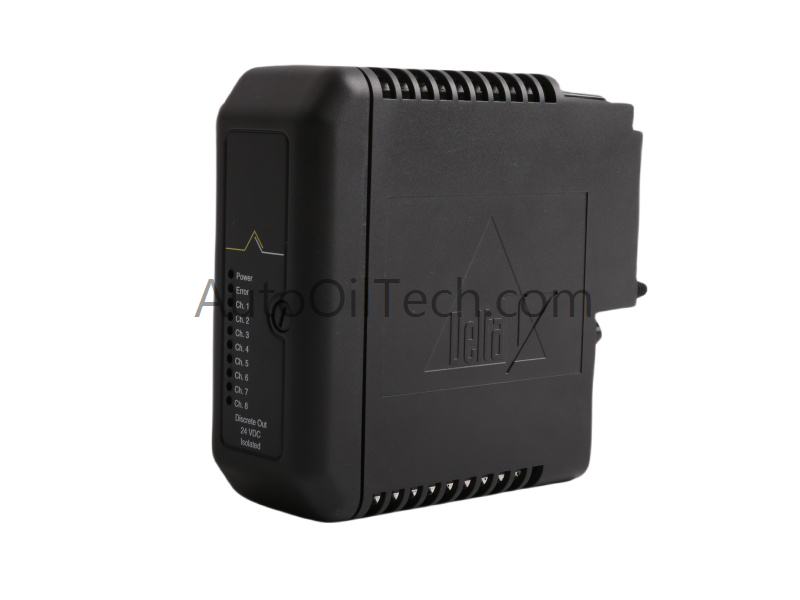

Emerson KJ3001X1-BG1 12P0557X122 VE4002S1T1B1 Digital Output Isolated

Overview

The KJ3001X1-BG1 12P0557X122 VE4002S1T1B1 Digital Output Isolated Module from Emerson is a critical component of the DeltaV SIS™ process safety system. It provides isolated digital outputs for controlling field devices such as actuators, pumps, and valves, ensuring accurate signal delivery while protecting sensitive control systems from electrical interference and ground loops. Although discontinued on December 31, 2018, brand-new units remain available for legacy installations and replacement needs.

Technical Specifications

Functional Role

The KJ3001X1-BG1 12P0557X122 VE4002S1T1B1 module ensures reliable digital output control with electrical isolation, preventing noise and ground loop interference. This isolation enhances system stability and protects sensitive components. It supports both simple on/off operations and complex digital control functions, making it versatile for a wide range of industrial automation tasks.

Application Scenarios

• Oil & gas facilities requiring isolated digital outputs for pump and valve control

• Chemical processing plants with noisy electrical environments

• Power generation facilities implementing safety-critical control systems

• Legacy DeltaV SIS™ installations needing replacement isolated output modules

Advantages

• Isolated digital outputs for interference-free operation

• Protects sensitive control systems from electrical noise and ground loops

• Flexible output configuration for diverse control tasks

• Rugged design ensures durability in harsh industrial environments

• Seamless integration with DeltaV SIS™ software for configuration and diagnostics

FAQ

Q: Is the KJ3001X1-BG1 12P0557X122 VE4002S1T1B1 still supported by Emerson? A: Official support ended after discontinuation in 2018, but brand-new replacement units remain available.

Q: Can this module be used outside DeltaV SIS™ systems? A: It is specifically designed for DeltaV SIS™ architecture; compatibility outside this system is limited.

Q: What alternatives exist for new installations? A: Emerson recommends newer-generation DeltaV SIS™ digital output modules with extended lifecycle support and enhanced diagnostics.
