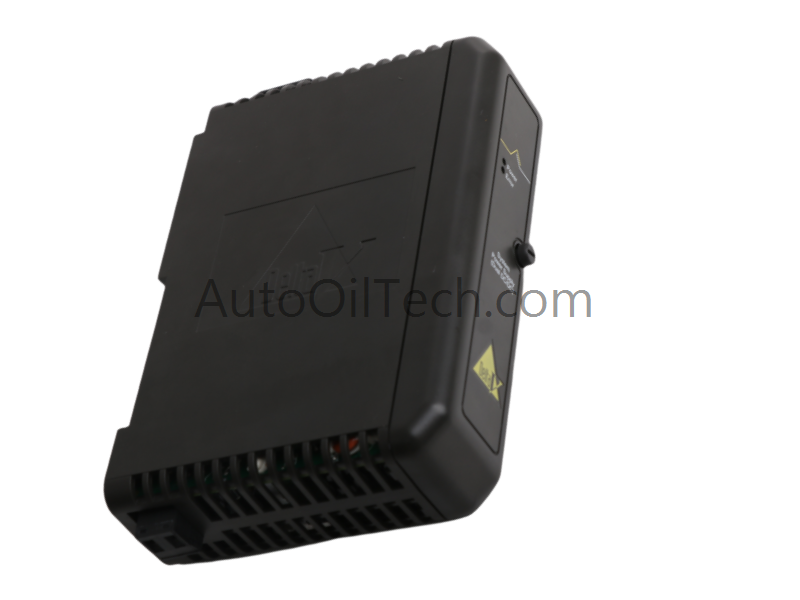

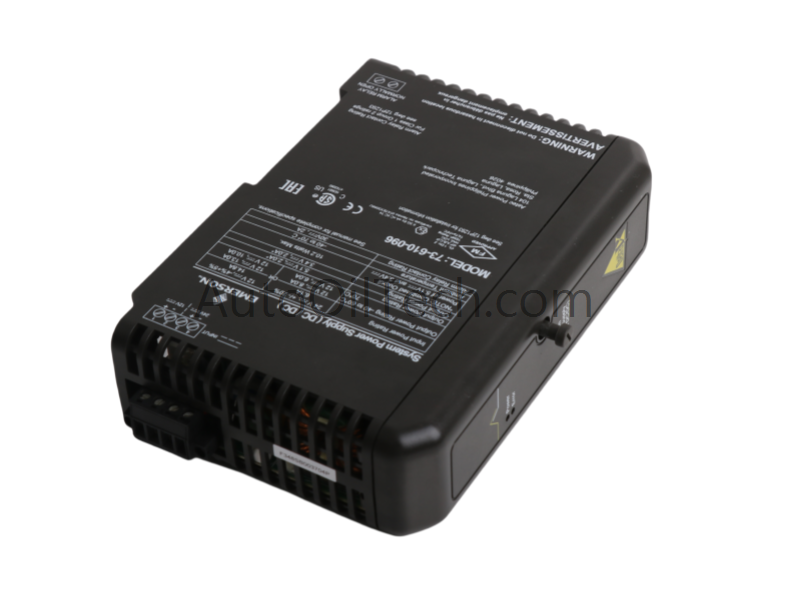

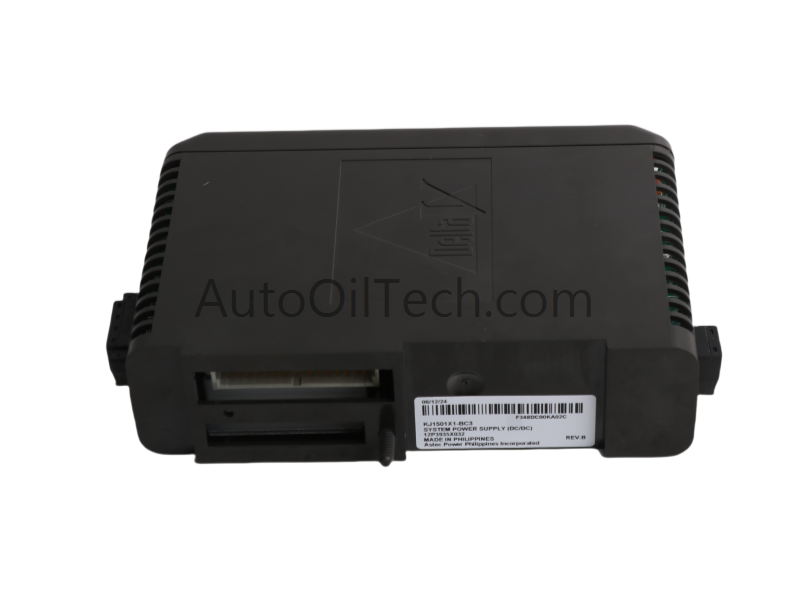

The KJ1501X1-BA1 power supply module from Emerson (Fisher-Rosemount) is designed for DeltaV distributed control systems, delivering stable and regulated power to system components. Built for industrial-grade reliability, it ensures continuous operation under demanding environmental conditions.
Technical Specifications
Manufacturer: Emerson (Fisher-Rosemount)
Model: KJ1501X1-BA1
Product Type: Power Supply Module
System Compatibility: DeltaV control systems
Input Voltage: 24 VDC nominal
Output: Regulated passthrough supply for DeltaV modules
Protection Features: Overvoltage, overload, and short-circuit protection
Environmental Ratings:
Operating Temperature: -40°C to +70°C
Humidity: 5%–95% non-condensing
Shock Resistance: 10 g, half-sine wave for 11 ms
Vibration: 1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz)
Airborne Contaminants: ISA-S71.04-1985 Class G3 compliant
Enclosure Rating: IP20
Weight: Approx. 0.3 kg
Application
The KJ1501X1-BA1 is widely used in DeltaV systems to provide reliable power for controllers, communication modules, and I/O cards. It is suitable for industries such as petrochemical, power generation, and manufacturing, where stable power supply is critical for automation reliability.
FAQ
Q: What is the primary function of the KJ1501X1-BA1? A: It delivers regulated power to DeltaV system modules, ensuring stable and continuous operation.
Q: Does the module include overload protection? A: Yes, it features integrated protection against overvoltage, overload, and short-circuit conditions.
Q: Is the module suitable for harsh environments? A: Yes, it is rated for -40°C to +70°C operation and meets ISA-S71.04 Class G3 airborne contaminant standards.
