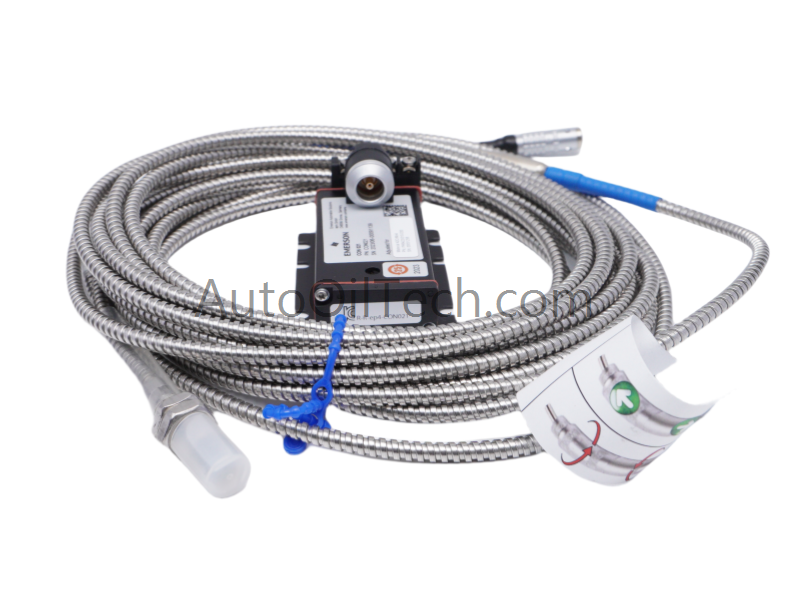

Emerson EPRO PR6423/013‑110 Eddy Current Sensor

Description:

Emerson EPRO PR6423/013‑110 Eddy Current Sensor delivers precise non‑contact shaft displacement and vibration monitoring, engineered for turbomachinery reliability.

Specifications:

• Manufacturer: Emerson (EPRO)

• Model: PR6423/013‑110

• Type: Non‑contact Eddy Current Sensor

• Measurement Range: 2 mm (80 mils)

• Initial Air Gap: 0.5 mm (20 mils)

• Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ±5% (0–45 °C)

• Deviation (DSL): ±0.025 mm (±1 mil) within 0–45 °C

• Minimum Shaft Diameter: 25 mm (0.79”)

• Target Material: Ferromagnetic steel (42CrMo4 / AISI 4140 standard)

• Protection Class: IP66 (IEC 60529)

• Operating Temperature: –35 °C to +180 °C (sensor incl. cable)

• Output Frequency: 30 kHz

• Weight: Approx. 0.26 Kg

• Interface Module: Compatible with CON021 signal converter

Features:

• Non‑Contact Measurement: Eliminates wear, extending service life

• High Accuracy: Detects micro‑displacements for precise shaft monitoring

• Robust Design: IP66 protection ensures durability in harsh environments

• Wide Application: Suitable for turbines, compressors, pumps, gearboxes, and fans

• Integration Ready: Works seamlessly with CON021 interface module

• Predictive Maintenance: Enables early detection of mechanical issues, reducing downtime
