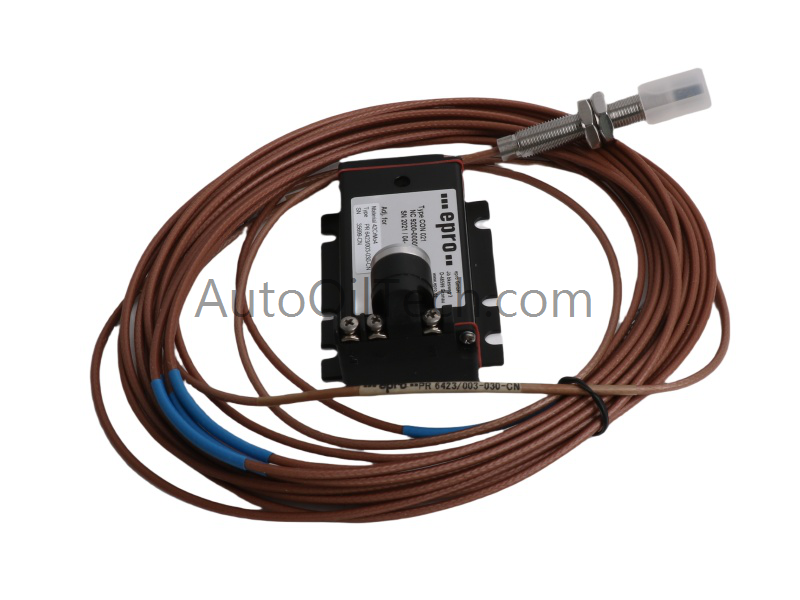

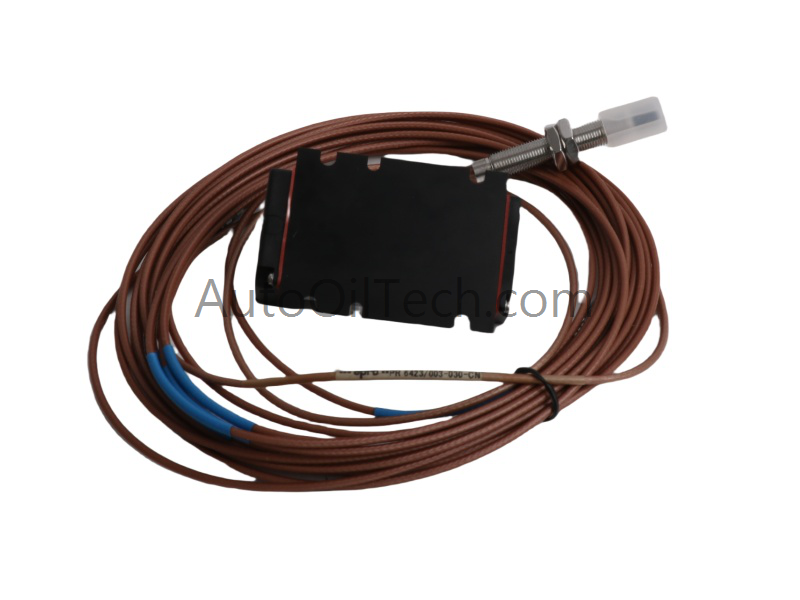

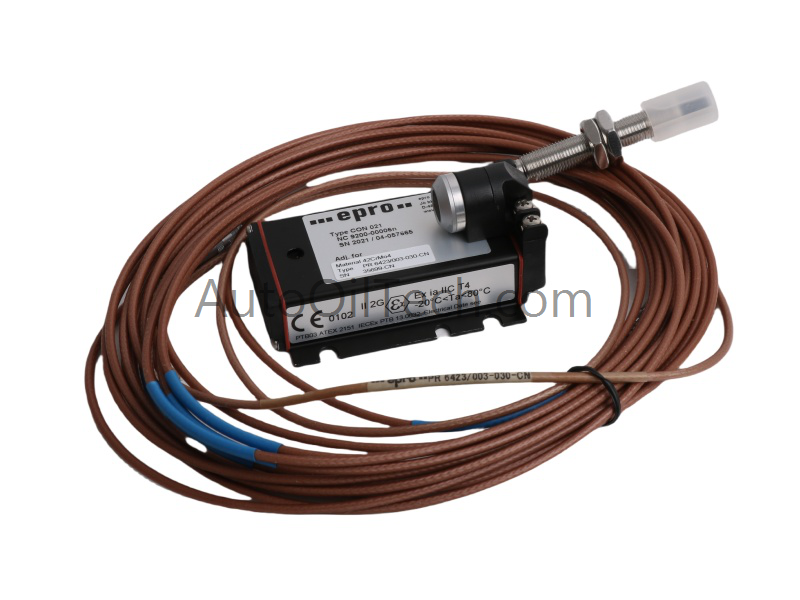

Emerson Epro CON041+PR6423/002-030 Eddy Current Signal Converter

Description:

The Emerson EPRO CON041+PR6423/002-030 Eddy Current Signal Converter is a non-contact proximity probe system designed for shaft displacement and vibration monitoring in critical rotating machinery. It integrates seamlessly with CON041 converter modules, ensuring reliable performance in harsh industrial environments.

Specifications:

• Model: CON041 + PR6423/002-030
• Sensor Type: Eddy Current Proximity Sensor with Signal Converter
• Probe Head Diameter: 8 mm
• Cable Length: 3 m (suffix /002-030)
• Measurement Range: ±2.0 mm dynamic, 0–1000 μm static
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Frequency Response: DC to 10 kHz
• Target Material: Ferromagnetic steel (42CrMo4 standard)
• Operating Temperature: -35 °C to +180 °C (sensor head)
• Storage Temperature: -40 °C to +200 °C
• Pressure Resistance: Up to 10,000 hPa (145 psi)
• Probe Tip Material: PPS (Polyphenylene sulfide)
• Housing Material: Stainless steel (SST)
• System Compatibility: Works with CON041 interface modules and Emerson monitoring systems

Features:

• Compact Cable Length: 3 m cable for installations close to monitoring equipment
• High Precision: Accurate shaft displacement and vibration monitoring
• Non-Contact Measurement: Eliminates mechanical wear, ensuring long service life
• Robust Construction: Stainless steel housing and PPS probe tip for durability
• Wide Application: Suitable for turbines, compressors, pumps, and other rotating equipment
• Predictive Maintenance: Enables early detection of mechanical faults to reduce downtime
• Seamless Integration: Designed for use with CON041 signal converter modules
