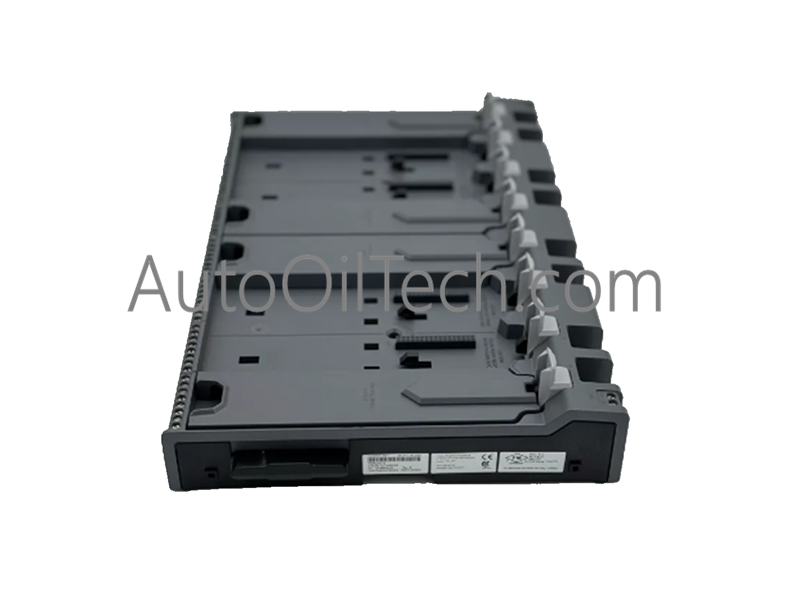

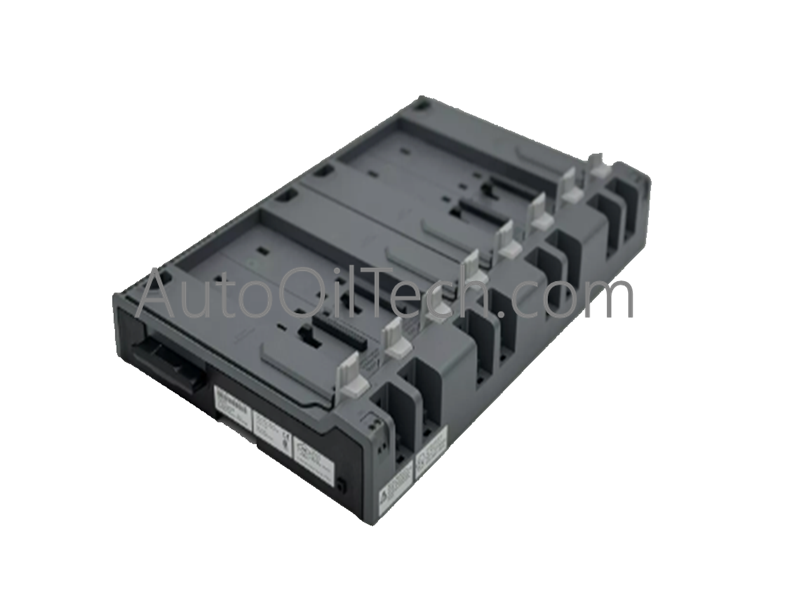

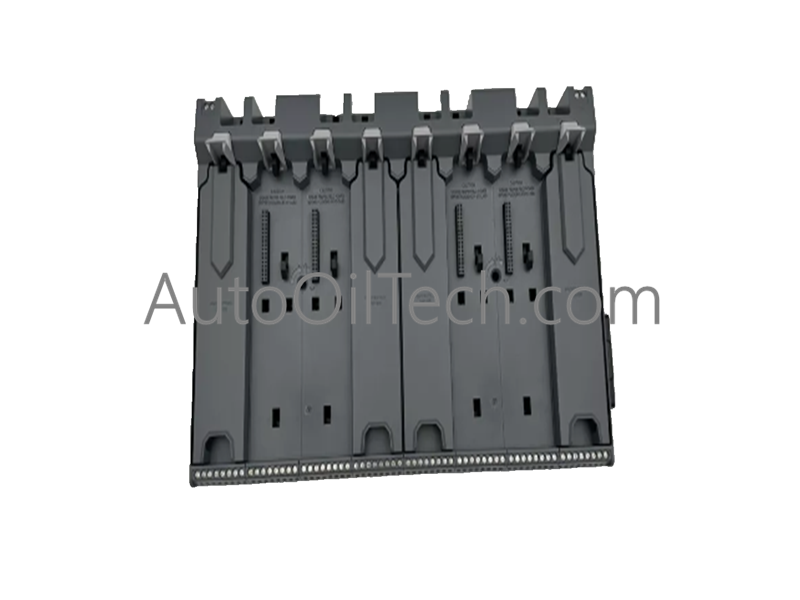

Emerson DeltaV KJ4005X1-BE1 8-Wide I/O Carrier

Product Description

The KJ4005X1-BE1 is an 8-wide I/O carrier from Emerson’s DeltaV S-Series, designed to house and connect multiple I/O modules in distributed control systems. It provides a robust backplane interface, ensuring reliable communication and power distribution across installed cards.

Technical Specifications

• Model / Part Number: KJ4005X1-BE1

• Type: 8-wide I/O carrier

• Capacity: Supports up to 8 DeltaV I/O modules

• Compatibility: DeltaV S-Series I/O cards

• Power Distribution: Provides regulated power to installed modules

• Communication: Integrated backplane for module-to-controller data transfer

• Form Factor: Rack-mount design for easy installation

• Environmental Ratings:

  • Operating Temperature: -40 °C to +70 °C

  • Humidity: 5–95% non-condensing

  • Shock: 10 g, ½ sinewave for 11 ms

  • Vibration: 1 mm peak-to-peak (5–16 Hz), 0.5 g (16–150 Hz)

• Weight: Approx. 2 kg

Application Scenarios

• Housing multiple I/O modules in DeltaV systems

• Industrial automation requiring high-density I/O integration

• Distributed control systems needing reliable backplane connectivity

FAQ

Q: How many modules can the KJ4005X1-BE1 support? A: It supports up to 8 DeltaV I/O modules.

Q: Is it compatible with all DeltaV cards? A: Yes, it works with S-Series analog, discrete, and specialty I/O cards.

Q: What is its role in the DeltaV system? A: It provides mechanical support, power distribution, and communication pathways for installed I/O modules.
