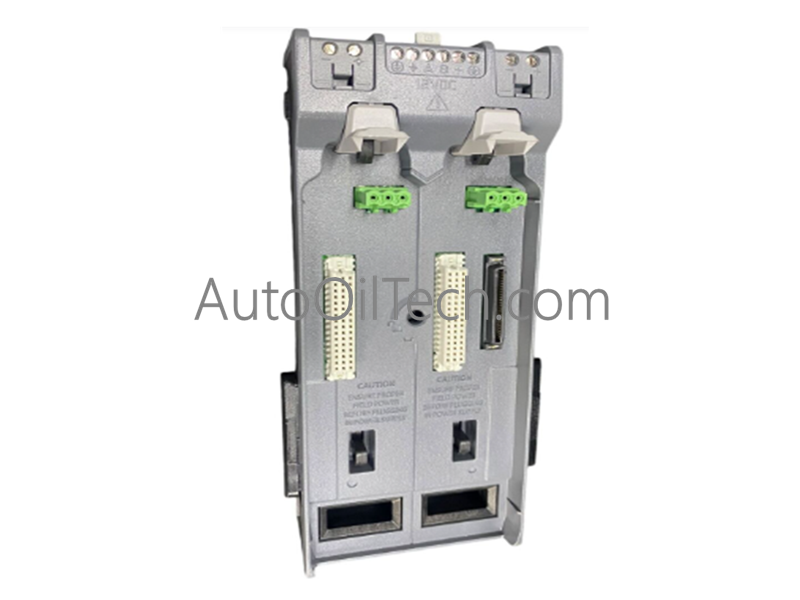

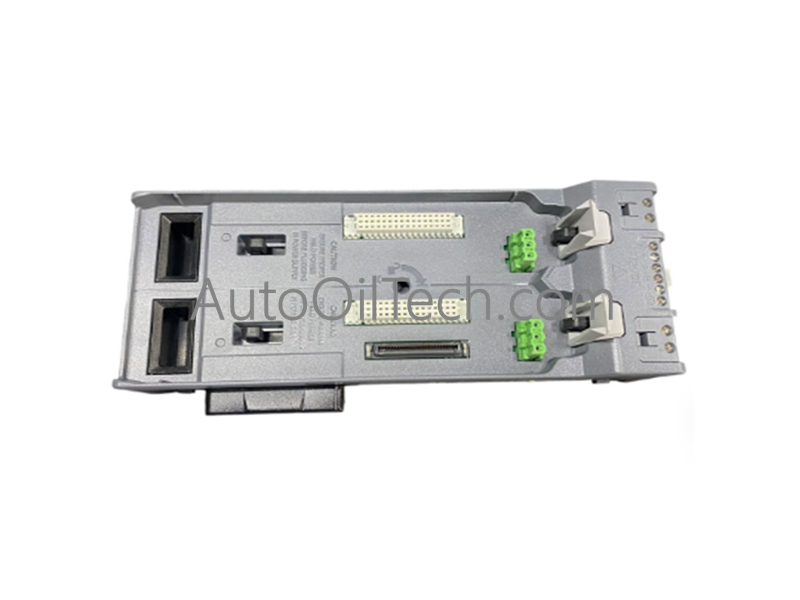

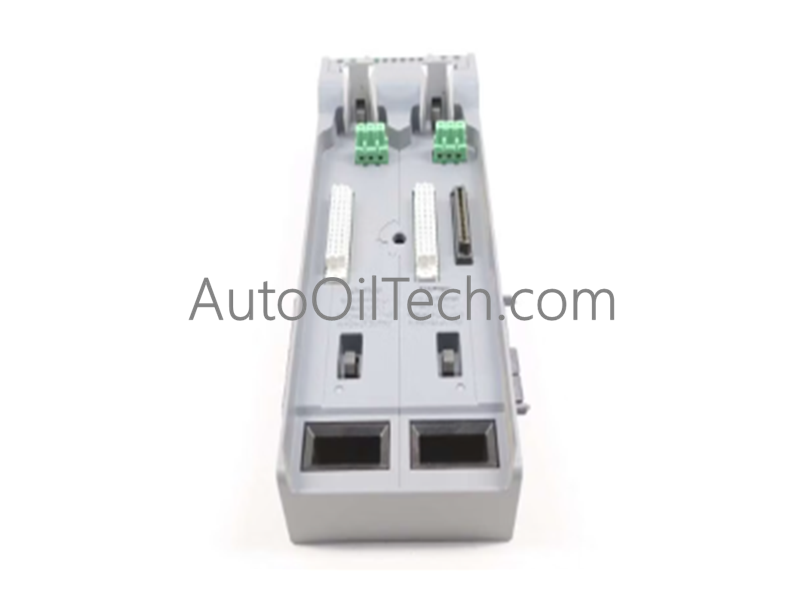

The Emerson DeltaV KJ4005X1-BA1 Power/Controller Carrier is part of the DeltaV S-Series system carriers. It provides mounting and electrical connections for DeltaV controllers and power supplies, enabling secure system integration and redundancy in distributed control systems.
Specifications
Model: KJ4005X1-BA1
Type: Power/Controller Carrier
System: DeltaV S-Series
Capacity: 2-wide carrier (supports controller + power supply modules)
Local Bus Power: 12 VDC at 15 A
Field Power (8-wide carrier): 30 VDC at 3 A per card
Operating Temperature: -40 °C to +70 °C
Shock Resistance: 10 g, ½ sinewave for 11 ms
Vibration Resistance: 1 mm peak-to-peak (2–13.2 Hz), 0.7 g (13.2–150 Hz)
Airborne Contaminants: ISA-S71.04 Class G3
Humidity: 5–95% non-condensing
Certifications: ATEX, IECEx, FM, UKEX, CSA, UL for hazardous areas (Class I, Div. 2, Zone 2)
Country of Origin: USA
Features
Dual Functionality: Houses both DeltaV controllers and power supplies.
Hazardous Area Certified: Approved for use in Zone 2 and Class I Div. 2 environments.
Robust Environmental Tolerance: Operates reliably under extreme temperatures, shock, vibration, and airborne contaminants.
Compact Design: 2-wide carrier saves cabinet space while maintaining system reliability.
Seamless Integration: Designed specifically for DeltaV S-Series distributed control systems.
Global Compliance: Meets multiple international safety and environmental standards.
