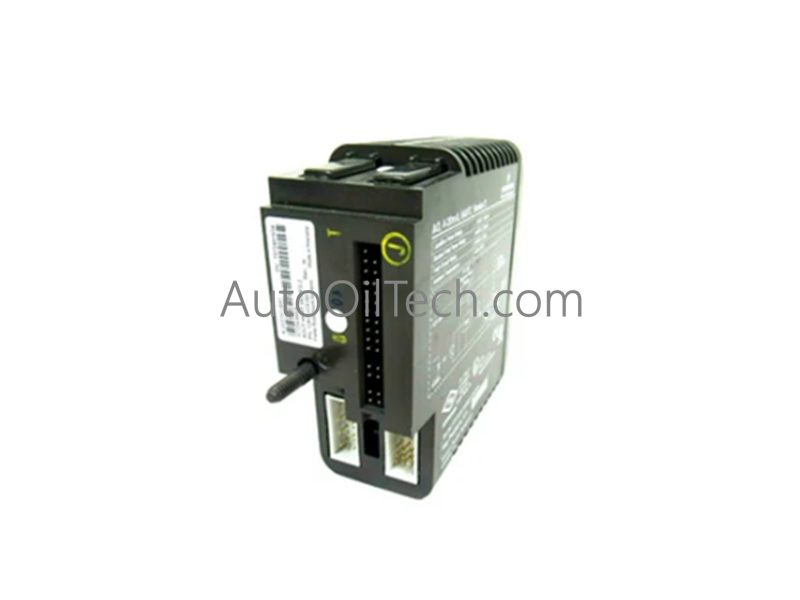

The Emerson DeltaV KJ3002X1-BB1, also cataloged as the KJ3002X1BB1 Analog Output Module, operates as a dedicated hardware component for 4-20 mA current loop drive execution within Emerson DeltaV DCS platforms.
Hardware Specifications
Parameter
Specification
Model
KJ3002X1-BB1
Brand
Emerson DeltaV
Origin
USA
Weight
0.35 lb
Dimensions
4.1 x 5.2 x 1.2 in
Operating Temp
0 to 60 deg C
Power Consumption
3.5 W
Output Signal Range
4-20 mA
Output Channels
8 Channels
Auxiliary Voltage Rating
12-24 VAC / VDC
Loop Signal Type
Analog Output (AO)
HART Protocol Integration and Channel-to-Channel Isolation
4-20 mA HART Loop Protocol Execution: Channels generate precise 4-20 mA analog control signals to drive positioners, variable speed drives, and control valves with high dynamic accuracy.
Galvanic Isolation Layer: Features comprehensive channel-to-system galvanic isolation to suppress ground loops and isolate external electrical noise from internal backplane logic.
Loop Power Distribution: Interfaces with external 12-24 VAC/VDC auxiliary loop power to maintain full current drive across maximum specified field load impedances.
Frequently Asked Questions
Q: Does the KJ3002X1-BB1 support hot-swapping under live operating conditions?
A: Yes, the module supports Removal and Insertion Under Power (RIUP) on powered DeltaV carrier assemblies without affecting process execution on adjacent I/O cards.
Q: What power source is required to drive the output current loops?
A: Field loops require auxiliary power routed through the carrier terminal block, utilizing 12-24 VAC/VDC to energize the output driver circuitry.
Q: How does the module handle a loss of backplane communication?
A: Upon backplane communication failure, each channel reverts to its user-configured fail-safe state (Hold Last Value or Go to Fallback Value) to maintain system safety.
Field Installation Guidelines
Carrier Assembly Insertion: Align the module rails with the target slot on the DeltaV carrier and push firmly until the mechanical retention clips click into position.
Shield Grounding Protocols: Terminate individual twisted-pair shield wires directly to the carrier shield bar to maintain continuous low-impedance grounding to cabinet instrument earth.
Cabinet Cable Separation: Route 4-20 mA output signal wiring in dedicated low-voltage wire ducts separate from AC power and motor cabling to prevent EMI interference.
Terminal Screw Torque: Tighten terminal block wire retention screws to 0.5-0.6 Nm to maintain a gas-tight mechanical connection and prevent loose wire faults under vibration.
