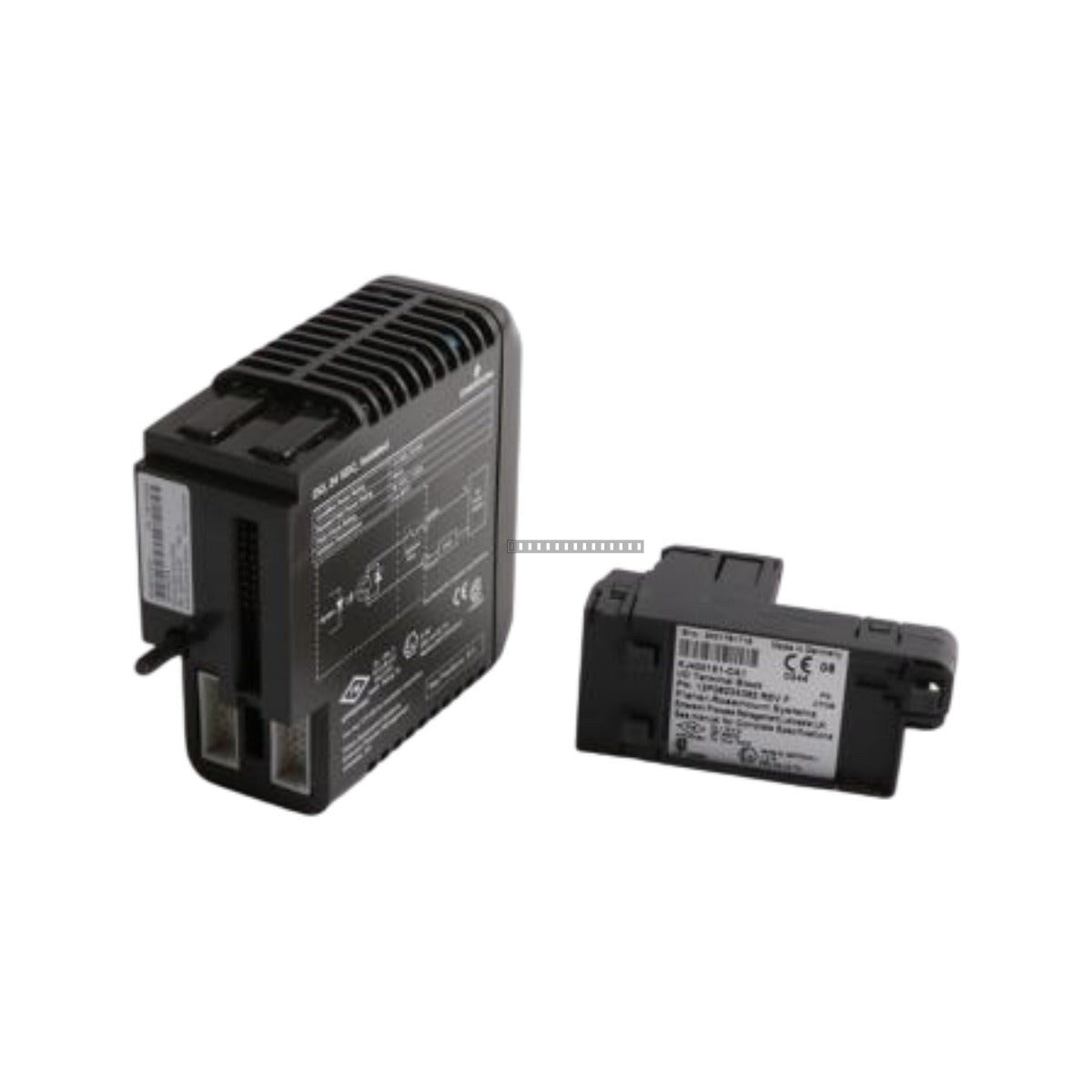

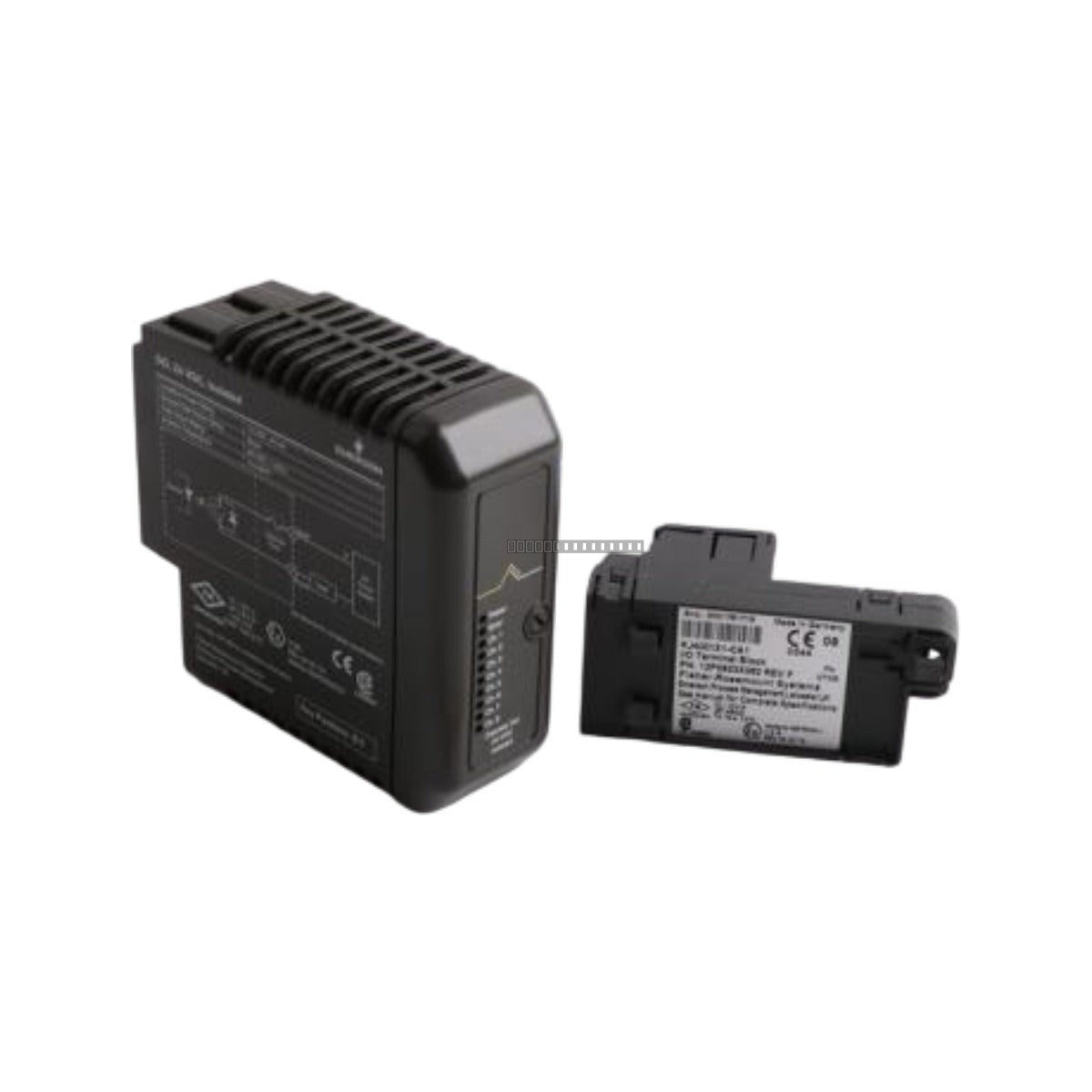

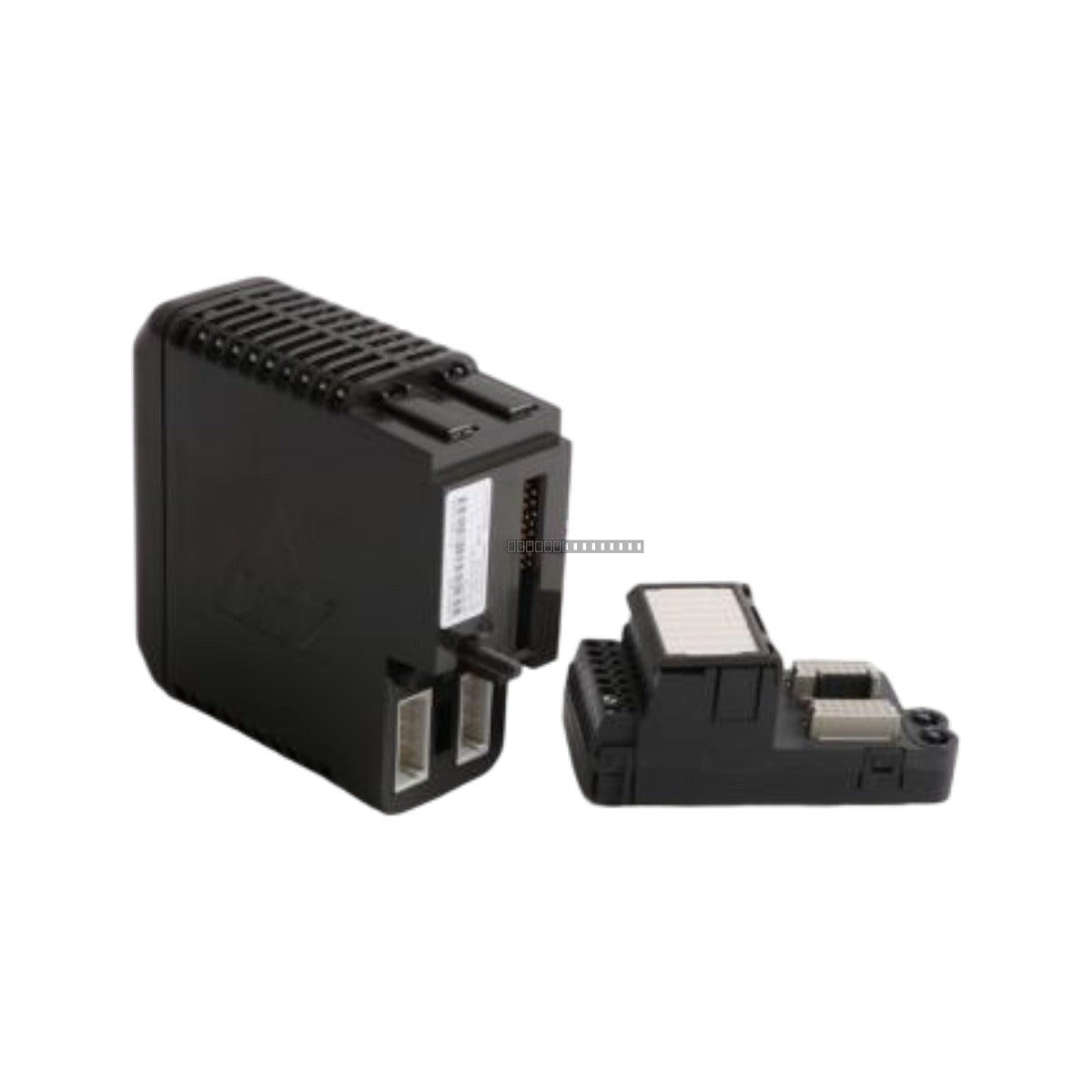

The Emerson DeltaV KJ3001X1-BG1 (12P0557X162) is a high-density digital output terminal block designed for the DeltaV distributed control system. This module provides 32 channels of discrete control, offering robust electrical isolation between field devices and the logic controller. It is engineered for critical process industries, including oil and gas refining, chemical processing, and power generation, where signal integrity and system reliability are essential. The module utilizes high-speed switching and integrated diagnostic capabilities to minimize downtime and prevent ground loop interference.
Features
32-channel isolated digital output configuration.
Galvanic isolation per output group to prevent cross-channel noise.
Supports driving solenoid valves, relays, and motor starters.
Redundant power bus support for continuous operation.
Hot-swappable design allows for replacement without interrupting backplane communication.
Compatible with both M-Series and S-Series DeltaV architectures.
Applications
This module is typically used in industrial automation environments requiring high-density discrete output control. Common applications include the actuation of field-mounted solenoid valves, interface relays for motor control centers, and general-purpose discrete signaling in DCS-managed process loops.
Technical Specifications
Brand
Emerson DeltaV
Model
KJ3001X1-BG1
Part Number
12P0557X162
Module Type
32-Channel Digital Output (Isolated)
Input Voltage
24 VDC
Isolation Rating
250 VAC
Current Rating
0.5 A per channel
Operating Temperature
-40 to 70 deg C
Storage Temperature
-40 to 85 deg C
Relative Humidity
5 to 95 percent (non-condensing)
Installation Guidelines
Ensure the DeltaV backplane is powered down before installation or removal, unless the system is specifically configured for hot-swapping in a non-hazardous area.
Verify that field wiring is properly shielded and grounded to minimize EMI/RFI interference.
Maintain adequate clearance around the module to ensure proper ventilation and cooling within the cabinet.
Use appropriate ESD protection when handling the module to prevent damage to internal electronic components.
Ensure all terminal connections are secure and properly torqued according to standard industrial wiring practices.
FAQ
Is this module compatible with all DeltaV series?
The KJ3001X1-BG1 is designed for compatibility with M-Series and S-Series DeltaV systems. Please verify your specific system revision and carrier type to ensure full compatibility.
Does this module support redundant power?
Yes, the module supports redundant power bus connections to ensure continued operation during localized power supply failures.
