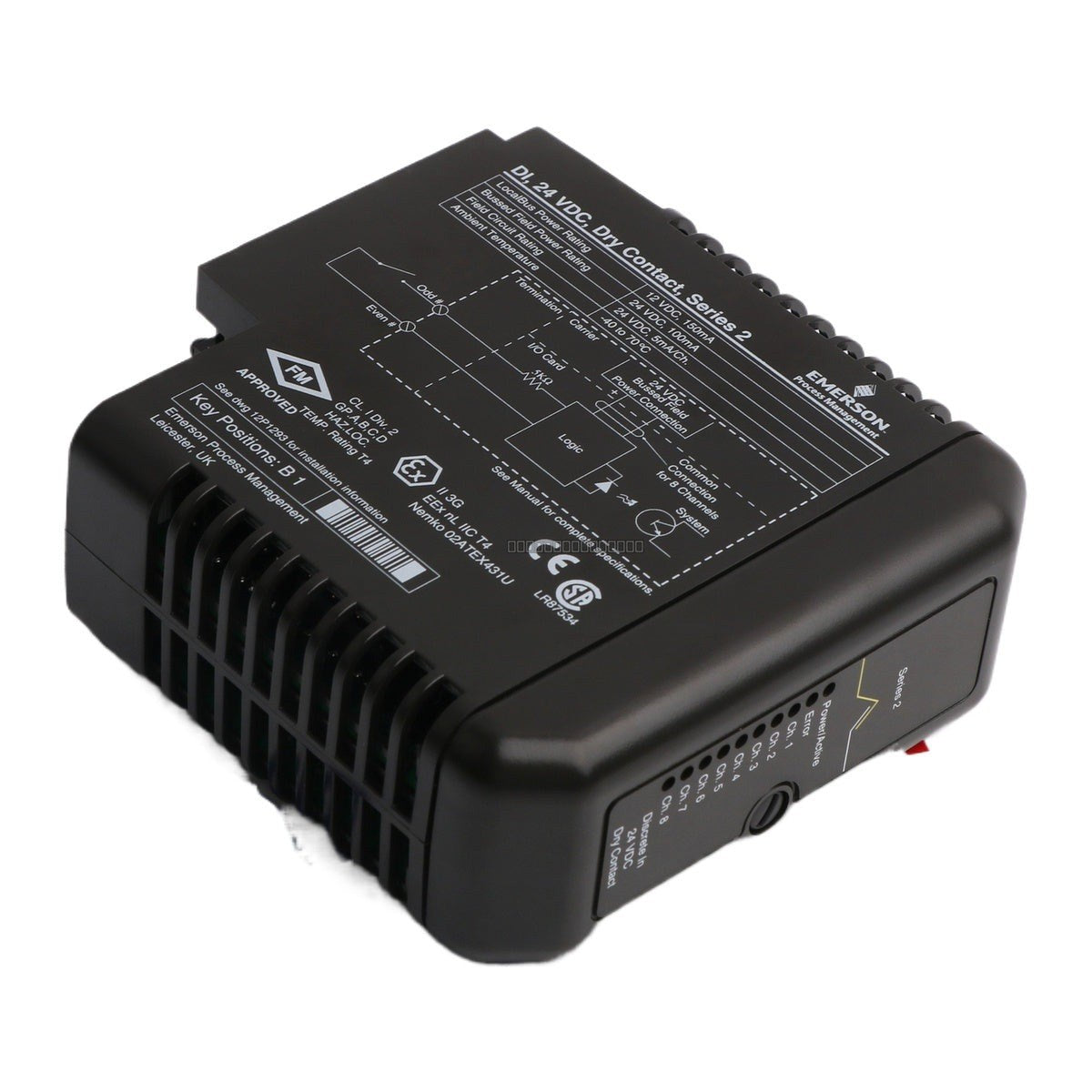

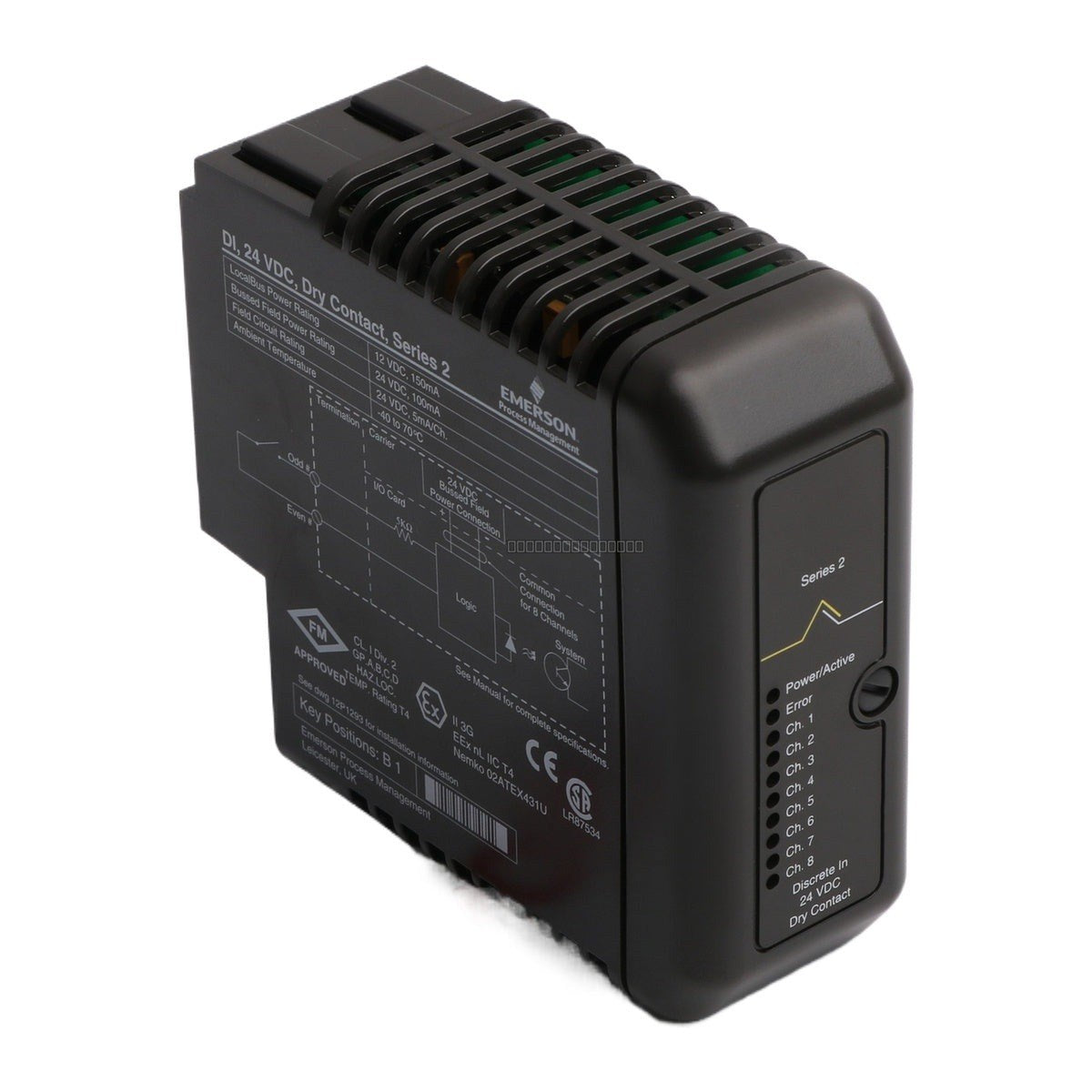

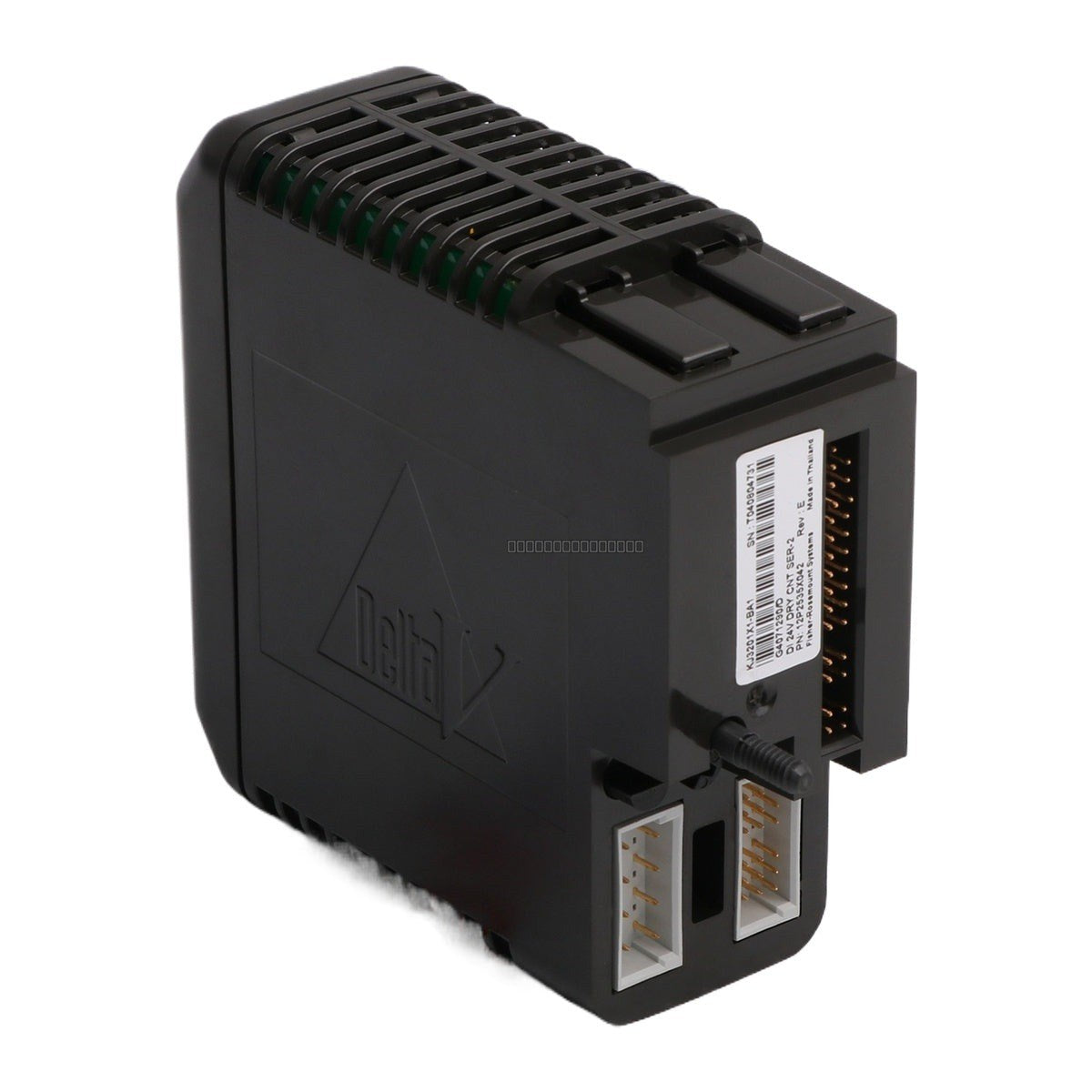

The Emerson 12P2535X042 (also identified by the spare model number KJ3201X1-BA1) is an 8-channel Dry Contact Input Module designed for the DeltaV distributed control system. This module provides a reliable interface for monitoring field-mounted dry contact switches and sensors, converting discrete input signals into digital data for processing within the DeltaV controller environment.
Features
8-channel configuration for high-density discrete input monitoring.
Designed specifically for dry contact input applications.
Operates on a 24 VDC power supply.
Engineered for seamless integration into the DeltaV I/O subsystem.
Robust construction suitable for industrial control environments.
Applications
This input module is typically utilized in process automation environments where monitoring the status of field switches, such as limit switches, emergency stop buttons, or relay contacts, is required. It is a standard component in DeltaV-based control architectures for chemical, oil and gas, and power generation facilities.
Technical Specifications
Product Model
12P2535X042
Spare Model
KJ3201X1-BA1
Manufacturer
Emerson
Module Type
Dry Contact Input Module
Channel Count
8 Channels
Operating Voltage
24 VDC
Installation Guidelines
Ensure the DeltaV system is powered down before inserting or removing the module from the I/O carrier.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the module is fully seated in the designated slot and that the locking mechanism is engaged.
Ensure that field wiring is routed according to site-specific standards, keeping signal cables separated from high-voltage power lines to minimize EMI.
Check that the terminal block is correctly wired for dry contact inputs to avoid improper signal interpretation.
FAQ
Is this module still in production?
No, the manufacturer has discontinued this specific model. We provide these units as spare parts to support existing legacy DeltaV installations.
What is the primary function of the KJ3201X1-BA1?
This module is designed to detect the open or closed state of field-mounted dry contacts, providing an 8-channel discrete input interface for the Emerson DeltaV control system.
