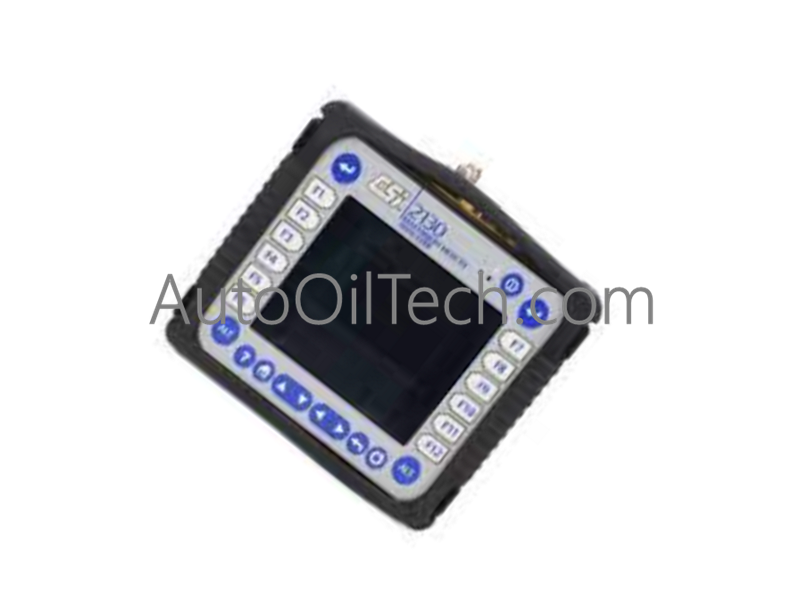

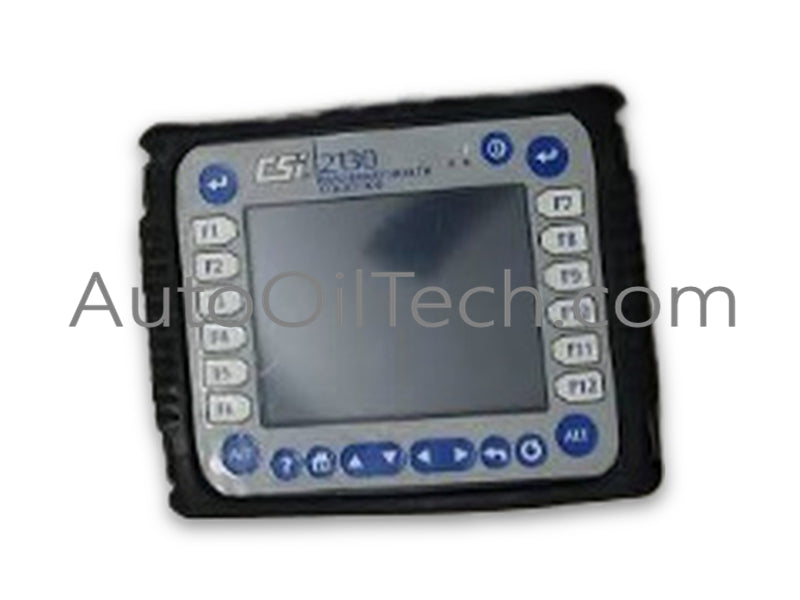

The Emerson CSI 2140, also cataloged as the AMS 2140 Machinery Health Analyzer, operates as a dedicated hardware component for four-channel vibration signal acquisition and dynamic diagnostic analysis within Emerson AMS machinery monitoring networks.
Hardware Specifications
Parameter
Specification
Model
CSI 2140 (AMS 2140)
Brand
Emerson
Origin
USA
Weight
1.25 kg
Dimensions
248 mm x 226 mm x 48 mm
Operating Temp
-10 to 50 deg C
Power Consumption
Re-chargeable Lithium-Ion Battery Pack
Channel Acquisition
4-Channel Synchronous with Phase
Field Connectivity
Wireless Wi-Fi / Bluetooth / USB
Diagnostic Technology
PeakVue Bearing & Gear Fault Detection
4-20 mA Loop Integration and Signal Waveform Conditioning
Engineered for field diagnostic route collection and advanced machinery troubleshooting, the CSI 2140 executes simultaneous four-channel raw waveform sampling, allowing complete cross-channel phase analysis across rotating equipment shafts. Integrated PeakVue signal processing filters out low-frequency structural vibration noise to isolate transient high-frequency stress waves generated by early-stage bearing race impacts and gearbox tooth degradation. The unit interfaces directly with 4-20 mA HART transmitters, triaxial accelerometers, and optical tachometer inputs via channel-isolated front panel connectors.
Frequently Asked Questions
Q: Can the CSI 2140 perform simultaneous four-channel acquisition without phase distortion across channels?
A: Yes, the unit utilizes synchronized analog-to-digital converters (ADCs) across all four input channels to ensure zero phase shift, allowing accurate cross-channel phase and triaxial vector analysis.
Q: How does PeakVue processing differ from standard acceleration envelope detection on the CSI 2140?
A: PeakVue samples high-frequency stress waves at peak amplitude levels without applying low-pass smoothing filters, preserving true stress-wave peak values to detect bearing and gear fatigue months before traditional spectral velocity thresholds are breached.
Field Installation Guidelines
Inspect all sensor input ports, BNC/M12 adapter interfaces, and dust covers for debris or moisture before deploying the analyzer in harsh plant environments.
Connect triaxial accelerometers or single-axis vibration sensors to channels A through D, ensuring signal cable connectors are locked firmly into position.
Align optical tachometer sensors perpendicular to reflective shaft tape at a distance of 50 mm to 300 mm for accurate shaft speed pulse tracking.
Export collected route data via Wi-Fi or high-speed USB interface to the AMS Device Manager software suite to maintain historical baseline databases.
