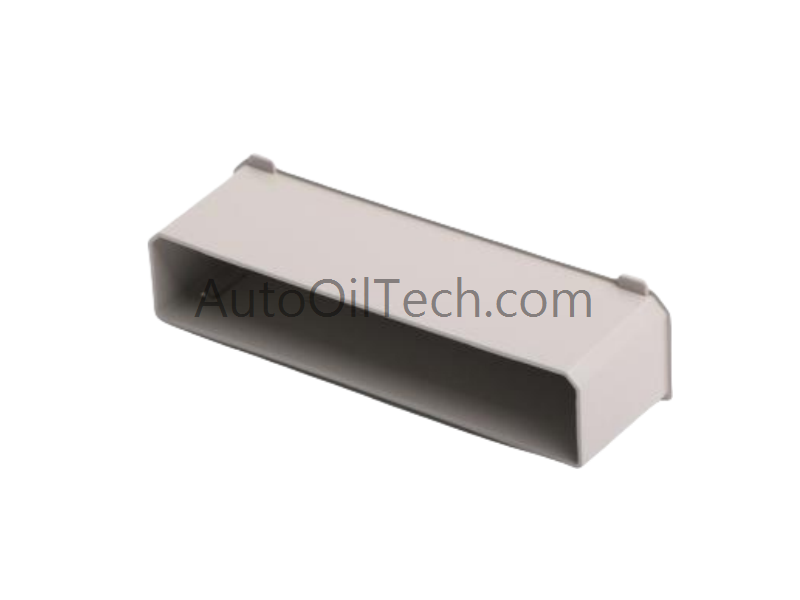

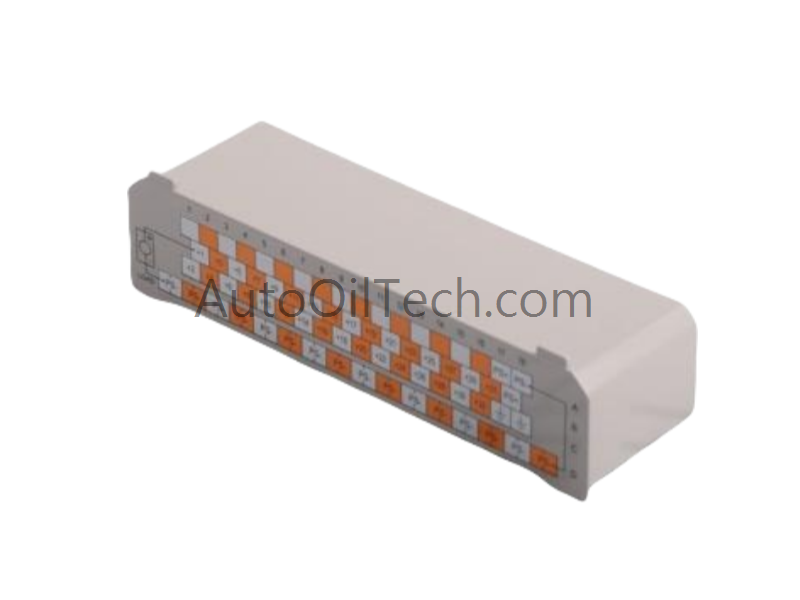

EMERSON 1X00691H01 Ovation I/O Card Pmod

Overview

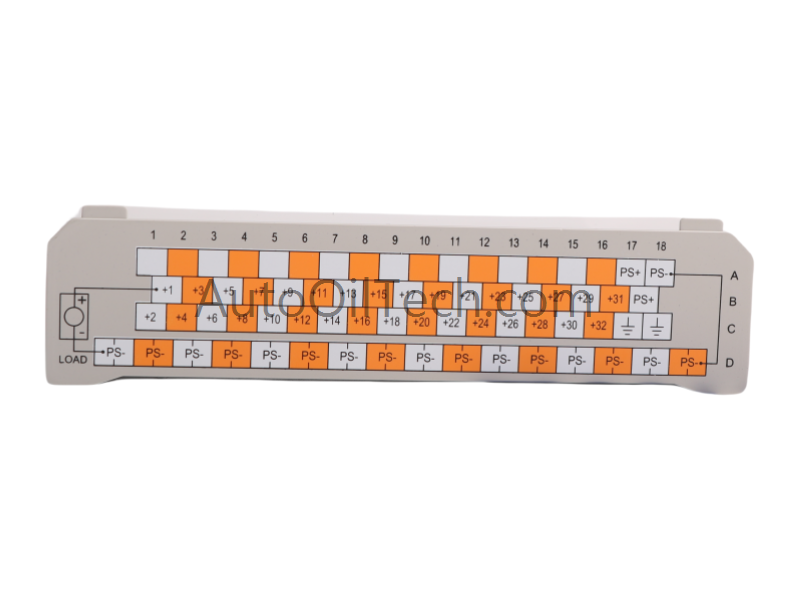

The Emerson Ovation I/O Card Pmod 1X00691H01, paired with Emod 5X00500G01, is designed for high-performance data acquisition and event monitoring in Ovation control systems. This compact module provides 32 digital input channels for Sequence of Events (SOE) recording, enabling precise monitoring and time stamping of critical process signals.

Key Features

• 32 Digital Inputs: Compact card with high channel density for space efficiency.

• Sequence of Events (SOE): Accurate time-stamped event capture for fault analysis.

• Voltage Rating: Supports 48 VDC single-ended current-sourcing inputs.

• Reliable Contact Inputs: Designed for monitoring switches, relays, and digital signals.

• Optimized for Ovation Systems: Ensures compatibility with Emerson’s Ovation DCS platform.

Technical Specifications

Applications

The 1X00691H01 I/O Card is widely used in:

• Power generation and utility monitoring systems.

• Critical industrial automation requiring SOE recording.

• Event-driven monitoring for improved diagnostics and reliability.
