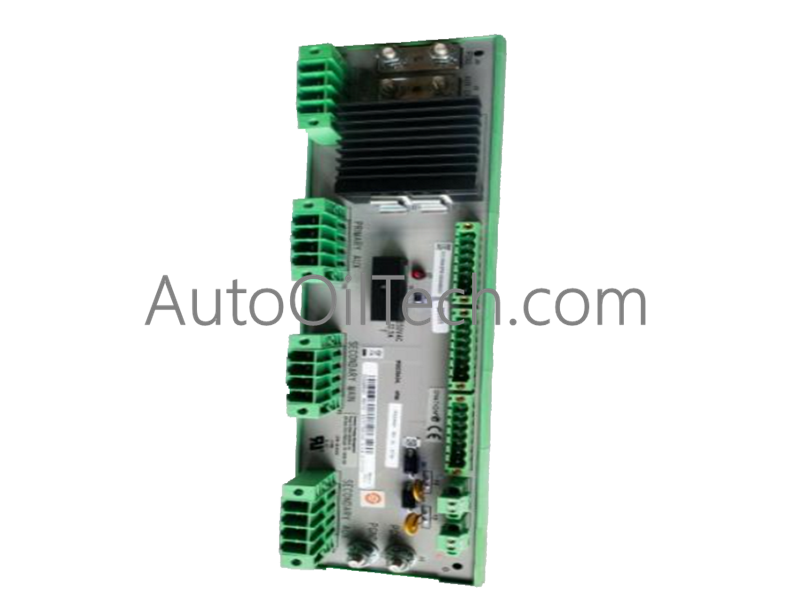

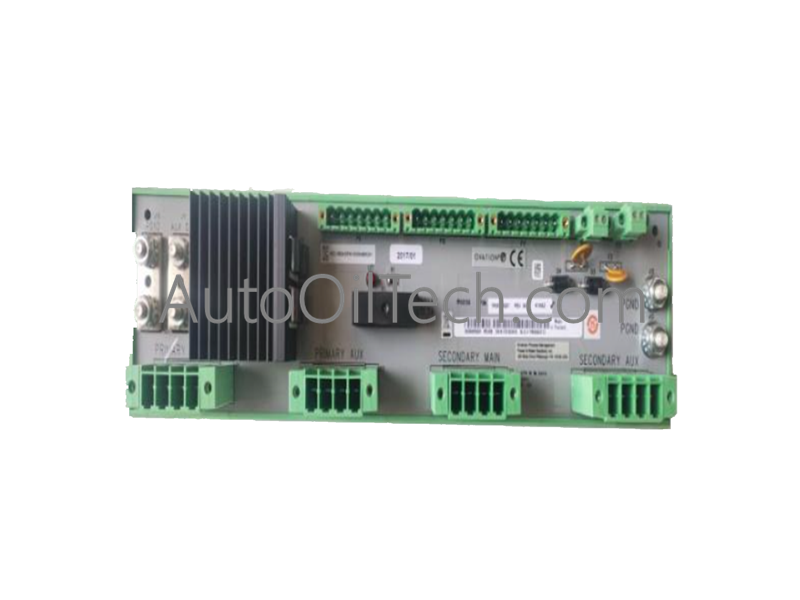

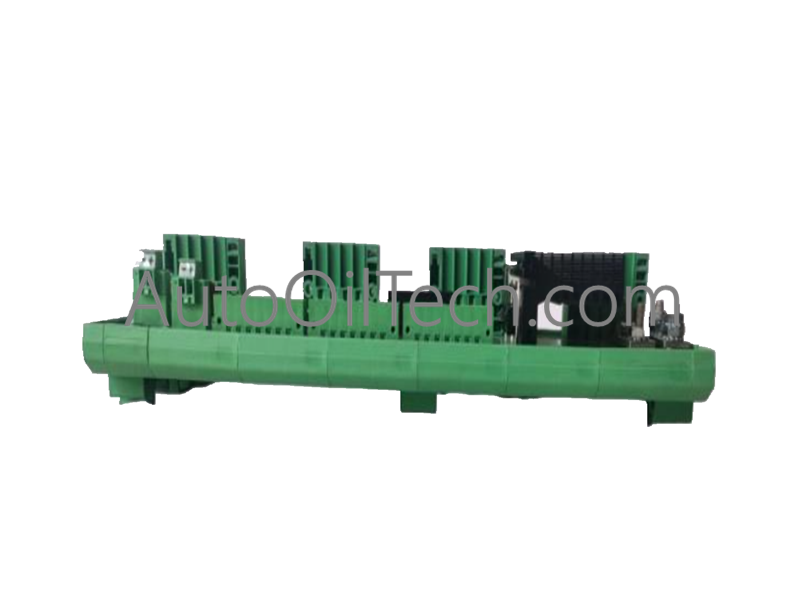

The Emerson 5X00489G01 Power Distribution Module is engineered for Ovation control systems, delivering stable and reliable 24 VDC power to multiple devices. With advanced diagnostic capabilities, redundancy support, and rugged environmental tolerance, it ensures uninterrupted operation in critical industrial environments.
Technical Specifications
Part Number: 5X00489G01
Series: Ovation DCS Power Supply/Distribution
Input Voltage: 24 VDC
Output Voltage: 24 VDC regulated
Output Current: Up to 2 A per channel (distribution version) / 10 A per channel (redundant supply version)
Channels: Supports up to 32 outputs (distribution) or 8 regulated outputs (supply variant)
Efficiency: >90% (switch-mode design)
Redundancy: N+1 hot-swappable capability with overcurrent/overvoltage protection
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5–95%, non-condensing
Airborne Contaminants: ISA-S71.04-1985 Class G3 compliant
Protection Rating: IP20
Dimensions: Approx. 250 × 150 × 40 mm
Shipping Weight: ~2 kg
Application Scenarios
Power distribution for Ovation DCS I/O modules and controllers
Industrial automation in manufacturing, energy management, and process control
Environments requiring redundant, hot-swappable power supplies for high availability
FAQ
Q: How many devices can this module support? A: Up to 32 devices with 24 VDC distribution.
Q: Does it support redundancy? A: Yes, the module offers N+1 redundancy with hot-swappable design for uninterrupted operation.
Q: What protections are included? A: Overcurrent, overvoltage, and diagnostic monitoring functions ensure system reliability.
