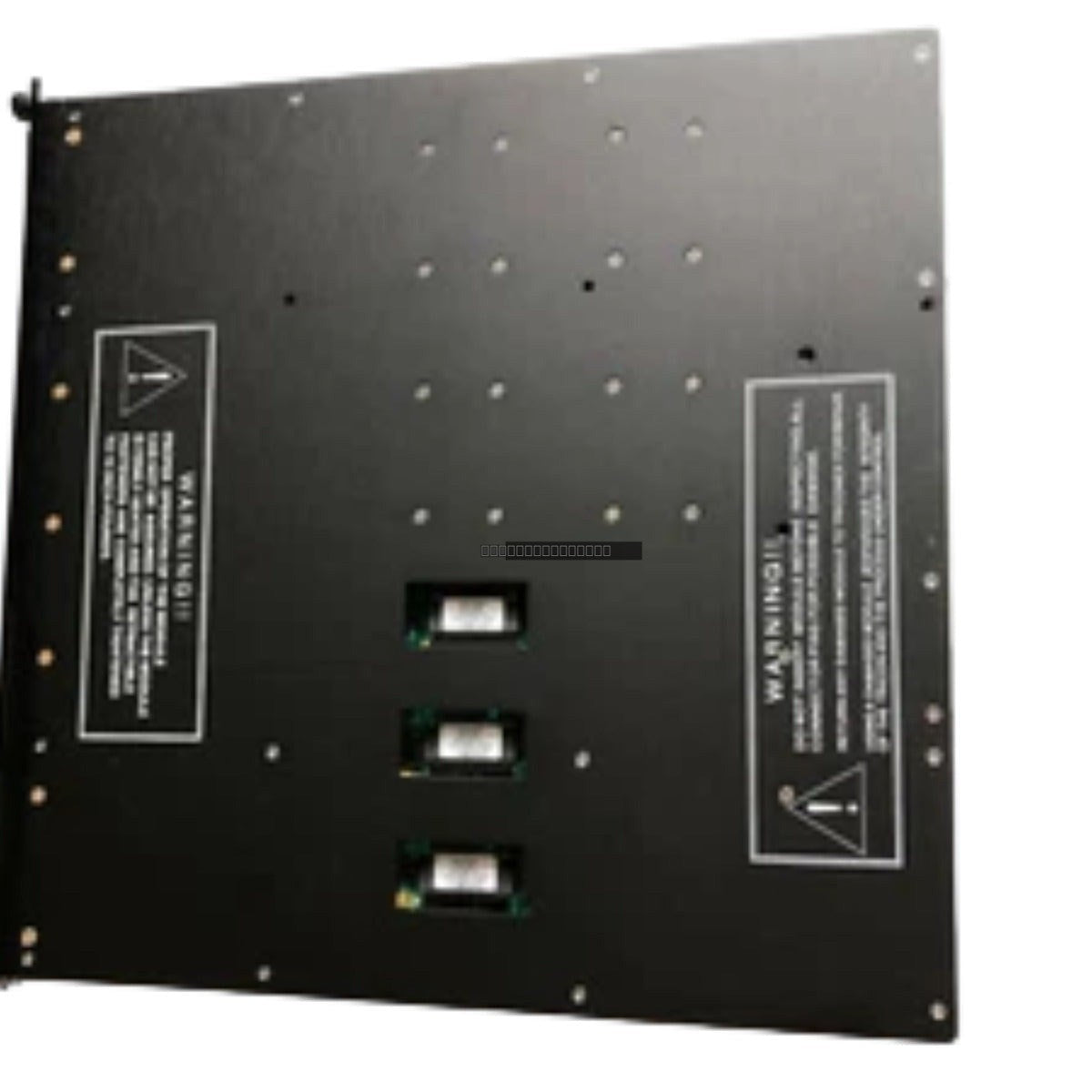

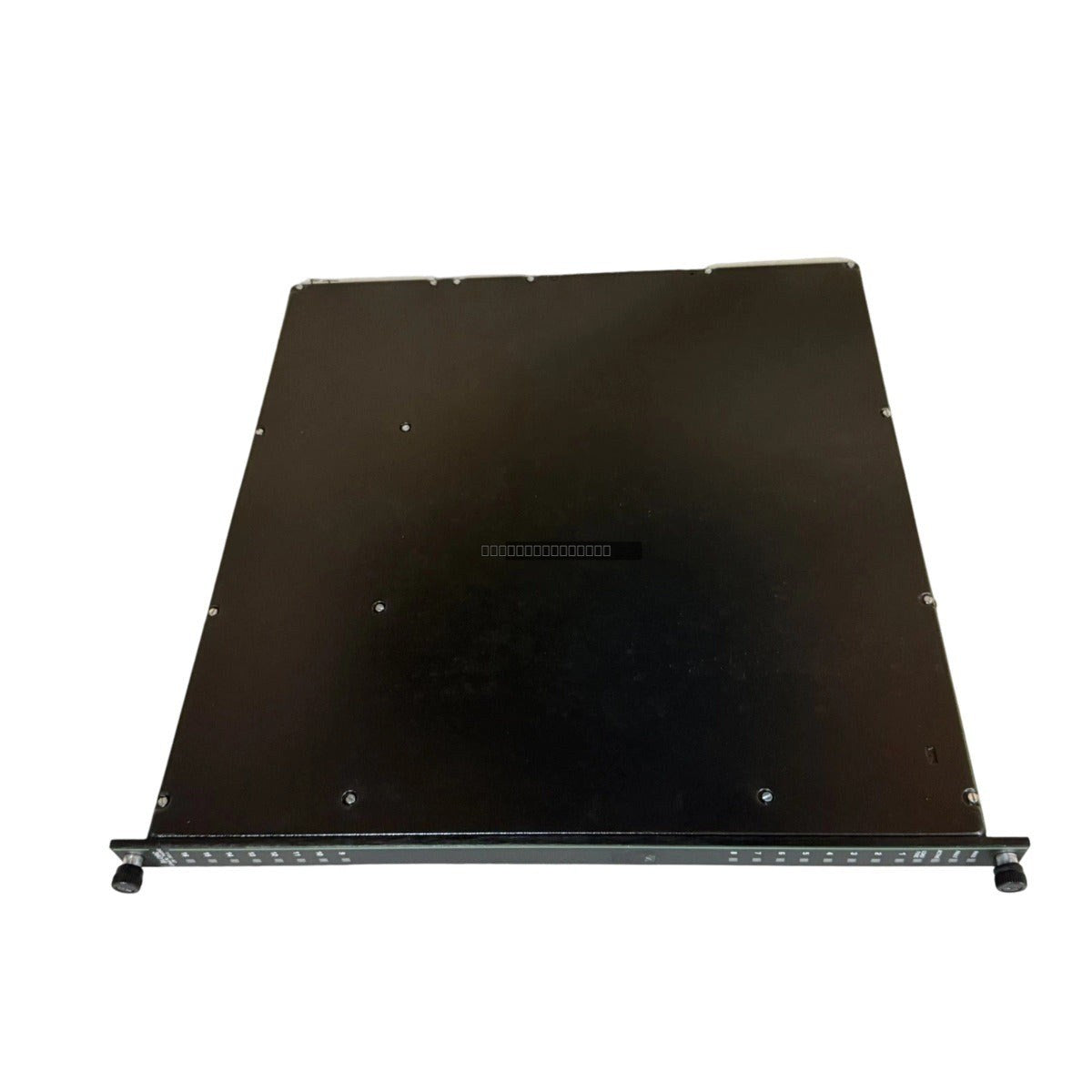

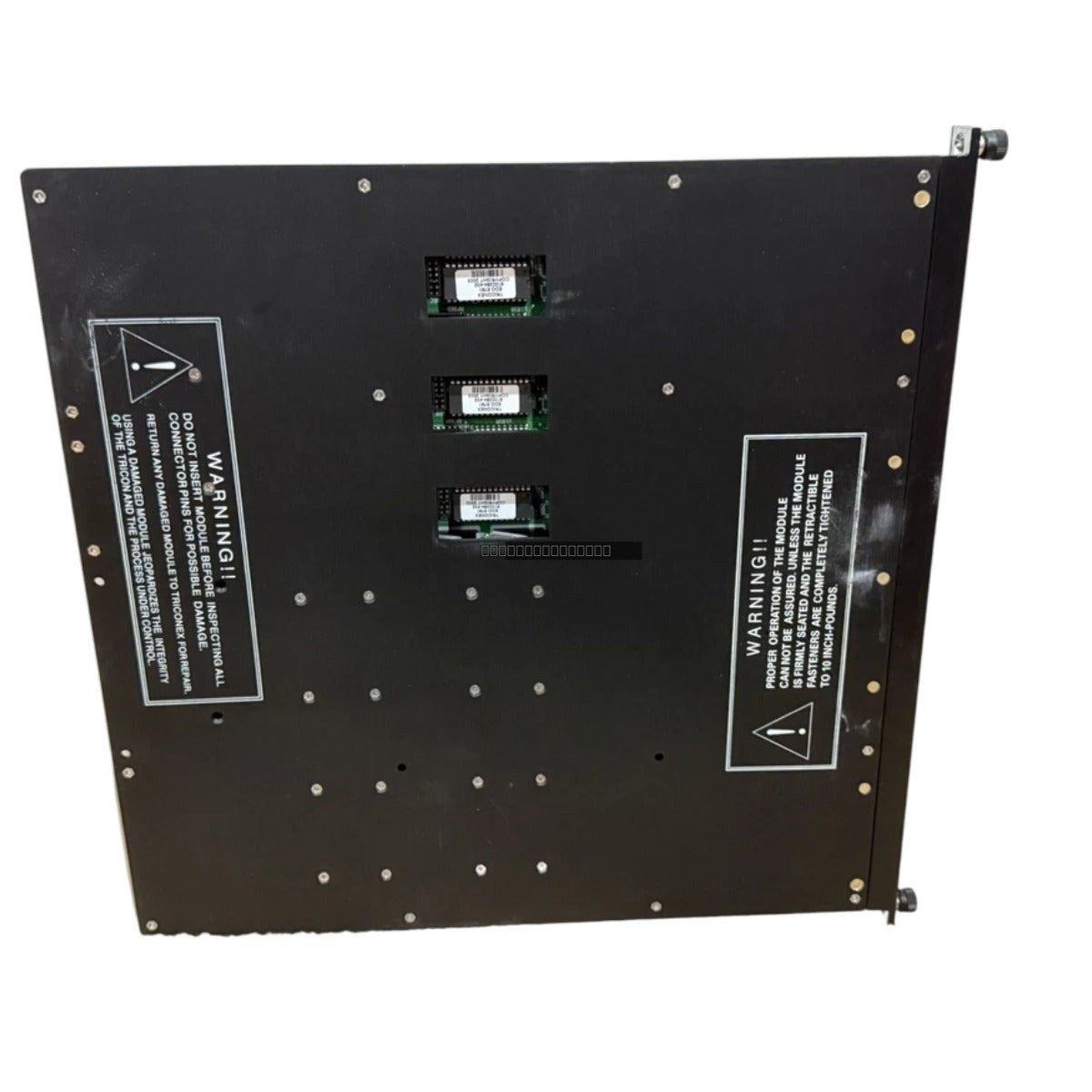

The Triconex 3601 is a high-integrity, TMR (Triple Modular Redundant) digital output module designed for use in safety-critical control environments. This module provides 16 non-commoned output channels capable of driving field devices such as solenoids, motor starters, and interlocks. By utilizing a TMR architecture, the 3601 ensures high availability and fault tolerance, making it suitable for demanding industrial applications including chemical processing, power generation, and oil and gas infrastructure.
Features
TMR Architecture: Employs a triple-redundant design with hardware voting to ensure reliable, fail-safe output execution.
Opto-Isolation: Each channel is opto-isolated to protect the system backplane from field-side surges and electrical transients.
Non-Commoned Channels: Provides independent return paths for each of the 16 channels, significantly reducing the risk of propagation of electrical faults between loops.
Visual Diagnostics: Equipped with front-panel status indicators for efficient troubleshooting and operational monitoring.
Applications
This module is specifically engineered for safety-instrumented systems (SIS) where continuous operation and high reliability are mandatory. Typical applications include:
Emergency Shutdown Systems (ESD)
Burner Management Systems (BMS)
Process Control Interlocks
Critical Alarm and Actuation Loops
Technical Specifications
Brand
Invensys Triconex
Model
3601
Output Points
16 (non-commoned)
Nominal Voltage
115 VAC
Operating Voltage
80 to 155 VAC
Frequency Range
47 to 63 Hz
Power Consumption
15 W max
Operating Temp
0 to 60 deg C
Installation Guidelines
Power Down: Always disconnect power from the backplane before inserting or removing the module to prevent electrical damage.
ESD Protection: Handle the module using standard electrostatic discharge (ESD) prevention measures, such as wearing a grounded wrist strap.
Wiring: Ensure field wiring is properly shielded and routed away from high-power AC lines to minimize electromagnetic interference (EMI).
Seating: Ensure the module is fully seated in the chassis slot and that the retaining screws are tightened to maintain a secure connection to the backplane.
FAQ
Is the 3601 module compatible with non-TMR systems? The 3601 is designed specifically for Triconex TMR safety systems; it is intended to operate as part of a redundant safety control architecture.
What is the primary function of the non-commoned channel design? The non-commoned architecture provides electrical isolation between individual output points, ensuring that a fault on one output loop does not affect the operation of other channels or the system backplane.
