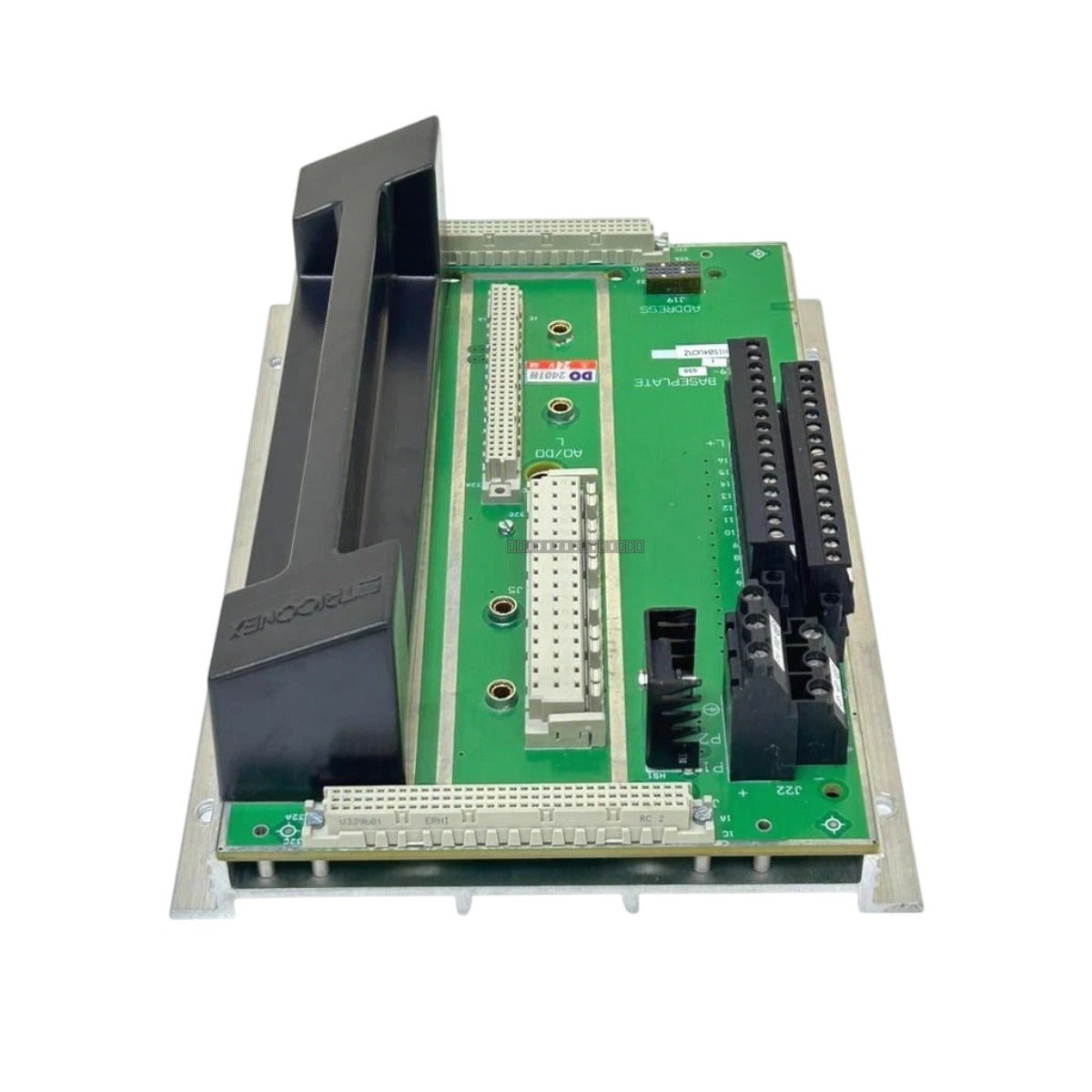

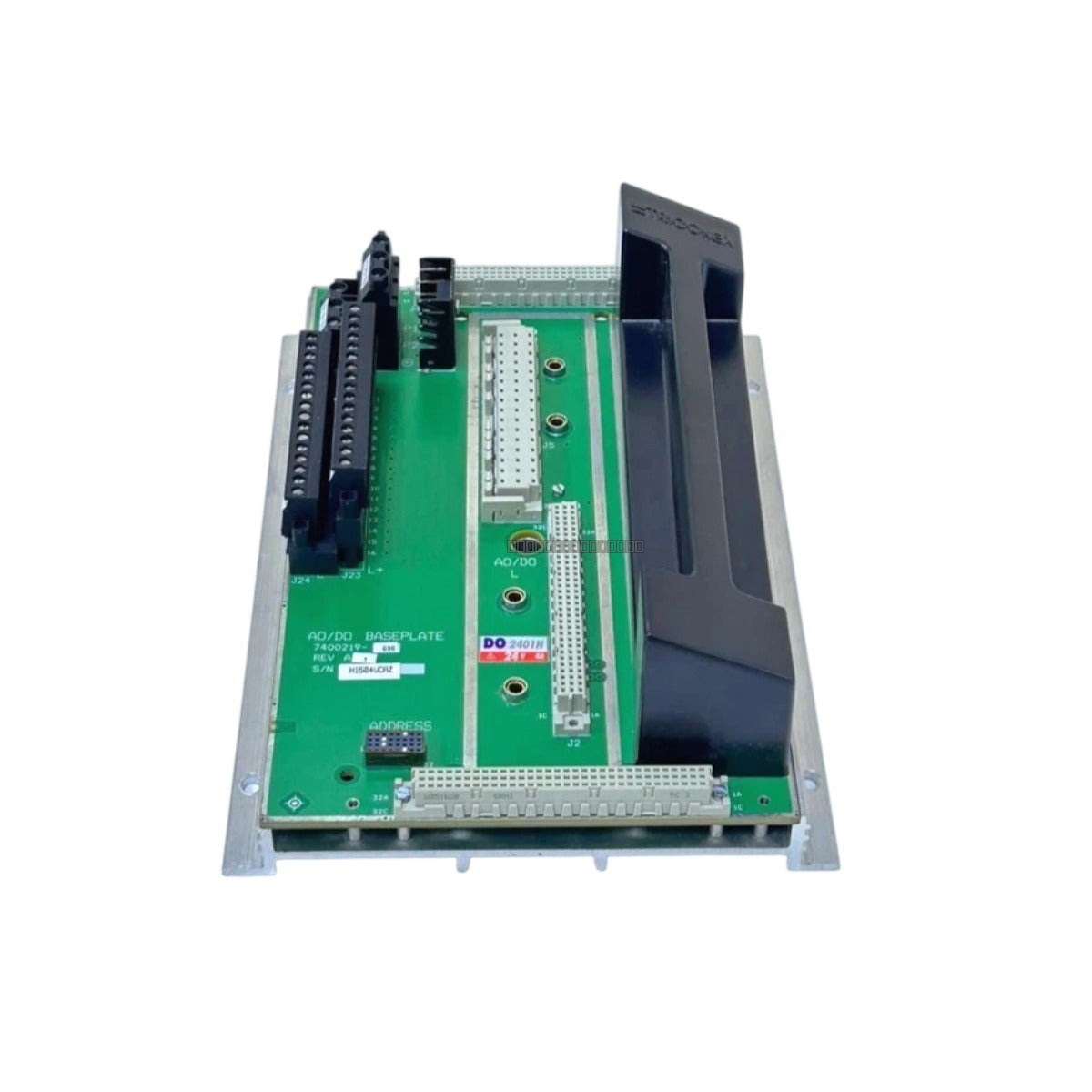

Triconex 2401 Digital Output Baseplate

Description

The Triconex 2401 digital output baseplate provides the rugged physical and electrical infrastructure required for fault-tolerant digital output modules within a Triple Modular Redundancy (TMR) architecture. Designed to interface directly with high-availability field actuators, solenoids, and indicators, this baseplate secures critical control loops in high-risk industrial environments such as oil refining, chemical processing, power generation, and mining operations. It guarantees continuous execution of emergency shutdown (ESD) commands and safety-critical interlocking functions. By maintaining triplicated power routing and isolated signal lines, it eliminates single points of failure, permits seamless online module replacement, and effectively decreases unscheduled system downtime.

Hardware Topology and Redundancy Integration

This backplane interface incorporates an advanced multi-layer circuit structure that routes triplicated control signals from the main processors to the designated digital output channels. The physical layout features dual-redundant 24 VDC power distribution paths, ensuring that a single power line loss will not disrupt field output operations. Passive components populate the baseplate to optimize long-term reliability and minimize thermal generation. Built-in mechanical keying prevents incorrect module insertion, while rugged grounding planes safeguard weak digital signals against high-voltage field transients and electromagnetic interference (EMI).

Features

• Supports 16-channel and 32-channel digital output modules.
• Triplicated TMR communication bus architecture for high-availability systems.
• Dual-redundant 24 VDC power distribution paths.
• Integrated mechanical keying to prevent improper module installation.
• Passive component design for high MTBF and low thermal dissipation.
• Ruggedized grounding planes for EMI protection and signal integrity.

Applications

The 2401 baseplate is designed for use in safety-critical Triconex TMR systems, including:

• Emergency Shutdown Systems (ESD).
• Fire and Gas (F&G) monitoring and control.
• Critical process interlocking in chemical and petrochemical plants.
• Turbine control and power generation safety systems.

Technical Specifications

Installation Guidelines

• Ensure the system is powered down before installing or removing any digital output modules from the baseplate.
• Verify that the baseplate is securely mounted to the chassis to ensure proper grounding contact.
• Use shielded cables for field I/O connections to minimize the impact of external EMI.
• Ensure proper ventilation within the cabinet to maintain the operating temperature below +60 deg C.
• Check mechanical keying alignment before inserting modules to prevent damage to the backplane pins.

FAQ

Is this baseplate compatible with all Triconex digital output modules?

The 2401 is designed for specific TMR digital output modules. Please verify your module's compatibility with the 2401 baseplate in your specific Triconex system documentation before installation.

Does this baseplate support online module replacement?

Yes, the 2401 baseplate is designed to support the hot-swapping of digital output modules, allowing for maintenance without interrupting the overall system process.
