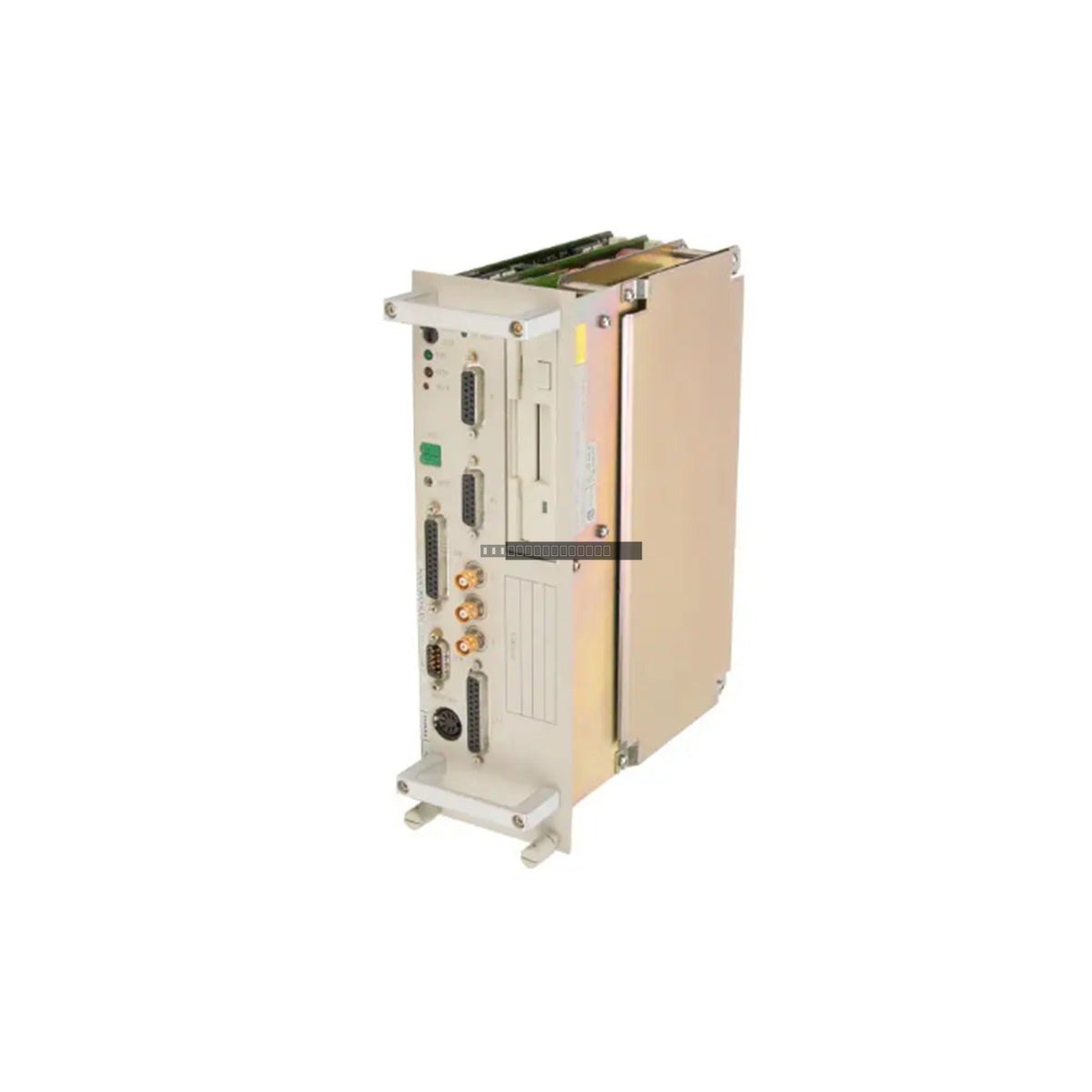

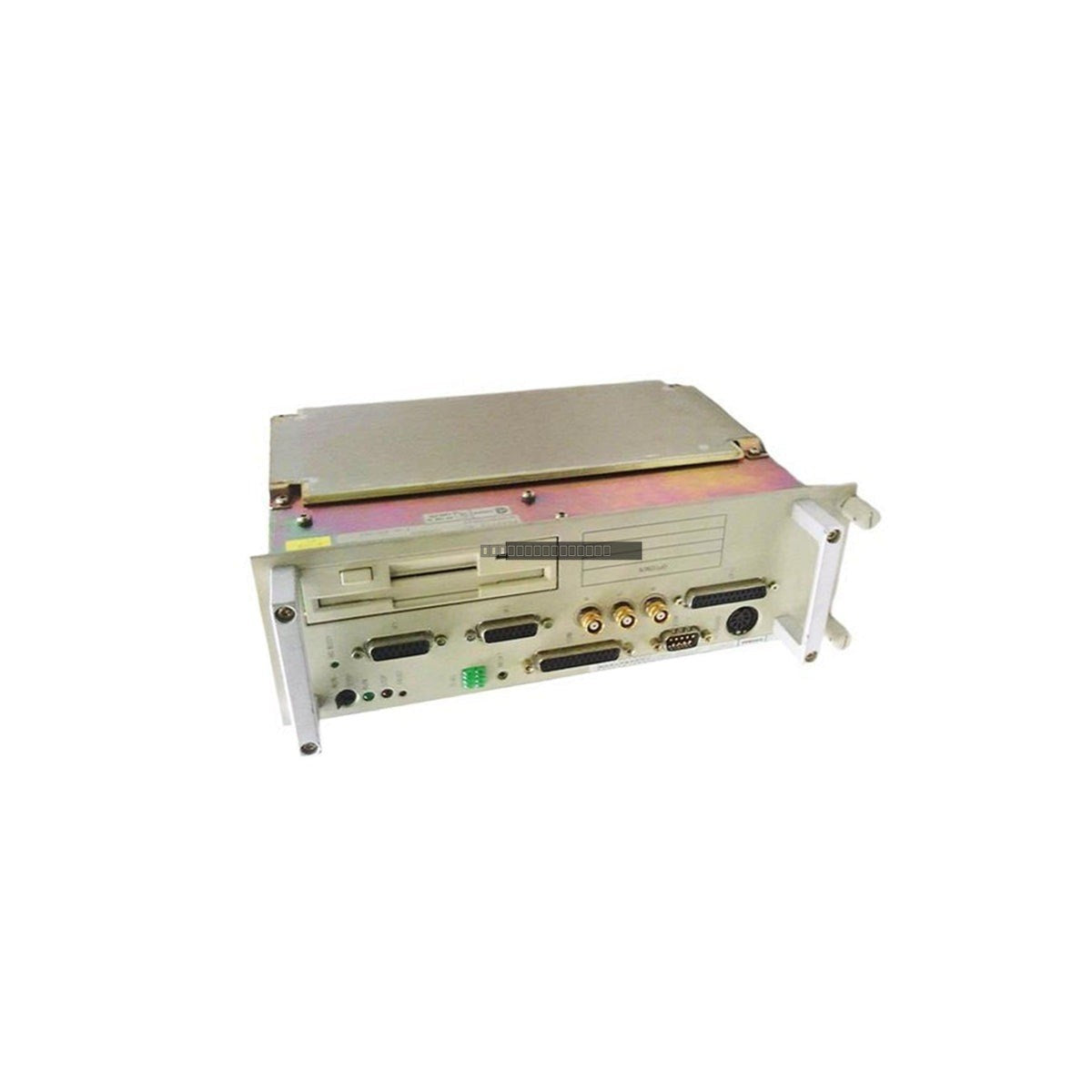

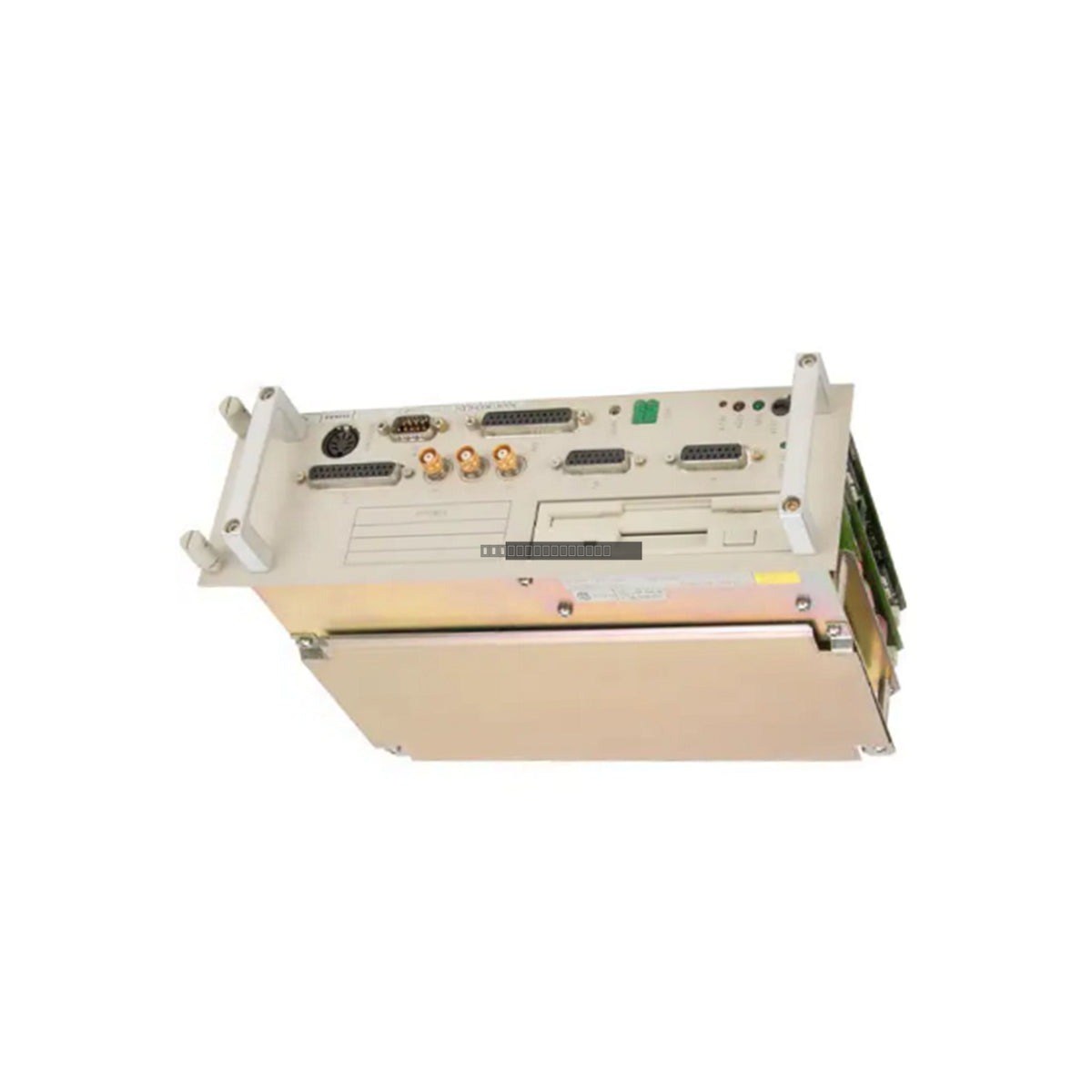

The Siemens Simatic S5 CP580 6ES5 580-0UA12 is a high-capacity central processing unit module designed for integration within Siemens Simatic S5-135 and S5-155 industrial control systems. This module provides essential processing power for large-scale automation environments, including petrochemical refineries, power generation facilities, and mining operations. As a core component of the S5 legacy architecture, it handles complex PLC calculation routines and coordinates multi-tasking operations via the high-speed backplane, ensuring reliable data flow and minimizing system latency.
Features
High-performance processing for S5-135 and S5-155 rack-based systems.
4 MB onboard memory capacity for extensive user programs and industrial data blocks.
Optimized for real-time cyclic program execution in multi-processor configurations.
Hardware architecture designed for direct memory map manipulation and sequential logic processing.
Internal shielding to mitigate high-frequency electrical noise and prevent data corruption.
Applications
This CPU module is primarily utilized in legacy industrial automation networks requiring robust, multi-tasking control. It is suitable for complex process control, large-scale sequential logic execution, and data management tasks within heavy industrial environments.
Technical Specifications
Model
6ES5 580-0UA12 (CP580)
System Compatibility
Siemens Simatic S5-135 / S5-155
Memory
4 MB
Coprocessor
None (Basic configuration)
Operating Temperature
0 to 60 deg C
Power Supply
5 VDC (via rack bus)
Installation Guidelines
Ensure the rack power is fully disconnected before inserting or removing the CP580 module.
Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal components.
Verify that the module is correctly seated in the designated S5 backplane slot to ensure proper bus communication.
Maintain adequate cabinet ventilation to keep operating temperatures within the specified 0 to 60 deg C range.
Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
FAQ
Does this module include a coprocessor?
No, the 6ES5 580-0UA12 is a basic hardware variant that does not include an integrated coprocessor, focusing instead on primary instruction cycle efficiency.
Is this module compatible with S5-115 systems?
This module is specifically engineered for the S5-135 and S5-155 series. Please consult your system documentation before attempting installation in other S5 series racks.
